Tired of slow or unreliable data connections in your IoT device? The LongSung EX510 5G NR/LTE Cellular Module gives you fast, stable mobile broadband in a tiny M.2 card. It solves the problem of dropped packets and limited coverage, so your device can stay online wherever you need it. Whether you are building a remote sensor, a vehicle tracker, or a smart gateway, this module lets you connect without a wired line.

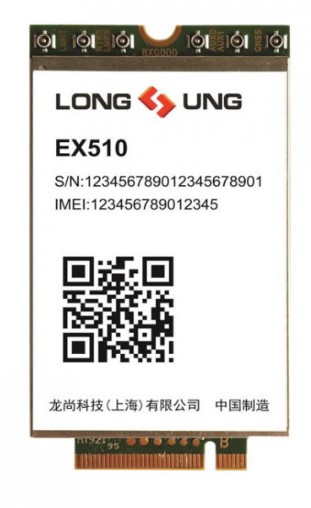

LongSung EX510 5G NR/LTE Cellular Module
Many developers struggle with modules that support only old 4G bands or need large power supplies. That limits where the device can be placed and raises battery costs. The EX510 supports Sub-6 G, LTE-TDD, LTE-FDD and many global bands, so you get coverage in most countries. It also works from -40 C to +85 C, so harsh environments are no longer a barrier. With AT command control and low power consumption, integration is quick and cheap.
Key Features
- Supports 5G bands N1-N79 for global coverage.
- LTE-FDD and LTE-TDD bands include B1-B71 for widespread 4G networks.
- Up to 300 Mbps uplink and 4 Gbps downlink on 5G.
- Class 3 (0.25 W) LTE/UMTS output power.
- Supply voltage 3.2 V to 4.4 V for flexible power design.
- M.2 3042-S3-B form factor, only 52 30 2.3 mm.
- USB 3.0 with SuperSpeed Gen2 and USB 2.0 high-speed ports.
- UART 4-wire, I2C, GPIO, PCM and PCIE interfaces.
- Voice support: VoNR, VoLTE and CSFB for voice over data.
- FOTA and NDIS support for remote updates and network driver integration.
Specifications:
| General Features |
|
| Output power |
Class 3 (0.25W) for LTE/UMTS |
| Control |
Via AT commands |
| Supply voltage range |
3.2V-4.4V |
| Dimensions |
52.0 × 30.0 × 2.3mm |
| GNSS |
GPS, GLONASS and BeiDou |
| Network |
Sub-6G/LTE-TDD/LTE-FDD/WCDMA |
| Operation Temperature |
-40°C to +85°C |
| MSL |
3 |
| Band Configuration |
|
| 5G Band |
N1/N2/N3/N5/N7/N8/N12/N20/N25/N28/N40/N41/N66/N71/N77/N78/N79 |
| LTE-FDD Band |
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 |
| LTE-TDD Band |
B34/B38/B39/B40/B41/B42/B43/B48 |
| LTE DL 4×4 MIMO |
B1/B2/B3/B4/B7/B25/B30/B38/B40/B41/B42/B43/B48/B66 |
| UMTS Band |
B1/B2/B3/B4/B5/B8 |
| Specifications for Data |
|
| 3GPP Release |
Release 15 |
| Network Mode |
SA / NSA |
| 5G |
Up to 4 Gbps DL, 300 Mbps UL |
| LTE-FDD |
Up to 2.4 Gbps DL, 200 Mbps UL |
| LTE-TDD |
Up to 2.4 Gbps DL, 200 Mbps UL |
| DC-HSPA+ |
Up to 42.2 Mbps DL, 5.76 Mbps UL |
| Transfer Mode |
Non transparent mode |
| FOTA |
Supported |
| NDIS |
Supported |
| Additional Features |
|
| Voice |
VoNR/VoLTE/CSFB |
| AGPS |
AGPS/SUPL2.0 |
| Dedicated GNSS |
GNSS_L1 and GNSS_L2/L5 |
| DTMF |
Supported |
| Interfaces |
|
| Form Factor |
M.2, TYPE 3042-S3-B |
| RF connector |
Supported |
| Power supply |
Supported |
| USB 3.0 |
With SS Gen2 |
| USB 2.0 |
High speed |
| UICC/SIM/UIM card interface |
3 V, 1.8 V |
| UART |
4-wire |
| PCM |
Supported |
| PCIE |
Supported |
| I2C |
Supported |
| GPIO |
Supported |
| Protocols |
|
| Protocols |
TCP/ UDP/ PPP/ FTP/ HTTP/ HTTPS/ SMTP/ SMTPS/ MMS/ FTPS/
NTP/ PING/ QMI/ SSL/ NITZ/ CMUX/ MQTT
|
