Tired of slow, unreliable connections that hold back your device? The LongSung EX530C 5G NR Sub-6 Module brings carrier-grade 5G speed to your hardware, letting you stream, upload, and communicate without lag. Engineers and developers need a compact, powerful modem that works in real-world networks, and this module fills that gap.

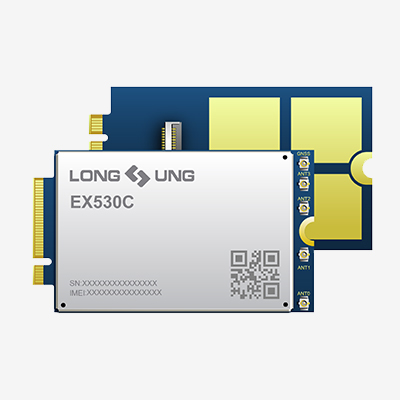

LongSung EX530C 5G NR Sub-6 Module
This module solves the common problem of limited bandwidth and network compatibility in embedded designs. When a device can only reach 4G LTE, users experience buffering video, delayed sensor data, and missed alerts. The LongSung EX530C supports both SA and NSA 5G Release 16, plus LTE-FDD, LTE-TDD, and HSPA+, so you get a single chip that adapts to any carrier. It delivers up to 2.8 Gbps downlink on Sub-6 5G and 1 Gbps on LTE, giving you the headroom to run AI video analytics, cloud sync, or massive IoT fleets without a bottleneck. The compact M.2 form factor fits into tight spaces, and the built-in GNSS support provides accurate positioning for navigation or asset tracking. With USB 3.1 and PCIe interfaces, integration is straightforward for developers on
Specifications
| Product Name |
EX530C 5G Module |
| Manufacturer |
LongSung |
| Chipset |
Qualcomm SDX62 |
| 5G NR |
|
| Category |
5G NR Sub-6 |
| 5G Mode |
SA / NSA (Release 16) |
| Network Support |
5G NR / LTE-FDD / LTE-TDD / HSPA+ |
| 4G LTE |
|
| LTE Support |
LTE-FDD / LTE-TDD |
| 3G |
|
| HSPA+ |
Supported |
| Data Speed |
|
| 5G Sub-6 SA |
2.1 Gbps DL / 900 Mbps UL |
| 5G Sub-6 NSA |
2.8 Gbps DL / 600 Mbps UL |
| LTE |
1 Gbps DL / 150 Mbps UL |
| HSPA+ |
42 Mbps DL / 5.76 Mbps UL |
| Location Services |
|
| GNSS |
GPS, GLONASS, BeiDou, Galileo, QZSS |
| Embedded Software |
|
| AT Commands |
Compatible with EX5X0 series |
| Interfaces |
|
| USB |
USB 3.1 |
| PCIe |
Supported |
| GPIO |
Supported |
| Hardware |
|
| Form Factor |
M.2 |
| Dimensions |
52 × 30 × 2.3 mm |
| High Throughput |
Supported |
| Application |
High-speed data communication and IoT applications |
