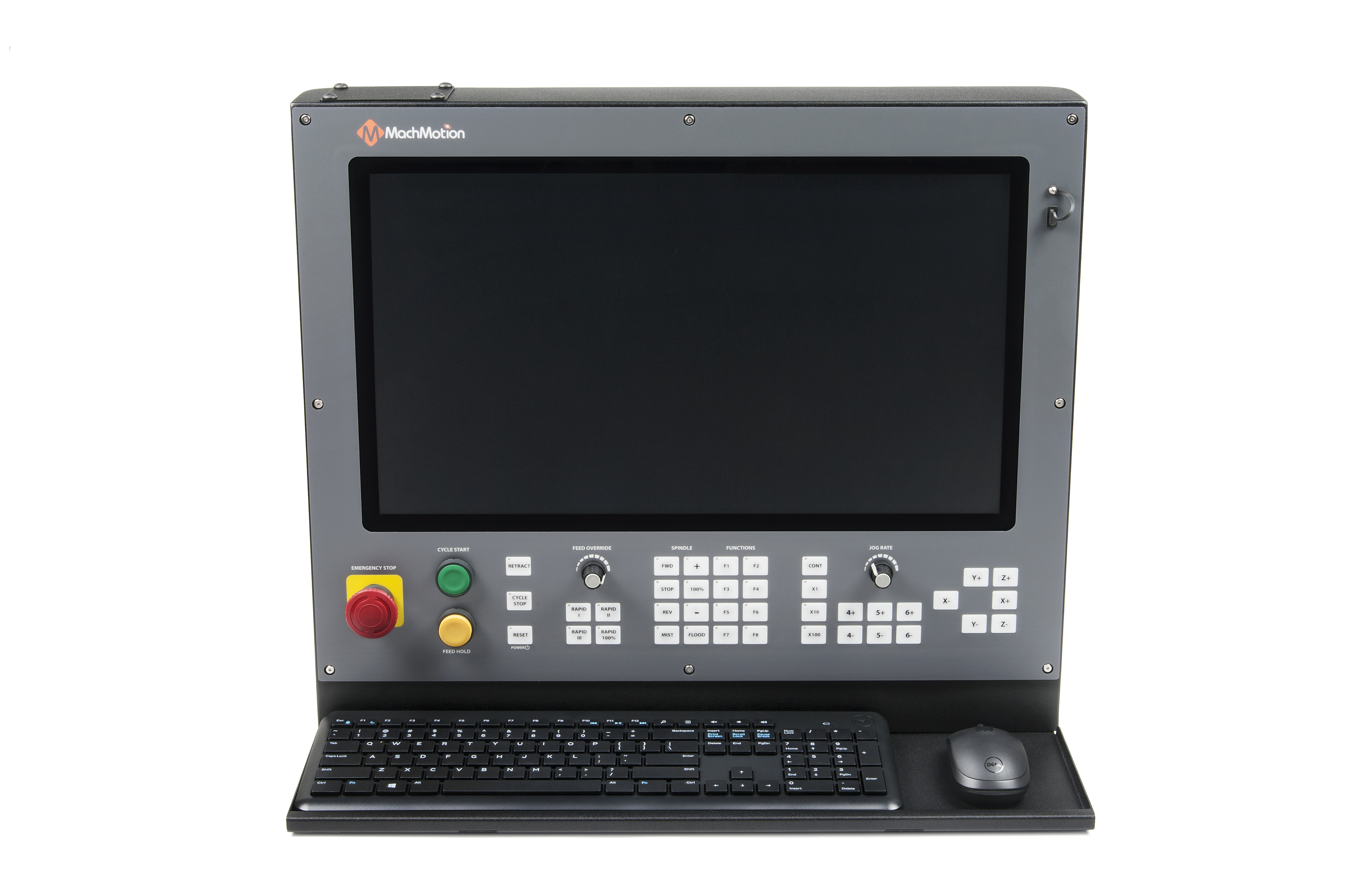

MachMotion 2000 Series Controller 21.5" touchscreen and Membrane Operator Panel

The 2000 series control is an iIndustrial PC control with an integrated 21.5" touch screen and membrane operator panel.

Connections:

Operator Panel:

1. Emergency Stop

Emergency Stop should be used in the event of an emergency and as a safety precaution any time the machine isn't running. Emergency Stop will not lose position of machine or require rehoming.

2. Cycle Control

Cycle Start can be used to start a G-Code file and is also used to start other commands such as MDI and GoTo Commands.

Feed Hold is used to pause motion during file run and will leave the spindle on. Cycle start will resume motion and continue file execution.

3. Cycle Cancels

Retract is an optional feature, currently in development and not operational. Check in with MachMotion for more information!

Cycle stop does a full cancel of the file, turns off the spindle and coolant, and puts the machine in idle.

Reset is used to clear alarms and set the machine back to default modals. These defaults can be changed in the Initialization Codes sections of the default control configuration. Reset also does a full cycle stop and rewinds the GCode file.

It is also the "Power" button. If the control is off, pressing Reset will power it on.

4. Feed Rate Overrides

The Feedrate Override knob will modify Feedrate Override percent and will affect any G01 feed rate moves. The feedrate percentage value is shown on the screen. If you are expecting motion and nothing is going, verify your feedrate is not set to 0%.

The 4 Rapid Override buttons will set the Rapid Override percent and will affect any G00 rapid rate moves. The percentages for each can be changed in the X15-[##] Operator Panel settings. You can access this from the Service section, then Maintenance tab, then Interface Config button:

5. Spindle Control

Spindle control buttons let you directly set the spindle forward, backwards, and stop. These are equivalent to calling M3, M4, and M5. You can set a default spindle speed value that will be set any time the system is initialized (reset pressed) by adding S### (where ### is the desired speed) in the Initialization Codes sections of the default control configuration.

Coolant buttons allow you to toggle the mist and flood outputs. These are equivalent to calling M7, M8, and M9

6. Function Buttons

These 8 buttons can be set up for user selected features.

7. Jog Selection

CONT will put all jogging into continues mode and will continue to jog as long as you hold the jog button.

X1, X10, and X100 are incremental jogs and will move the incremental distances configured in Config -> Control

8. Jog Group

These buttons are for jogging the machine. The 4,5,6 buttons can be assigned to any auxiliary axis you have. The jog rate knob can be used to adjust the speed of the jog while jogging the machine. There is not a percentage or display of this jog rate on the screen.
