Tired of guessing whether a machined part meets the required finish? The Mahr MarSurf M 310 Portable Surface Roughness Tester 6910265 4.3" Touch LCD gives you instant, reliable roughness data wherever you work. It replaces costly lab visits and eliminates the risk of rejected parts, saving you time and money. You also avoid the hassle of sending samples to a lab and waiting days for a report.

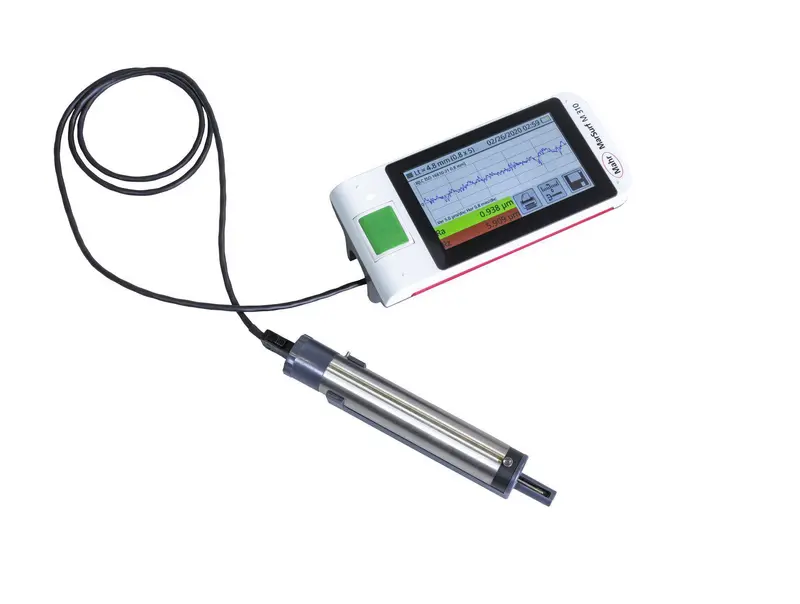

Mahr MarSurf M 310 Portable Surface Roughness Tester 6910265 4.3" Touch LCD
The main problem many technicians face is the lack of a quick, accurate way to measure surface texture on site. Without that information, they cannot verify compliance with ISO or customer specifications, leading to re-work and lost confidence. The Mahr MarSurf M 310 solves this by combining a tactile stylus probe with a 4.3-inch touchscreen, delivering over 30 roughness parameters in seconds. Its portable design and built-in battery let you move from machine to machine, while USB and SD interfaces make data export painless. The device also stores thousands of profiles, so you can compare new measurements with historic data at a glance.
Key Features
- Tactile skidded probe with 5 m tip radius.
- Measuring speed from 0.5 mm/s to 1 mm/s.
- Traversing length up to 15 mm.
- Selectable sampling lengths 1-16 mm.
- Automatic/manual cutoff lengths 0.25, 0.8, 2.5 mm.
- 4.3-inch TFT touchscreen with intuitive menu.
- Micro-USB, USB-A, and micro-SD card slots.
- Export formats: TXT, CSV, X3P, PDF.
- Lithium-ion battery (3.7 V, 11.6 Wh) for 1200+ readings.
Specifications
| General Information |
|
| Manufacturer |
Mahr |
| Product Name |
MarSurf M 310 |
| Art. No. |
6910265 |
| Product Type |
Mobile surface roughness measuring instrument |
| Measurement & Evaluation |
|
| Measurement Principle |
Tactile stylus method (skidded probe system) |
| Probe Tip Radius |
5 µm |
| Measuring Speed |
0.5 mm/s to 1 mm/s |
| Traversing Length |
up to 15 mm |
| Sampling Lengths |
1 to 16 selectable |
| Cutoff Lengths |
0.25 mm, 0.8 mm, 2.5 mm (automatic/manual) |
| Parameters |
>30 surface roughness parameters (Ra, Rz, Rq, Rt, etc.) |
| Evaluation Standards |
ISO / JIS / ASME / Motif |
| Calibration Function |
Dynamic calibration (Ra, Rz, Rsm) |
| Display & Interface |
|
| Display |
4.3" TFT touchscreen |
| Data Interfaces |
Micro USB, USB-A, Micro SD slot |
| Data Export Formats |
TXT, CSV, X3P, PDF |
| Connectivity |
Wired or wireless data transfer (via accessories) |
| Memory & Storage |
|
| Memory Capacity |
≥3900 profiles, ≥500,000 results, ≥1500 PDF reports |
| Power & Battery |
|
| Battery Type |
Lithium-ion 3.7 V, 11.6 Wh |
| Battery Life |
Min. 1200 measurements |
| Power Supply |
100–264 V charging unit |
| Environmental Conditions |
|
| IP Rating |
IP 40 |
| Operating Temperature |
10 °C to 45 °C |
| Storage Temperature |
-10 °C to 60 °C |
| Physical Characteristics |
|
| Dimensions |
160 × 77 × 50 mm |
| Probe Type |
Inductive skidded probe |
| Software & Compliance |
|
| Languages Supported |
Multiple (20+ languages) |
| Security |
Password-protected functions |
| Standards Compliance |
ISO 21920, ISO 4287, ISO 4288, ISO 16610-21 |
