Tired of slow, fragile displays that cant keep up with a busy shop floor? The Mahr Millimar C 1750 PC gives you a sturdy, touch-screen control center that works even in harsh conditions. It lets you watch and adjust dozens of measurements without stopping production. If you need reliable data and a fast interface, this panel PC solves that problem.

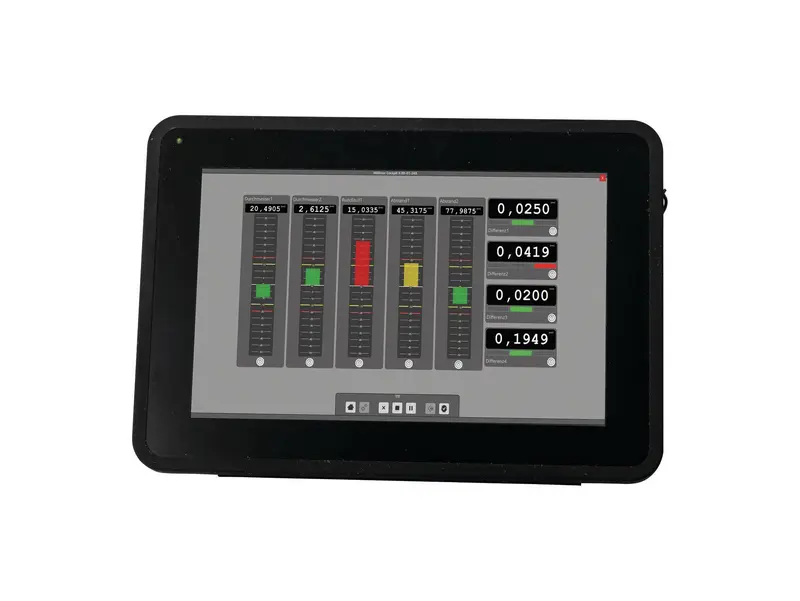

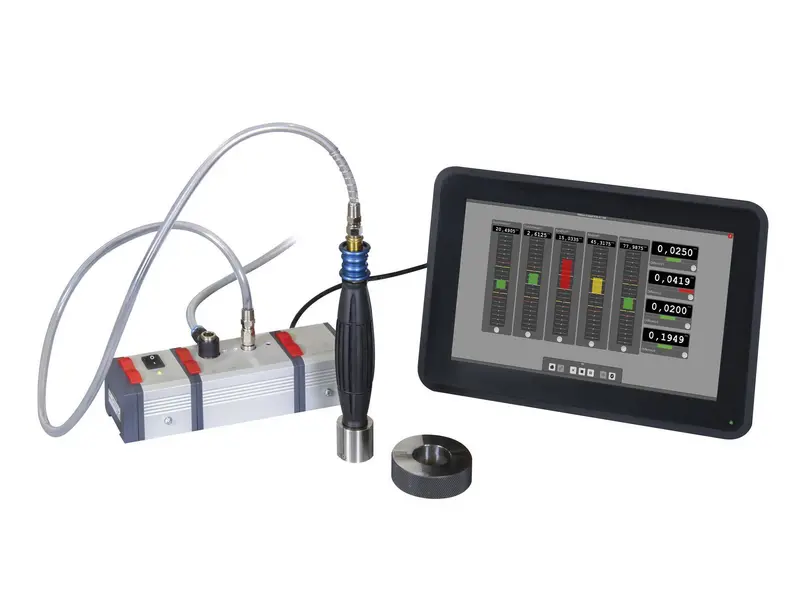

Mahr Millimar C 1750 PC, 10.1in Touch Screen i5 Industrial Panel PC
Many factories struggle with scattered gauges and slow computers that delay decisions. When a machine goes out of tolerance, every second counts. This panel PC gathers up to 128 digital or analog values and shows them on a single 10.1 inch touch screen. The i5 processor, 8 GB RAM and fast SSD keep the display smooth, while the IP65 housing protects it from dust, water and temperature swings. The result is a clear, instant view of every critical parameter.
Key Features
- 10.1 inch rugged touch screen with i5 processor.
- 8 GB memory and 256 GB industrial SSD for fast operation.
- IP65 front panel protection against dust and water.
- 128 measurement channels displayed digitally or analog.
- Multiple graph types: vertical, horizontal, bar, circular scale.
- Built-in tolerance and warning limits per feature.
- USB 3.0, HDMI, DisplayPort and dual RJ45 Ethernet ports.
- Two RS232/RS485 COM ports with switchable voltage.
- Integrated Wi-Fi and optional wireless module.
- Password-protected three user levels.
- Data export to Excel or qs-Stat formats.
- Power input 100-240 V AC/DC with 12 V DC output, max 30 W.
Specifications
| Product type |
C 1750 PC |
| Range of analog display µm |
± 10000 , ± 5000 , ± 2000 , ± 1000 , ± 500 , ± 200 , ± 100 , ± 50 , ± 20 , ± 10 , tolerance related |
| Battery type |
CR 2032 (3V Lithium) |
| Resolution µm |
0,01 |
| Display |
Robust 10.1" touch PC with i5 processor
|
| RAM & Storage |
8GB memory, industrial 256GB SSD |
| Protection |
IP65 fron housing |
| Software |
Interactive, touch-sensitive software |
| Display Type |
Simultaneous display of 128 digital or analog measurement values |
| Protection |
Password-protected user levels (3 levels) |
| Data Management |
Data export to MS Excel or in qs-Stat format (dfq or dfx/dfd format) |
| Graphics |
Supported by graphical operating elements |
| Display |
Vertical bar graph
Horizontal bar graph
Analog display or circular scale
Digital display
Any combination of display types can be chosen for each feature |
| Tolerance display |
Upper and lower tolerance limit (per feature)
Upper and lower warning limit (per feature) |
| Compatibility |
USB , Integrated wireless , Millimar N 1700 |
| Measuring combination |
Predefined formula templates for standard features
Links entered via comprehensive formula editor |
| Features |
128 |
| Dynamic functions |
Max, Min, Max-Min, Max+Min |
| Classification |
Max. 20 classes |
| Hardware interfaces |
4x USB 3.0 , 2x COM port Full-PIN (RS232/485; 5V/12V) , 2x COM 2x COM port 3-PIN
(RX, TX, GND; RS232/485 switchable) , 2× 10/100/1000Mbit RJ45 Ports; 1x W-LAN connector ,
Display port , HDMI
|
| Control inputs |
via N 1704 I/O |
| Control outputs |
via N 1704 I/O |
| Energy supply |
100-240V ACDC active switching; 12V DC-Out |
| Power consumption max. |
30 Watt |
| IP protection category |
IP 65 (Front Panel) |
| Relative humidity non-condensing |
90 % |
| Operating temperature from |
-10 °C |
| Operating temperature up to |
60 °C |
| Product weight |
2.3 kg |
| Range of analog display inches |
± .5" , ± .2" , ± .1'' , ± .05" , ± .02" , ± .01'' , ± .005" , ± .002" ,
± .001'' , ± .0005" , tolerance related
|
