Tired of losing time when your measuring system gives vague or unstable readings? The Mahr Millimar N 1702 VPP Incremental Sensor Module is the precise upgrade you need for the C 1202 Measuring System. It captures tiny changes in position and turns them into clear digital data, so you can trust every measurement. If you have struggled with drift, low resolution, or noisy signals, this module solves those issues and lets you work faster and more confidently.

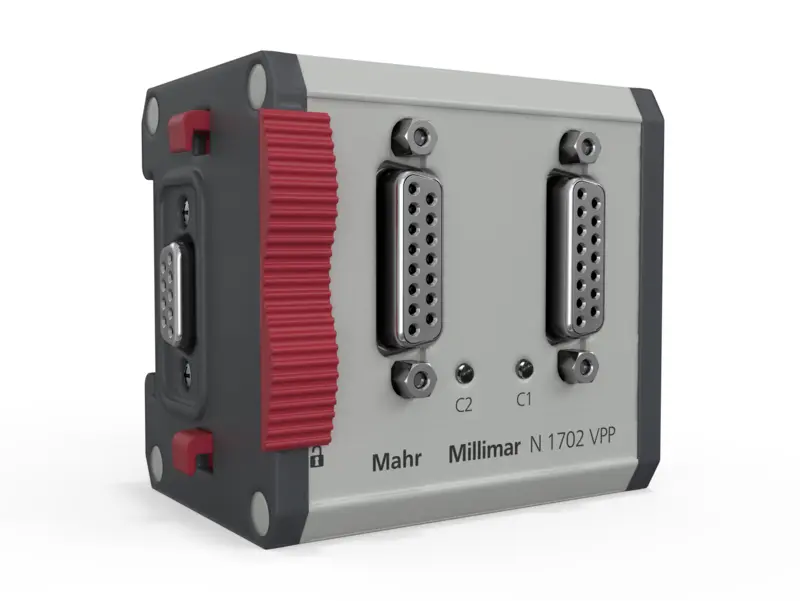

Mahr Millimar N 1702 VPP Incremental Sensor Module for C 1202 Measuring System
The main problem many users face is an inability to detect sub-millimeter movements reliably. When the sensor cannot keep up, the whole measurement process becomes uncertain and costly. This matters because in quality control, tool setting, or research, a single wrong number can lead to scrap or re-work. The N 1702 VPP module provides a stable 0.01 m resolution, low-noise RS-485 output, and a fast 4189 Hz transmission rate. It fits directly into the Millimar C 1202, so you get a ready-made solution without redesigning your hardware.
Key Features
- Resolution of 0.01 m and 0.1 m selectable.
- Two probe inputs for flexible sensor configurations.
- Compatible with Incremental 1 Vss signal standards.
- Configured for Millimar C 1202 firmware version 1.1.0.0.
- Data transmission rate of 4189 Hz for real-time monitoring.
- RS-485 data interface ensures reliable communication.
- Powered by +5 V from the N 1700 bus, no extra supply needed.
- Lightweight design at only 0.2 kg for easy installation.
Specifications
| Millimar N 1702 VPP | Art. no. 5331161 |
| Product type |
N 1702 VPP |
| Current consumption |
350 mA |
| Resolution µm |
0,01 , 0,1 |
| Probe inputs |
2 |
| Compatibility |
Incremental 1 Vss |
| Configuration |
Millimar C 1202 as of FW version 1.1.0.0 |
| Data transmission rate |
4189 Hz |
| Data interface |
RS-485 |
| Energy supply |
+ 5V from N 1700 Bus |
| IP protection category |
IP 42 |
| Working temperature MIN |
10 °C |
| Working temperature MAX |
30 °C |
| Operating temperature from |
0 °C |
| Operating temperature up to |
40 °C |
| Product weight |
0.2 kg |
