Tired of losing valuable production time because your digital LVDT or HBT sensors do not talk to the PLC? The Marposs ASC4 PN, 4 Channel Profinet Interface Box for Digital LVDT/HBT gives you a fast, reliable link between the sensor and your Profinet network. It turns raw sensor data into real-time values that your control system can use instantly. If you need accurate position feedback without wiring headaches, this box is the answer.

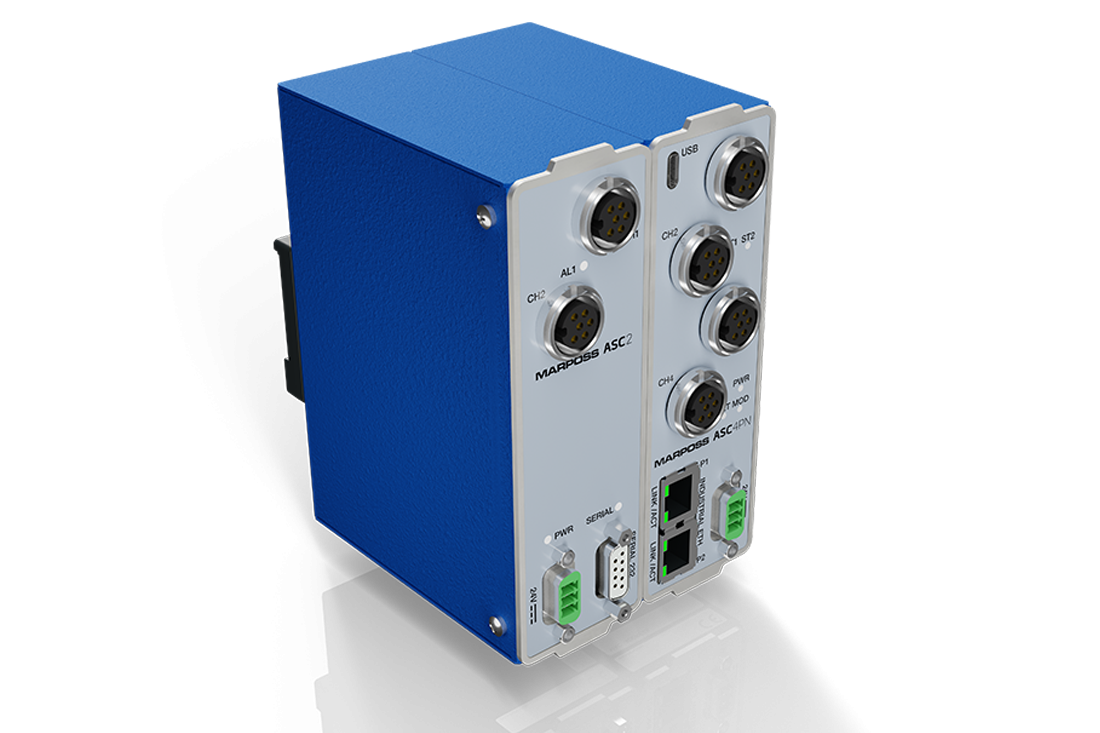

Marposs ASC4 PN, 4 Channel Profinet Interface Box for Digital LVDT/HBT
Many factories struggle with outdated analog interfaces that slow down data collection and cause errors. When the sensor signal is not synchronized with the automation network, you get delayed alarms and poor product quality. The ASC4 PN solves this by providing four independent Profinet channels that deliver sensor values every millisecond. It lets you monitor each axis in real time, reduce downtime, and keep your process within tight tolerances.
Key Features
- Profinet RT, Class B compliance.
- Four independent digital LVDT/HBT inputs.
- Continuous transducer values via Profinet.
- Two RJ-45 ports, 100 Mbit/s each, usable at the same time.
- Minimum update time of 1 ms.
- Power supply +24 VDC, 2.3 W typical consumption.
- IP20 protection, suitable for indoor industrial use.
- Supports SNMP, LLDP, DCP for network management.
- Weight 603 g for lightweight installation.
Specifications
| General |
|
| Product Name |
ASC4 PN |
| Output Type |
Profinet |
| Channels |
4 |
| Sensor Type |
Digital LVDT / HBT (pinout LVDT) |
| Measuring Range |
Not range-specific (digital sensor) |
| Sensor & Signal |
|
| Compatible Sensors |
Digital LVDT / HBT (half bridge with LVDT pinout); DIGICrown2™
pencil probes: ±0.5, ±1, ±2, ±2.5, ±5, ±10 mm
|
| Output Signal |
Transducer values continuously available via Profinet |
| Profinet Specifications |
|
| Profinet Version |
Profinet RT |
| Conformance Class |
B |
| Number of Connections |
2 |
| Compliant Protocols |
SNMP, LLDP, DCP |
| Minimum Update Time |
1 ms |
| Device Type |
Data I/O Communication, Record Data Communication |
| GSDML Version |
2.41 |
| Device Connectors |
2 x RJ-45, 100 Mbit/s ports, available simultaneously |
| Netload Class |
III |
| Ethernet Features |
|
| Ethernet Features |
Device configuration via Ethernet; Secure firmware update via Ethernet; IT functions web server |
| Power & Electrical |
|
| Power Supply |
+24 VDC nominal; input range −15% / +20% |
| Electrical Absorption |
P(typ) = 2.30 W / P(max) = 3.40 W |
| Mechanical & Environmental |
|
| Protection Degree |
IP20 |
| Operating Temperature |
0 to 55 °C |
| Storage Temperature |
−20 to 70 °C |
| Weight |
603 g |
| Dimensions |
146 x 158 x 45 mm (H x D x W) |
| Mounting |
DIN rail |
