Stop guessing why a tool breaks or a process slows down. The Marposs (Italy) CTM CPU PB FOCAS Tool and Process Monitoring System watches every tool and every step in real time. If a tool wears out, breaks, or is missing, the system tells you instantly. This prevents costly downtime and scrap, so you keep the line running and your customers happy.

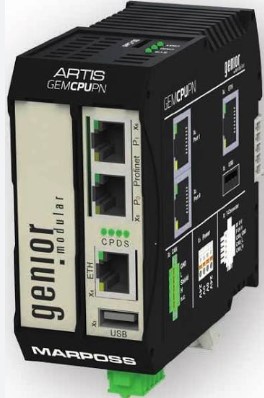

Marposs (Italy) CTM CPU PB FOCAS Tool and Process Monitoring System
Many manufacturers lose money because they cannot see tool problems until after a defect is made. That hidden loss hurts profit and reputation. The CTM CPU PB FOCAS solves this by giving you live data on tool condition, breakage, overload and wear. It works with Profibus, Ethernet and FANUC/FOCAS networks, so you can add it to almost any existing machine without a major overhaul.
Key Features
- Quad-core 800 MHz processor for fast data handling.
- 2 GB mSATA SLC storage with fail-safe backup.
- 24 V DC power supply with 20 % tolerance.
- 10/100 Base-T Ethernet port for quick network connection.
- Profibus up to 12 Mbit/s (PB variant) for reliable field bus communication.
- Supports FANUC/FOCAS and CAN bus for broad machine compatibility.
- USB host port for easy firmware updates.
- IP30 protection rating suitable for shop floor environments.
- Standard mounting rail (DIN EN 60715) for simple installation.
- Compliant with CE, UKCA and ISO quality standards.
Specifications
| General |
|
| Product |
CTM CPU — Tool and Process Monitoring System (monitoring module) |
| Variants |
CTM CPU PB (Profibus/FOCAS), CTM CPU PN (Profinet/FOCAS) |
| Manufacturer |
Marposs S.p.A. (Italy) / ARTIS |
| Hardware |
|
| Processor |
Quad-core, 800 MHz |
| Storage |
2 GB mSATA SLC, fail-safe |
| Standard IP Address |
192.168.214.70 |
| Power |
|
| Supply Voltage |
24V DC (±20%) |
| Current Consumption |
Max. 500 mA |
| Connections |
|
| Ethernet |
10/100 Base-T (both PB and PN variants) |
| Profibus |
Up to 12 Mbit/s (PB variant only) |
| Profinet |
Supported (PN variant only) |
| FANUC/FOCAS |
Supported (both variants) |
| S828 |
Supported (PN variant only) |
| USB |
USB Host (both variants) |
| CAN |
Supported (both variants) |
| Wire Cross Section |
0.2 – 1.5 mm² |
| Mechanical |
|
| Weight |
243 g |
| Material |
Polyamide PA 6.6 |
| Installation |
DIN EN 60715 standard mounting rail |
| Contacting |
Spring terminals, in-rail bus connector |
| Environmental |
|
| Storage Temperature |
-20°C ... +60°C |
| Operating Temperature |
0°C ... +55°C |
| Humidity |
5–85%, non-condensing |
| Degree of Protection |
IP30 |
| UL Classification |
V0 (UL94) |
| Software |
|
| Supported OS (Visualization) |
Windows XP (SP3) / 7 / 8 / 10 / 11 |
| Monitoring Methods |
Standard (breakage/missing/overload/wear), SAS, DX/DT |
| Compliance |
|
| Certifications |
CE, UKCA |
| Quality Management |
ISO 9001, ISO 14001, OHSAS 18001 |
| Article Numbers |
|
| CTM CPU PB FOCAS |
O830Z410041 |
