Tired of slow, error-prone measurements on the shop floor? The Marposs DUO, 4.3 Inch Falt Touchscreen, Two-Channel Compact Gauging Computer gives you fast, reliable data in a tiny package. It is built for precision gauging in tight spaces, so you can keep production moving without costly re-work. If you need accurate dimensions every minute, this device solves the problem.

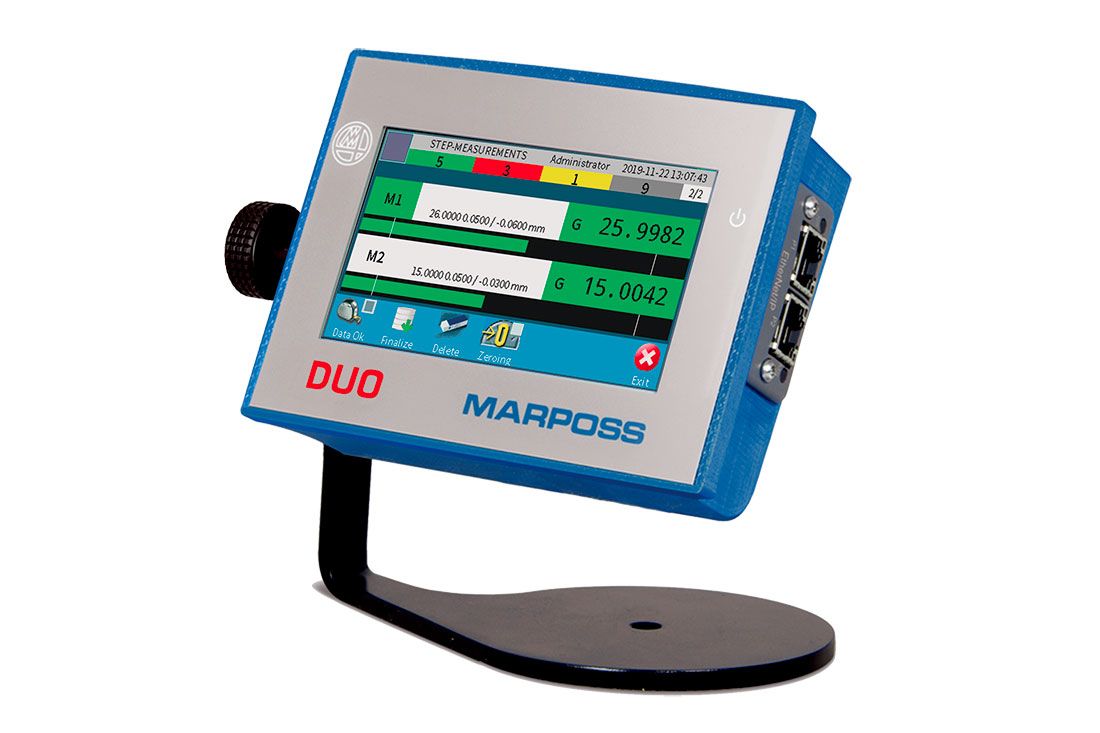

Marposs DUO, 4.3 Inch Falt Touchscreen, Two-Channel Compact Gauging Computer
Manufacturers often lose time because a single-channel gauge cannot check two features at once. The delay adds scrap and reduces throughput, which hurts profit. This gauging computer removes that bottleneck by offering two independent measurement channels in a compact, rugged case. Its flat capacitive touchscreen lets operators set up tests in seconds, while Ethernet and fieldbus connections keep the data flowing to your control system. The result is a clear, repeatable measurement process that fits on any bench.
Key Features
- Robust industrial aluminum case.
- IP54 protection on front panel, IP40 on rear.
- Capacitive true-flat touchscreen.
- Internal 4 GB micro-SD memory, removable USB option.
- 4.3-inch color TFT display.
- Ethernet/IP, Profibus, Profinet connectivity.
- USB type B for power, USB type A for data.
- RS232C and RS485 serial ports.
Specifications
| Case |
Robust industrial aluminum case
|
| Protection |
IP54 on front panel; IP40 on rear panel |
| Touch Screen |
Capacitive, true flat |
| Storage Media |
Internal 4 GB Micro SD memory or removable USB memory device |
| LCD Display |
4.3" color TFT |
| Ethernet / Fieldbus |
Ethernet/IP, Profibus, Profinet |
| USB Ports |
1 x type B (power supply only) + 1 x type A |
| Serial Port |
1 x RS232C + 1 x RS485 |
| Bench-top Support |
Reclinable |
| Power Supply |
5V 1.4A |
| Dimension |
130 x 95 x 50 mm (5.12" x 3.74" x 1.97") |
| Weight |
1 kg |
| Operating Temperature |
5 to 45 °C (41 to 113 °F) |
| Storage Temperature |
-20 to 70 °C (-4 to 158 °F) |
