When you need to turn an air-pressure signal into a clean electronic output, many factories face noisy data, poor repeatability and costly downtime. Inconsistent signals can cause wrong measurements, wasted material and missed production targets. The Marposs DUO Air Analog air/Electronics converter box removes those problems by giving you a stable, precise conversion that fits directly into your control system.

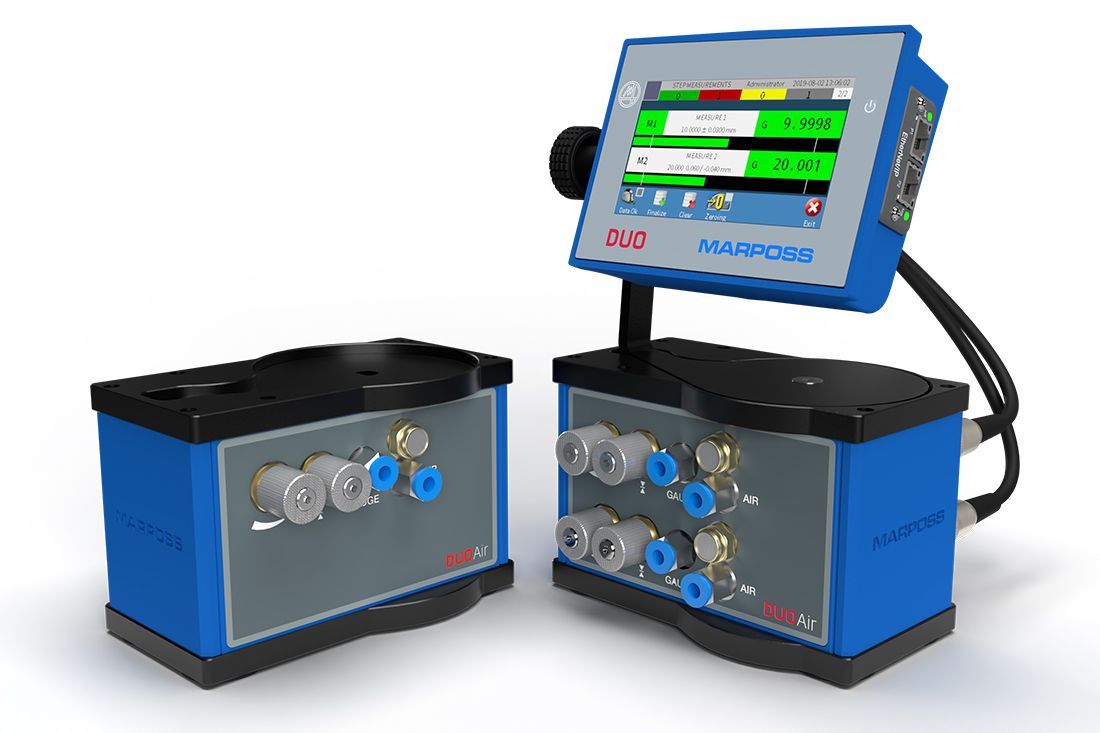

Marposs DUO Air Analog air/Electronics converter box with Marposs
This device takes an analog air signal and turns it into a reliable electronic voltage or current that your PLC or data logger can read. It is built for machines that measure position, thickness or force using air-cushion sensors. Without a proper converter, the signal can drift, add noise or fail to meet the required resolution. Marposs provides the exact tool you need to keep your process accurate and your line running.
Key Features
- Linearity better than 0.4 % of the working range.
- Repeatability under 0.15 m for consistent results.
- Noise level below 0.1 m for clean signals.
- Resolution of 0.01 m to detect tiny changes.
- Air consumption less than 1 m/h, saving energy.
- EMC immunity meeting standard requirements.
- Easy wiring to standard PLC or data acquisition modules.
Specifications
| Reference Features (Referred to a Typical Application) |
|
| Linearity |
< 0.4% of the working range |
| Repeatability |
< 0.15 µm |
| Noise |
< 0.1 µm |
| Resolution |
0.01 µm |
| Response Time |
200 msec |
| General Characteristics |
|
| Air Supply |
3 ±0.1 bar |
| Air Consumption |
< 1 m³ / h |
| Working Temperature |
0 / +65 °C |
| Storage Temperature |
-20 / +70 °C |
| Waterproof Level (IEC 529) |
IP 65 and IP 67 for the internal sensor |
| EMC |
Immunity to electromagnetic interference in accordance to EMC standards |
