If you need fast, reliable data from air gauges, the Marposs DUO AIR D is the answer. This digital air-electronic converter box turns the pressure from up to four K type air transducers into clear RS485 signals. Many shops lose time fixing noisy or slow readings, which can cause scrap and re-work. With this converter you get accurate measurements in real time, so your process stays on target.

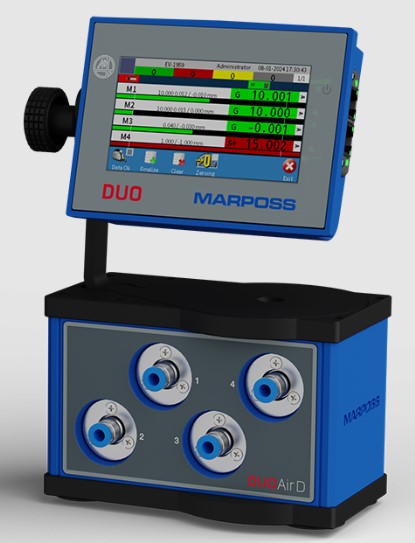

Marposs DUO AIR D, 4 air transducer input, DIGITAL AIR/ELECTRONIC CONVERTER BOX
The main problem is that old pneumatic gauges give only analog pressure that is hard to read and hard to log. When you cannot see the data, you cannot control quality. This box solves the problem by converting the analog air signal to a digital RS485 output that any PLC or PC can read instantly. The result is a smoother workflow, less waste, and confidence that every measurement is recorded correctly.
Key Features
- Four air transducer inputs for K type gauges.
- RS485 output compatible with most controllers.
- Works with Marposs and non-Marposs gauges.
- Measuring range up to 100 m.
- Linearity error less than 0.02 m.
- Resolution of 0.01 m.
- Response time under 100 ms.
- Air supply 3 bar 0.1.
- Very low air consumption.
- Dry, unoiled air with 5 m filtration.
- IP67 protection against dust and water.
Specifications
| General |
|
| Order Code |
B830DUOADK2 |
| Product Name |
Duo Air D |
| Description |
Duo Air D with 4 air transducer inputs for K type air gauges |
| Converter Type |
HSD-AECONV™ high speed digital A/E converter |
| Number of Channels |
4 |
| Output Signal |
RS485 |
| Compatible Gauge Type |
K type air gauges (Marposs and non-Marposs) |
| Performance |
|
| Max. Measuring Range |
100 µm |
| Linearity Error |
< 0.02 µm over the total working range |
| Resolution |
0.01 µm |
| Response Time |
< 100 ms |
| Pneumatic |
|
| Air Supply Pressure |
3 bar ± 0.1 |
| Air Consumption |
Very low |
| Air Quality |
Dry, unoiled, with 5 µm filtration grade |
| Electrical & Environmental |
|
| Power Supply |
Powered and managed by the Duo gauge computer |
| Protection Degree (Converters) |
IP67 |
| Operating Temperature |
3 to 65 °C |
