Imagine a test that catches hidden cracks before they cause costly downtime. The Marposs E59N Eddy Current Electronics for NDT Material Inspection does exactly that. It is a universal eddy-current unit built for non-destructive testing of metal parts. If you struggle with unreliable inspections or missed defects, this device gives you clear, repeatable results every time.

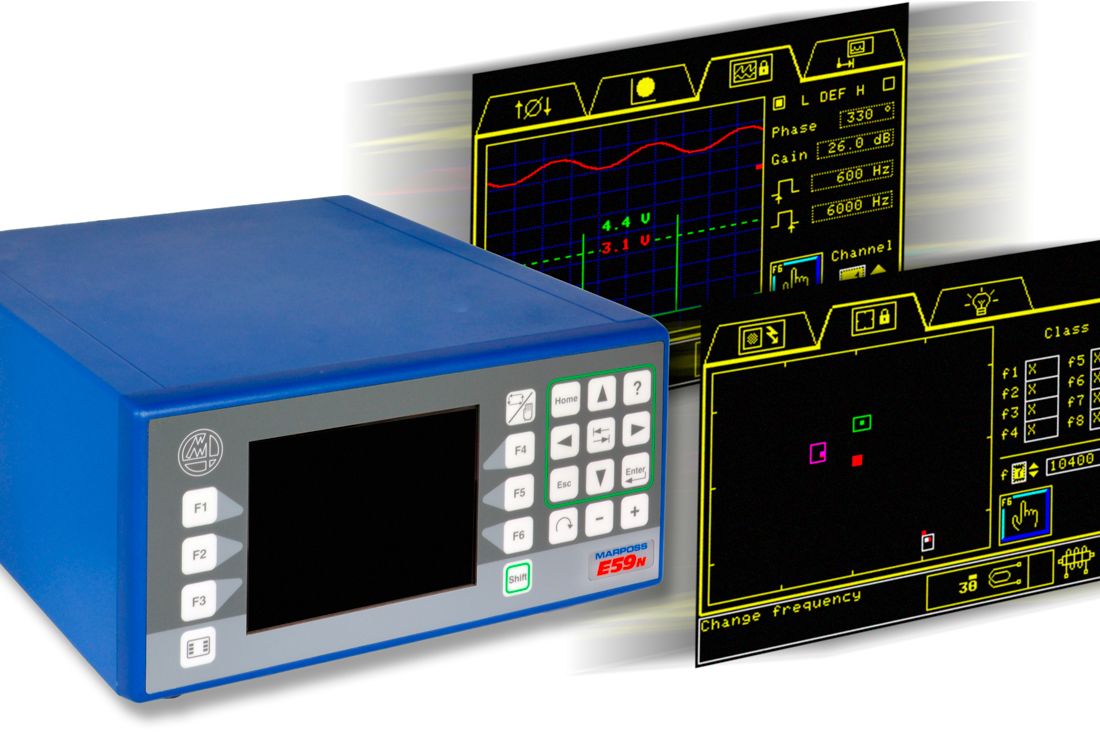

Marposs E59N Eddy Current Electronics for NDT Material Inspection
The main problem it solves is the inability to see internal flaws without destroying the part. Missing a crack in a turbine blade or a pipe weld can lead to expensive repairs and safety hazards. This matters because every missed defect adds risk and cost to your operation. The E59N offers a reliable, multi-frequency solution that detects both surface structure and deep-lying integrity issues, giving you confidence in every inspection.
Key Features
- Four channel configurations: structure, integrity, or 2 + 2 combined.
- Frequency range 10 Hz-40 kHz for structure, 10 kHz-2 MHz for integrity.
- Multifrequency mode supports up to eight frequencies at once.
- 256 parameter sets stored in memory for quick setup changes.
- Part-to-probe distance compensation for accurate integrity scans.
- DSP processor delivers fast, reliable signal analysis.
- 32 I/O signals, 32 BCD signals, and RS-232 serial communication.
- Profibus / Interbus-S field-bus options for plant integration.
- External trigger and high-speed dedicated I/O for synchronized testing.
- Graphic LCD (320 x 240) with color display for clear results.
Specifications:
| General / Channels |
|
| Product |
E59N — Universal Eddy Current Electronics for Non-Destructive Testing (NDT) |
| Manufacturer |
Marposs S.p.A. (Italy) |
| Channel Configurations |
4 channels material structure inspection; 4 channels material integrity inspection; or 2+2 combined |
| Number of Probes |
Max. 4 |
| Inspection Capability |
|
| Working Frequency (Material Structure) |
10 Hz – 40 kHz |
| Working Frequency (Material Integrity) |
10 kHz – 2 MHz |
| Multifrequency Mode |
Up to 8 working frequencies simultaneously |
| Parameter Sets in Memory |
Up to 256 |
| Part-to-Probe Distance Compensation |
Yes (for material integrity inspection) |
| Hardware |
|
| Processor |
DSP processor for signal analysis |
| Interfaces |
|
| I/O |
32 signals (16 out, 8 in, 8 in/out programmable) |
| BCD |
32 signals (8 out, 8 in, 16 in/out programmable) |
| Serial |
RS 232 (protocol per specific needs) |
| Field Bus |
Profibus / Interbus-S |
| External Trigger |
Yes |
| High-Speed Dedicated I/O |
Yes |
| User Interface |
|
| Auto Setting Function |
Yes |
| Guided Sequence Menus |
Yes |
| Display |
Graphic LCD, 320 x 240 px, ¼ VGA, color |
| Remote Panel |
Max. remote distance 20 m (65 ft) |
| Power |
|
| Power Supply |
24 Vdc (-15/+20%) |
| Power Consumption |
60 W |
| Cabinet / Mechanical |
|
| Dimensions (H x W x D) |
132.5 x 279 x 300 mm (5.2" x 10.9" x 11.8") |
| Seal Rating |
IEC 529, IP 54 |
| Certifications |
|
| Quality Management |
ISO 9001, ISO 14001, EAQF 94, Q1-Award |
