Tired of slow, unreliable controllers that halt your production line? The Marposs GEMBOXHP BOX PC is a compact industrial computer designed to keep machines running smoothly. It delivers fast processing, stable networking, and easy mounting, so you can avoid costly downtime. If you need a trustworthy brain for CNC machines, robots, or inspection stations, this box PC gives you the power and durability you expect from Marposs.

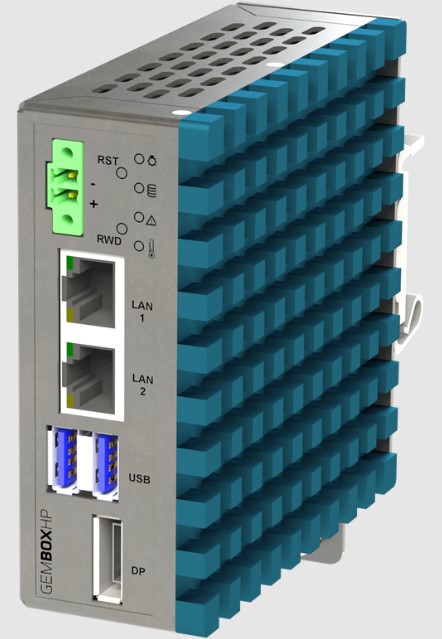

Marposs GEMBOXHP BOX PC Intel Atom quad core x7-E3950, 1.6 GHz (2,00 GHz Turbo)
Many factories struggle with control units that cannot handle modern data traffic or temperature swings. When a controller freezes, the whole line stops and profit disappears. The GEMBOXHP solves this by offering a quad core Intel Atom processor, 8 GB of DDR4 memory and a rugged aluminum case that works from -10C to +55C. Its dual Ethernet ports and fast SSD keep data flowing and applications running without interruption.
Key Features
- Intel Atom quad core x7-E3950 processor, 1.6 GHz base, 2 GHz turbo.
- Integrated Intel HD Graphics 500 for clear video output.
- 8 GB LP-DDR4 RAM for smooth multitasking.
- 480 GB M.2 2242 SSD provides fast storage and quick boot.
- Two 10/100/1000 Mbps RJ45 ports with Intel I210 controller.
- Two USB 3.0 Type-A ports for high-speed peripherals.
- One DisplayPort V1.2 for external monitor connection.
- 24 VDC (18-32 VDC) isolated power input, max 1 A consumption
Specifications
| General |
|
| Standard IP Address — LAN1 |
192.168.214.55 |
| Standard IP Address — LAN2 |
192.168.215.55 |
| Weight |
0.386 kg |
| Material |
Aluminum alloy |
| Storage Temperature |
−10 °C … +60 °C |
| Operating Temperature |
0 °C … +55 °C |
| Degree of Protection |
IP20 |
| Atmospheric Relative Humidity |
80%, no condensation |
| Installation |
Standard mounting rail according to DIN EN 60715 |
| Contacting |
24 V voltage supply, screw connection |
| Computer Data |
|
| Processor |
Intel® Atom® quad core x7-E3950, 1.6 GHz (2.00 GHz Turbo); Intel® HD Graphics 500, integrated |
| System Memory |
8 GB LP-DDR4 RAM |
| SSD |
480 GB M.2 2242 |
| Ethernet |
2 x 10/100/100 Mbps (2 x RJ45, Intel® I210) |
| USB |
2 x USB 3.0 (type A) |
| Video Output |
1 x DisplayPort™ V1.2 |
| Voltage Supply |
24 VDC (18 … 32 VDC) galvanically isolated |
| Nom. Current Consumption |
24 VDC max. 1 A |
| Software |
|
| Operating System |
Microsoft Windows® 10 IoT Enterprise 2016 LTSB Entry 64-bit — MUI A2 |
| Conformity |
|
| Conformity |
CE, UKCA |
