Grinding machines often produce parts that drift out of tolerance during a run. When dimensions change, you lose material, waste time, and risk customer complaints. The Marposs P3ME Electronic Gauge gives you live dimensional data, so you can keep the process inside the required limits without stopping the machine.

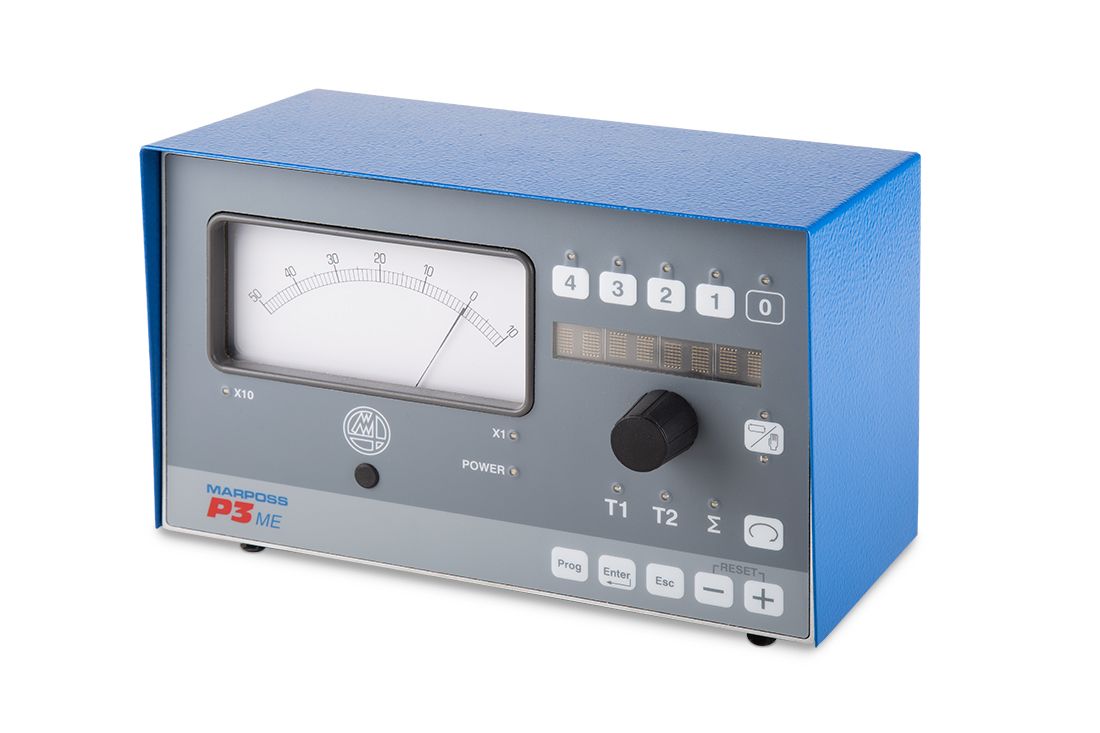

Marposs P3ME Electronic Gauge for Grinding Machine Dimensional Control with Marposs
Stop guessing and start measuring every cut. The Marposs P3ME Electronic Gauge for Grinding Machine Dimensional Control is a compact electronic unit that connects to Marposs measuring heads and to the grinders control system. It reads the workpiece size in real time, shows the value on an analog meter and an 8-character digital display, and can trigger automatic corrections. Users who struggle with scrap parts, long set-up times, or unpredictable wheel wear will find this gauge essential. With Marposs technology you get reliable data, automatic wheel wear compensation, and seamless PLC integration.
Key Features
- Supports one or two measurement channels.
- Compatible with Marposs LVDT or Air GAP measuring heads.
- 24 V DC supply with wide tolerance (+-25 %).
- Analog meter and 8-character alphanumeric digital readout.
- LED status lights for machine control signals.
- 37-pin Cannon connector for machine logic interface.
- Programmable analog outputs T1 and T2.
- Measurement range up to 1999 m for positioning.
- Stand-alone case or panel-mounted rack versions.
Specifications
| General |
|
| Product |
P3ME Electronic Gauge for Grinding Machine Dimensional Control |
| Manufacturer |
Marposs S.p.A. (Italy) |
| Application |
Dimensional control on grinding machines |
| Compatible Measuring Heads |
Marposs measuring heads |
| Supported Grinding Machines |
External, Internal and Surface grinders |
| Measurement Functions |
|
| In-Process Measurement |
Supported |
| Positioning Control |
Supported |
| Grinding Wheel Wear Compensation |
Supported |
| Real-Time Dimensional Control |
Supported |
| Part Stock Removal Measurement |
Supported |
| Part Position Check |
Supported (application dependent) |
| Interrupted Surface Measurement |
Supported with additional elaboration board |
| Measuring Head Finger Retraction Management |
Supported |
| Channels |
|
| Measurement Channels |
1 or 2 channels |
| Measuring Head Connection |
Marposs LVDT measuring head or Air GAP |
| Display & User Interface |
|
| Analog Display |
Analog meter |
| Digital Display |
8-character alphanumeric display |
| Status Indicators |
LED indicators for machine control signals |
| Interfaces |
|
| Machine Logic Interface |
37-pin Cannon connector |
| Digital I/O |
Sink or Source |
| Input Current |
5 mA |
| Output Current |
100 mA |
| Analog Outputs |
T1 and T2 (programmable sensitivity) |
| Power |
|
| Supply Voltage |
24 V DC (-20% / +25%) |
| Power Consumption |
11 W (without retraction option); 30 W (serial retraction option);
21 W (parallel retraction option); 42 W peak at retraction start
|
| Measurement Range |
|
| In-Process Measurement |
100-0-20 (+1000 to -200 μm); 50-0-10 (+500 to -100 μm);
10-0-2 (+100 to -20 μm) depending on analog meter scale
|
| Positioning Measurement |
±1999 μm; ±7870 (0.00001 in resolution) |
| Mechanical |
|
| Versions |
Stand-alone case version; Panel-mounted rack version |
| Weight |
2.2 kg |
| Environmental |
|
| Operating Temperature |
5°C to 50°C |
| Storage Temperature |
-20°C to 60°C |
| Protection Rating |
IP20 (panel version) |
| Environment |
Indoor use |
| Compliance |
|
| Electrical Safety |
EN 61010-1 |
| EMC |
EN 61326-1 |
| Benefits |
|
| Productivity |
Constant productivity with automatic process control |
| Cycle Optimization |
Grinding cycle time optimization |
| Quality |
Real-time part quality monitoring and production within tolerance |
| Machine Integration |
Integration with machine PLC/logic |
| Operator Influence |
Minimized through automatic dimensional control |
