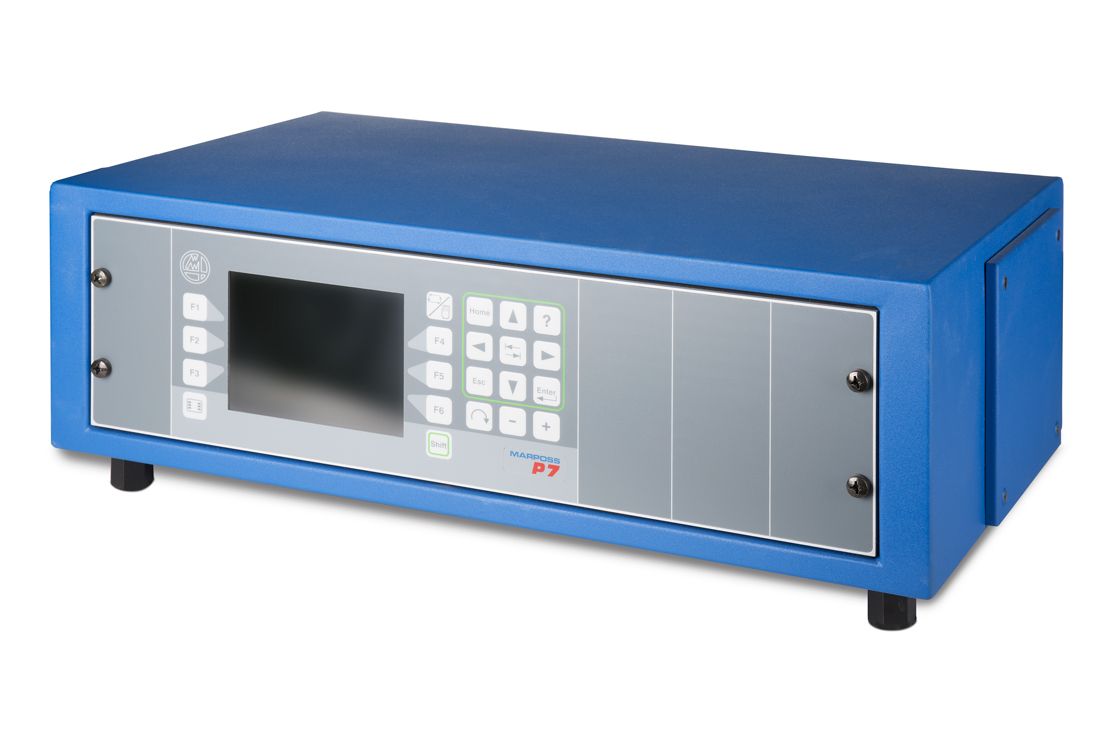

Marposs P7 Multifunction Electronic Unit for Grinder Process Control

Tired of inconsistent grind quality and costly re-work? The Marposs P7 Multifunction Electronic Unit for Grinder Process Control gives you real-time measurement and automatic compensation so every part meets tolerance the first time. It connects to your grinding machine and watches the wheel, workpiece and acoustic signals, removing the guesswork that slows production.

Marposs P7 Multifunction Electronic Unit for Grinder Process Control

Grinding machines often produce parts that drift out of spec because the wheel wears, the workpiece moves, or hidden collisions occur. When this happens, you lose material, face scrap, and your delivery schedule slips. The P7 unit solves these issues by delivering continuous in-process measurement, automatic wheel balancing, and acoustic monitoring that detects contact or faults instantly. With a built-in 5.5-inch color display and Ethernet, RS-232 or fieldbus links, the system talks directly to your PLC or CNC, sending compensation signals that keep dimensions within microns. The result is higher yield, less downtime, and confidence that every batch meets customer expectations.

Key Features:

• Multifunction process control platform for grinding machines
• Supports Pre-Process, In-Process and Post-Process gauging
• Integrated automatic wheel balancing
• Acoustic emission monitoring for gap elimination and crash prevention
• Machine vibration monitoring
• Automatic wheel wear compensation
• Modular architecture supporting multiple measurement and monitoring cards
• Ethernet and industrial fieldbus connectivity
• Color operator interface with remote panel support
• Automatic machine compensation to improve dimensional accuracy and reduce cycle time

Specifications:
