If you are tired of unexpected grinder failures and wasted material, the answer is here. The Marposs P7SE stand alone Acoustic Process Monitoring Electronics for Grinders watches the sound of your grinding machine and tells you when something is wrong. It helps you catch problems early, keep quality high, and avoid costly downtime.

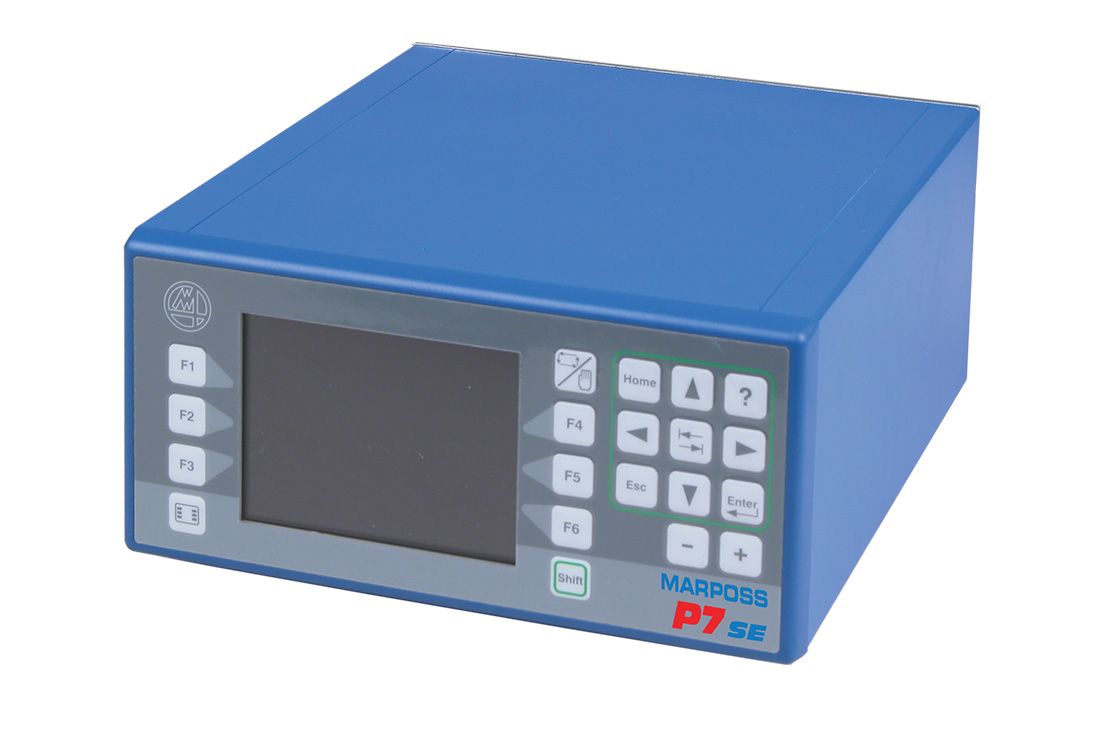

Marposs P7SE stand alone Acoustic Process Monitoring Electronics for Grinders
Grinding machines often produce hidden wear that only shows up after a bad part is made. That hidden wear can lower product quality and cause expensive repairs. Marposs solves this by turning acoustic signals into clear alerts. The system watches the grinding wheel, the air gap, and the machine motion, then gives you real-time warnings so you can act before a defect spreads.
Key Features
- Fully digital acoustic monitoring system.
- Automatic acquisition and analysis of acoustic emission signals.
- Air gap detection to prevent wheel overload.
- Collision detection for machine safety.
- Dressing process monitoring for optimal wheel condition.
- Grinding wheel monitoring for both conventional and CBN wheels.
- Four logic channels for customized alarms.
- Ethernet, RS232 and Profibus interfaces for flexible integration.
- Static I/O interface for external signal handling.
- 24 V DC power supply for reliable operation.
- Integrated front panel with MHIS human interface software.
- Three-slot basket design for compact installation.
Specifications
| General |
|
| Product |
P7SE Stand Alone – Electronic for Acoustic Process Monitoring on Grinders |
| Manufacturer |
Marposs S.p.A. (Italy) |
| Application |
Acoustic process monitoring for grinding machines |
| Version |
Stand Alone (3-slot basket with integrated front panel) |
| Monitoring Functions |
|
| Acoustic Signal Analysis |
Automatic acquisition and analysis of acoustic emission signals |
| Air Gap Check |
Yes |
| Collision (Crash) Detection |
Yes |
| Dressing Process Monitoring |
Yes |
| Grinding Wheel Monitoring |
Yes |
| Logic Channels |
4 |
| Supported Grinding Wheels |
Conventional and super-abrasive (CBN) grinding wheels |
| Hardware |
|
| System Type |
Fully digital acoustic monitoring system |
| Master Controller |
Master card coordinating acoustic function card and machine communication |
| Interfaces |
|
| Ethernet |
Yes |
| RS232 |
Yes |
| Profibus |
Yes |
| I/O |
Static I/O interface |
| Operator Interface |
MHIS (Marposs Human Interface Software) |
| Power |
|
| Power Supply |
24 V DC |
| Benefits |
|
| Production Quality |
Increased production quality |
| Cycle Optimization |
Air gap detection and reduced dressing cycle time |
| Machine Protection |
Collision detection and machine protection |
| Maintenance |
Increased machine component life |
| Mechanical |
|
| Configuration |
3-slot basket with integrated front panel |
| Software |
|
| Human Interface |
MHIS (Marposs Human Interface Software) |
| Alternative Version |
|
| Remote Version |
P7SE Remote – 3-slot basket without front panel, installed inside machine cabinet;
supports remote panel or PC via Ethernet
|
