Imagine a shop floor where every machine talks to you in real time, showing exactly how many parts are made, when a stop happens, and why. The Marposs T1 Innovative Machine Terminal 4.0 is that voice. It collects order, production and machine data directly from equipment and sends it to your control system. If you struggle with missing counts, unexpected downtime, or manual data entry, this terminal gives you the clear, instant information you need to keep production moving.

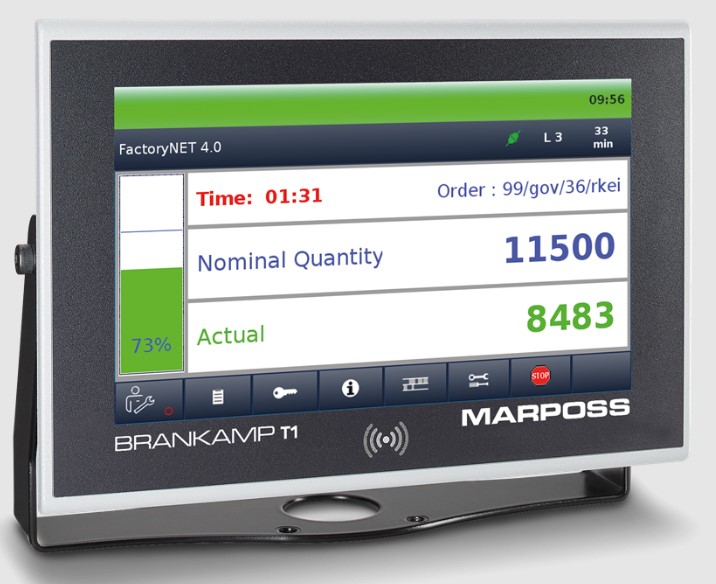

Marposs T1 Innovative Machine Terminal 4.0, MACHINE AND DATA COLLECTION
Factories often lose money because they cannot see what each machine is doing at the moment. Without that view, planners cannot match orders to capacity and operators cannot react to problems fast enough. The T1 solves this by turning every machine into a smart data source. It records part counts, speed, material presence and status signals, then displays the information on a 7-inch color touchscreen. The data is also ready for ERP, MES or other Industry 4.0 systems, so you get a single source of truth for the whole plant.
Key Features
- 7-inch LCD colour touchscreen for clear graphics.
- Touch-based operator interface simplifies training.
- Counts produced parts, machine speed and material presence.
- Controls stop output, release output and warning lamps.
- Registers order start, interruption and completion.
- Logs scrap quantity and generates reports.
- Provides run-time, downtime and stop-reason data.
- 4 binary I/O ports plus PLC interface for direct machine link.
- Ethernet, Wi-Fi and USB connectivity for flexible integration.
- Works with C-THRU4.0 software and connects to MES/ERP systems.
Specifications
| General |
|
| Product |
Marposs T1 |
| Full Name |
Innovative Machine Terminal 4.0 |
| Type |
Machine and Production Data Collection Terminal |
| Application |
Collection of order, production and machine data from production equipment |
| Installation |
Panel mounting possible |
| Display |
|
| Display Type |
LCD color touchscreen |
| Display Size |
7" |
| User Interface |
Touch-based operator interface |
| Functions |
|
| Production Data Collection |
Produced parts counting, machine status monitoring,
material presence detection, machine speed monitoring
|
| Machine Control |
Stop output, release output, machine lock, warning lamp control |
| Order Management |
Order registration, interruption and completion notification |
| Scrap Management |
Scrap quantity registration and reporting |
| Runtime Analysis |
Stop & Go diagram |
| Operator Information |
Display of follow-up orders, target quantities and production information |
| Data Acquisition |
|
| Data Captured |
Run time, downtime, stop reasons, stroke counts, production quantities |
| Pulse Processing |
Counting pulse acquisition from various machine types |
| Machine Status Signals |
Running/stopped status, material on/off status |
| Interfaces |
|
| Binary I/O |
4 binary inputs and outputs |
| Ethernet |
1 × TCP/IP Ethernet port |
| Wireless |
WiFi support |
| USB |
1 × USB port |
| PLC Interface |
Direct machine connection for part counting and control |
| Software Integration |
|
| Native Software Connection |
C-THRU4.0 |
| Enterprise Integration |
DC / MES / ERP connectivity |
| Communication Protocol |
TCP-IP proprietary protocol to C-THRU4.0 server |
| Electrical |
|
| Supply Voltage |
24 V DC |
| Power Consumption |
23 W |
| Environmental |
|
| Operating Temperature |
+5 °C ... +40 °C |
| Mechanical |
|
| Dimensions (W × H × D) |
185 × 130 × 55 mm |
| Weight |
1.1 kg |
| Mounting Hardware |
U-holder included |
| Benefits |
|
| Machine Data Accuracy |
Exact acquisition of machine operating data |
| Production Monitoring |
Real-time production and machine status visibility |
| Productivity Analysis |
Runtime and downtime analysis |
| Machine Protection |
Automatic machine shutdown at target quantity |
| Industry 4.0 |
Integration with digital manufacturing and enterprise systems |
| Conformity |
|
| Manufacturer |
Marposs |
| Product Family |
Brankamp Data Collection and Industry 4.0 Solutions |
