Finding a small leak in a pneumatic or hydraulic system can stop production and raise costs. A leak means wasted air, lower efficiency, and possible safety issues. The Marposs T3LPF Flow and Leak Tester BY ABSOLUTE PRESSURE DECAY gives you a fast, reliable way to locate and measure leaks so you can fix them before they cause bigger problems.

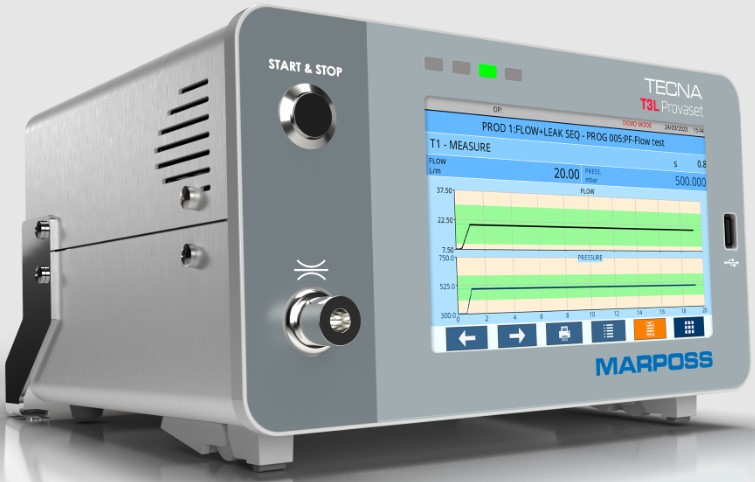

Marposs T3LPF Flow and Leak Tester BY ABSOLUTE PRESSURE DECAY with Marposs
If you need to prove that a component meets leak-rate specifications, this tester is the answer. It uses absolute pressure decay to calculate flow and leak rates with high accuracy. Operators who struggle with inconsistent results or long test cycles will see immediate improvement. Marposs delivers a compact unit that connects to your air line, runs a test, and shows pass or reject on a clear screen.
Key Features
- External 24 Vdc power or 85 264 Vac option.
- Dry, oil-free air line with 5-micron filtration.
- Electronic pressure regulator with visual transducer readout.
- 7-inch colour TFT LCD with resistive touchscreen.
- Four LED indicators for test phases and outcome.
- Resettable pass/reject counters for production tracking.
- Programmable alarm beeper with adjustable duration.
- 300 test tables, sequential mode, leak rate shown in cm/min or cm/h.
- 8 programmable digital inputs and 8 programmable digital outputs (expandable).
- USB host ports for firmware updates, barcode reading, and data backup.
- RS232/RS485 serial port configurable for legacy systems.
- Support for Profinet, Profibus, Modbus RTU/TCP, CSV, barcode and QR code.
- Standard Stubli connector compatible with Leak Masters.
- Rugged anodized aluminium housing for industrial environments.
Specifications
| Power Supply |
External 24 Vdc; alternatively 85 ÷ 264 Vac, 35 W |
| Compressed Air Line |
Dry, non-condensing, 5-micron filtered and oil-free air, compliant with ISO 8573-1 |
| Calibration |
Calibration reports or certificates; software-guided procedure with sample instruments |
| Pressure Regulator |
Electronic, with dedicated pressure transducer to visualize regulated pressure on display;
alternatively manual regulator
|
| Display & Keyboard |
7" colour TFT LCD display with resistive touchscreen |
| Indicators |
4 LED lights (testing phases, pass / reject outcome) |
| Test Counter |
Passed and rejected totals, resettable to zero |
| Audible Alarm |
Built-in beeper with programmable duration |
|
Programmable
Parameters
|
300 testing tables with sequential mode, general parameters, volume calculation to
indicate leak rate in cm³/min or cm³/h
|
| Digital I/O |
|
| Digital I/O |
8 (+8 optional) programmable inputs and 8 (+8 optional) programmable outputs |
| USB |
|
| USB |
2 x host (firmware update, barcode reader optional, data collection, backup and restore);
1 x slave (computer interface)
|
| Serial Lines |
|
| Serial Lines |
1 x port configurable RS232 / RS485 |
| Interfaces & Protocols |
|
| Interfaces & Protocols |
Profinet, Profibus, Modbus RTU / TCP/IP, CSV ASCII, barcode, QR code, printer, jServer |
| Connector |
|
| Stäubli® Connector |
Standard, for Leak Masters |
| Mechanical |
|
| Housing |
Unpainted anodized aluminium |
