Marposs X7-CF HIGH END PROCESS MONITORING FOR METAL FORMING

In metal forming plants the biggest headache is unpredictable tool wear and sudden machine stops. When a press fails or a part is out of tolerance, the line loses time and money. Operators often have no clear view of force, temperature or vibration during each stroke, so they cannot act before damage occurs. The Marposs X7-CF HIGH END PROCESS MONITORING FOR METAL FORMING gives you instant, accurate data and automatic alerts, so you can keep the process stable and avoid costly downtime.

Marposs X7-CF HIGH END PROCESS MONITORING FOR METAL FORMING with Marposs

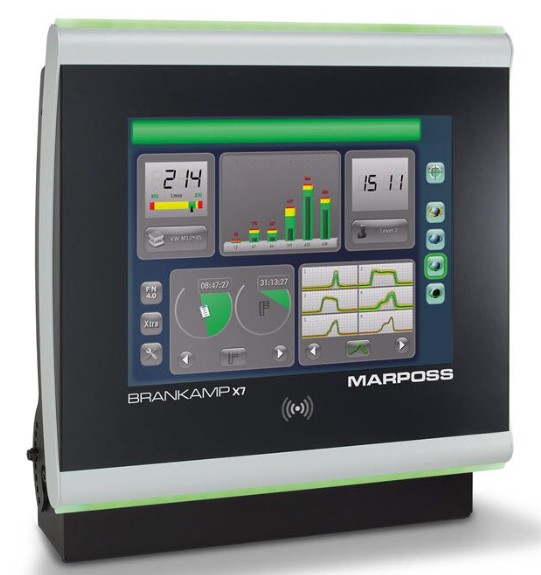

Imagine seeing every pressure peak, temperature rise and acoustic signal on a clear touchscreen as the machine runs. That is what the X7-CF does. It is a high-end process monitoring system designed for metal forming operations. The unit connects to force sensors, temperature probes and sound detectors, then turns raw signals into easy-to-read graphs and warnings. If a tool is about to break, the system warns you before the part is ruined. Marposs built this solution to give you confidence in every press cycle.

Key Features

• 15-inch high-resolution LCD touch display with multicolor LED warning lamp.
• 4 to 32 analog channels and up to 20 digital I/O for flexible sensor wiring.
• Supports force, acoustic emission, distance, temperature and binary sensors.
• Advanced monitoring methods such as Quattromatic, Zoom, Peak and PQ monitoring.
• Machine and tool protection functions with automatic gain and envelope calculation.
• Data storage for production, fault and trend information with extensive tool memory.
• RFID-controlled user management for secure access and change tracking.
• Two Ethernet ports and two USB ports for Industry 4.0 integration and remote support.
• Built-in productivity analysis that records run-time, setup-time and downtime.
• Sorting control that separates good and bad parts in real time.

Specifications
