Looking for a scanner that can keep up with fast moving parts on the factory floor? The MARSON MT6228E 2D, 1080 x 1280 650nm Laser Diode, Fixed Mount Industrial Scanner is built for that exact need. It captures clear images even when objects zip past at 2 m/sec, so you never miss a defect or a barcode. If you struggle with blurry reads or slow cycle times, this scanner gives you the speed and accuracy you need to stay productive.

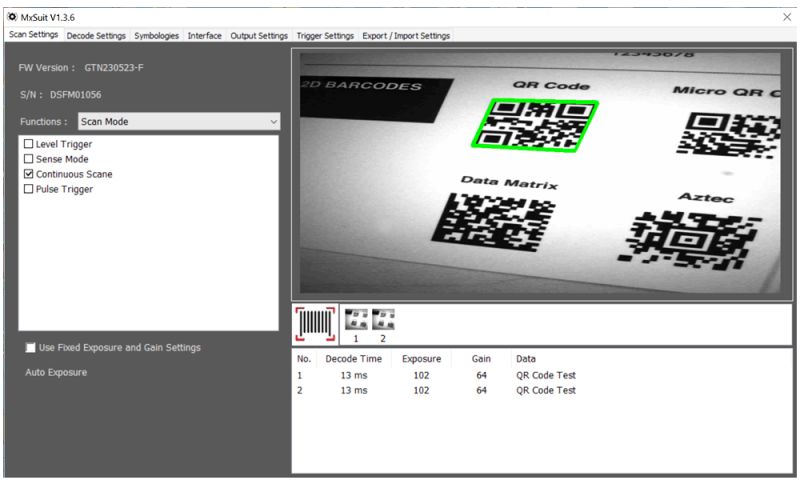

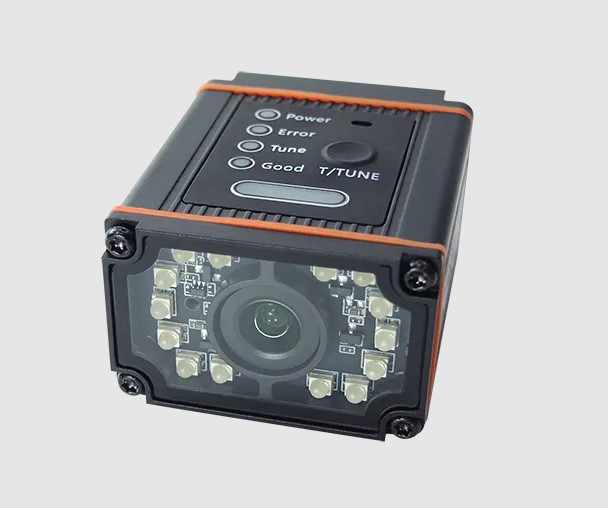

MARSON MT6228E 2D, 1080 x 1280 650nm Laser Diode, Fixed Mount Industrial Scanner

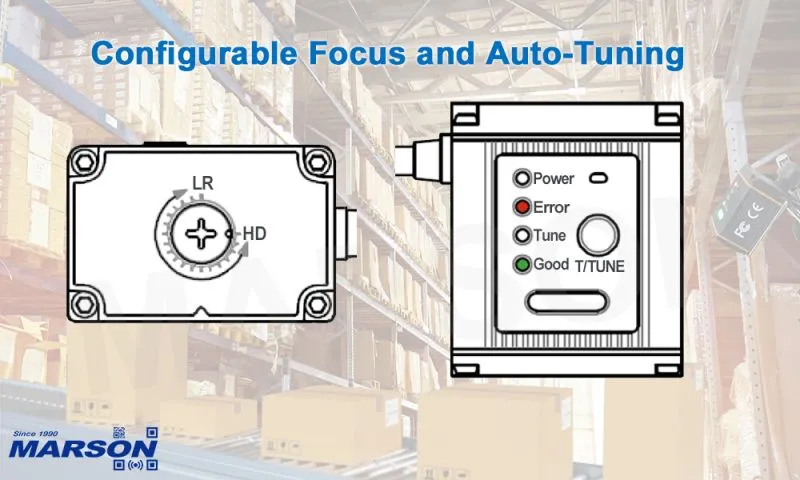

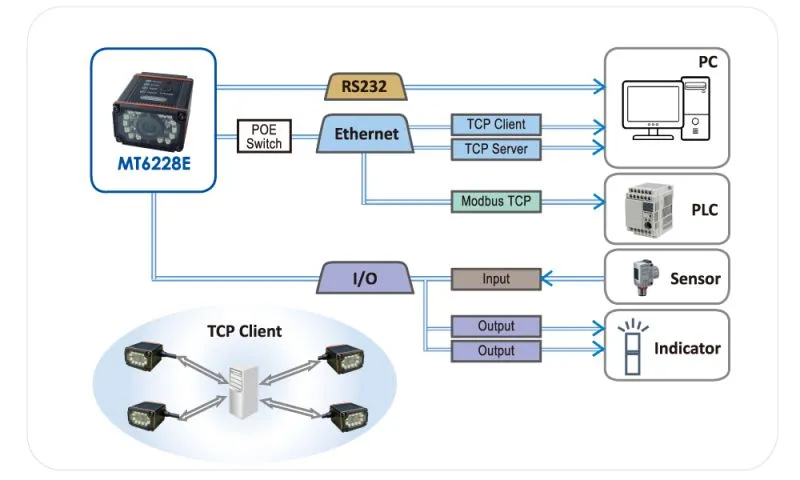

Many industrial vision systems fail when lighting changes or when parts move quickly. That problem creates bottlenecks and costly re-work. The MT6228E solves it by using a 650 nm laser diode and a high-resolution 1080 x 1280 sensor that work together under bright ambient light up to 100 000 lux. Its fixed mount and IP64 sealing keep the unit safe from dust and splashes, while Ethernet and RS232 interfaces let you integrate it easily into existing PLC or PC setups.
Key Features
- Visible red LED and 650 nm laser diode light source.
- Resolution 5 mil (1D) and 10 mil (2D) for precise detection.
- Horizontal scan angle 29, vertical 34 for wide coverage.
- Pitch, skew, and roll angles 55, 360 rotation capability.
- Operation voltage 12-24 VDC, current < 750 mA.
- Standby current < 100 mA to save energy.
- RJ45 and D-sub 9 connectors with 30 cm fixed and 100 cm interchangeable cables.
- Optoisolated input and two optoisolated outputs for good/NG signals.
- Temperature range 0 ~ 50 C, storage -30 ~ 70 C.
- IP64 sealing and ESD protection up to 8 kV contact.
- Compliant with WEEE and RoHS 2.0 standards.
- Mounting bracket and two machine screws included for quick installation.
Specifications
| Optic & Performance |
|
| Light Source |
Visible red LED |
| Light Source |
650nm Laser Diode |
| Sensor |
1080 x 1280 |
| Motion Tolerance |
2M/sec |
| Resolution |
LR: 5mil (1D), 10mil (2D) |
| Scan Angle |
Horizontal 29° |
| Scan Angle |
Vertical 34° |
| Pitch Rate |
±55° |
| Skew Angle |
±55° |
| Roll Angle |
360° |
| Print Contrast Ratio |
20% |
| Typical D.O.F (Environment: 800 lux) |
LR |
| Physical Characteristics |
|
| Dimension |
W44 x L52 x H29 mm |
| Weight |
126 g |
| Color |
Black |
| Material |
Aluminum Alloy |
| Connector |
RJ45 / D-sub 9 |
| Cable |
30cm (Fixed section) |
| Cable |
100cm (Interchangeable section) |
| Trigger |
Auto-sensing, Software Trigger |
| Indicator |
LED, Buzzer |
| Electrical |
|
| Operation Voltage |
12 ~ 24VDC |
| Working Current |
< 750mA± 5% |
| Standby Current |
< 100mA± 5% |
| Connectivity |
|
| Interface/Profile |
Ethernet (TCP Client/ TCP Server/ Modbus TCP) |
| Interface/Profile |
RS232 |
| External Input/Output |
1 Optoisolated Input (NPN/PNG/Relay) |
| External Input/Output |
2 Optoisolated Output (Good/NG) |
| User Environment |
|
| Operating Temperature |
0 ~ 50˚C |
| Storage Temperature |
-30 ~ 70˚C |
| Humidity |
0% ~ 95% RH (Non-condensing) |
| Sealing |
IP64 |
| Ambient Light |
100,000 Lux (Sunlight) |
| Regulatory |
|
| ESD |
Functional after 8KV contact, 20KV air discharge |
| EMC/RF |
TBA |
| Safety Approval |
TBA |
| Environmental |
WEEE, RoHS 2.0 |
| Accessory |
|
| Screw |
Machine Screw x 2 |
| Mounting Bracket |
Mounting Bracket, 90 degrees, Silver x 1 |
