When you need to test or develop high-voltage DC equipment, the biggest obstacle is getting a power source that can both supply and absorb energy without wasting it. Without a reliable supply, test time grows, costs rise, and safety can be compromised. The Matsusada PBR1500V30A15kW 1500V 30A Bidirectional Regenerative DC Power Supply solves this by delivering precise voltage and current while feeding excess power back to the grid, keeping your lab efficient and safe.

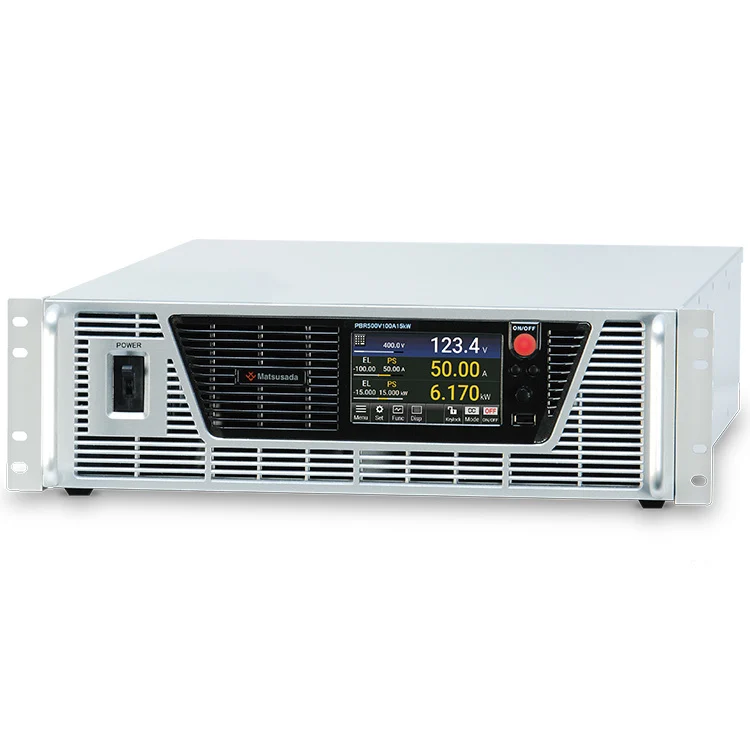

Matsusada PBR1500V30A15kW 1500V 30A Bidirectional Regenerative DC Power Supply with Matsusada
Imagine a single unit that can act as a source, a load, and a battery simulator all at once. That is what this Matsusada power supply does. It is built for engineers who need to drive EV inverters, cycle batteries, or test on-board chargers with exact control. If you have ever struggled with separate supplies and loads, you will see why this product is essential for accurate, repeatable results.
Key Features
- Output range 80 V to 1500 V DC.
- Maximum output 30 A at 1500 V, delivering 15 kW.
- Bidirectional operation: source and regenerative load in one chassis.
- CV / CC / CP control modes for voltage, current, or power regulation.
- Built-in battery simulation for realistic load profiles.
- Sequence programming up to 1024 steps for complex test cycles.
- Optional LAN, RS-232, RS-485, CAN, or optical interfaces for remote control.
- Real-time monitoring of voltage, current, power, status, and alarms.
- High-efficiency forced-air cooling keeps temperature stable.
- 3U rack-mount design saves space in crowded labs.
Specifications
| General Information |
|
| Model |
PBR1500V30A15kW |
| Series |
PBR Series (Bidirectional Regenerative DC Power Supply) |
| Manufacturer |
Matsusada Precision |
| Product Type |
Bidirectional DC power supply / regenerative electronic load |
| Output Specifications |
|
| Output Voltage Range |
80 to 1500 V DC |
| Output Current |
Up to 360 A (series max capability) |
| Rated Model Output |
1500 V / 30 A / 15 kW |
| Output Power |
15 kW |
| Function |
Source (DC supply) ⇄ Sink (regenerative load) |
| Energy Recovery |
Regenerates power back to AC grid |
| Control Modes |
CV / CC / CP (constant voltage/current/power) |
| Battery Simulation |
Built-in battery simulation function |
| Input & Programming |
|
| AC Input |
200–240 VAC (3-phase or single depending model) |
| Programming |
Sequence control up to 1024 steps |
| Interfaces & Monitoring |
|
| Interfaces (options) |
LAN / RS-232 / RS-485 / CAN / Optical |
| Monitoring |
Voltage, current, power, status, alarms |
| Expansion & Cooling |
|
| Parallel Operation |
Up to 150 kW system expansion |
| Form Factor |
3U rack mount high power density chassis |
| Cooling |
High-efficiency forced air cooling |
| Protection |
|
| Protection Features |
OVP / OCP / OPP / interlock / fuse protection |
| Applications |
|
| Applications |
EV inverter testing, battery cycling, OBC, V2H, BESS |
