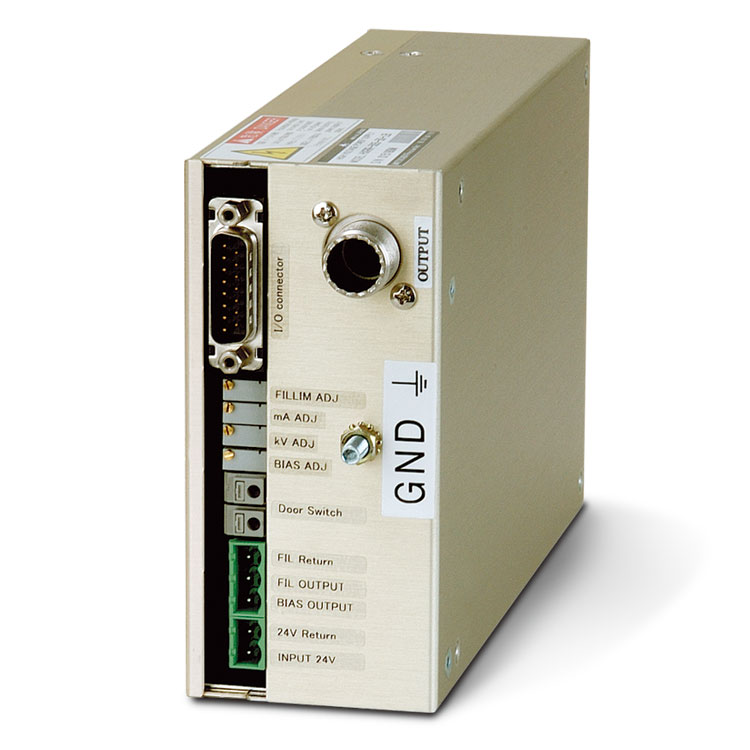

Matsusada XRR-505-50 50kV 50W High Voltage X-Ray Power Supply Module Chassis

When an X-ray system cannot keep the voltage steady, the image quality drops and the tube can overheat or fail. This creates costly downtime for labs, hospitals, and industrial users. You need a power supply that delivers exact voltage, protects the tube, and lets you control the output easily. The Matsusada XRR-505-50 50kV 50W High Voltage X-Ray Power Supply Module Chassis provides that reliable, precise performance, so you can run your equipment without interruptions.

Matsusada XRR-505-50 50kV 50W High Voltage X-Ray Power Supply Module Chassis with Matsusada

This is a compact, high-voltage module designed for grounded-cathode X-ray tubes. It gives you up to 50 kV and 50 W with tight regulation, so the beam stays stable during long exposures. If you have struggled with voltage drift or frequent tube trips, this unit solves those issues with built-in protection and easy remote control. Matsusadas reputation for precision engineering means you get a supply that meets demanding research and production standards.

Key Features

• Output voltage: 0 to 50 kV DC
• Output power: 50 W
• Maximum current: 1 mA
• Filament supply: 3.5 V / 3.5 A, adjustable
• Input voltage: 24 V DC 10 %
• Local potentiometer and remote 0-10 V control options
• Analog monitoring of voltage and current (0-10 V)
• Regulation: 0.01 % line/load
• Stability: 0.05 % over 8 hours
• Protection: over-voltage, over-current, arc, short-circuit, interlock
• Operating temperature: 0 to 50 C
• Designed for grounded-cathode X-ray tubes

Specifications
