When you measure parts with a hand-held gauge, you often spend minutes reading numbers, writing them down, and checking tolerances. Small mistakes can cost time, scrap, or re-work. In a busy shop floor those errors add up and affect profit. The MetLogix GX200 Advanced Touchscreen Digital Gauge Readout with Formula Engine turns that slow, error-prone process into a fast, accurate, and automated workflow.

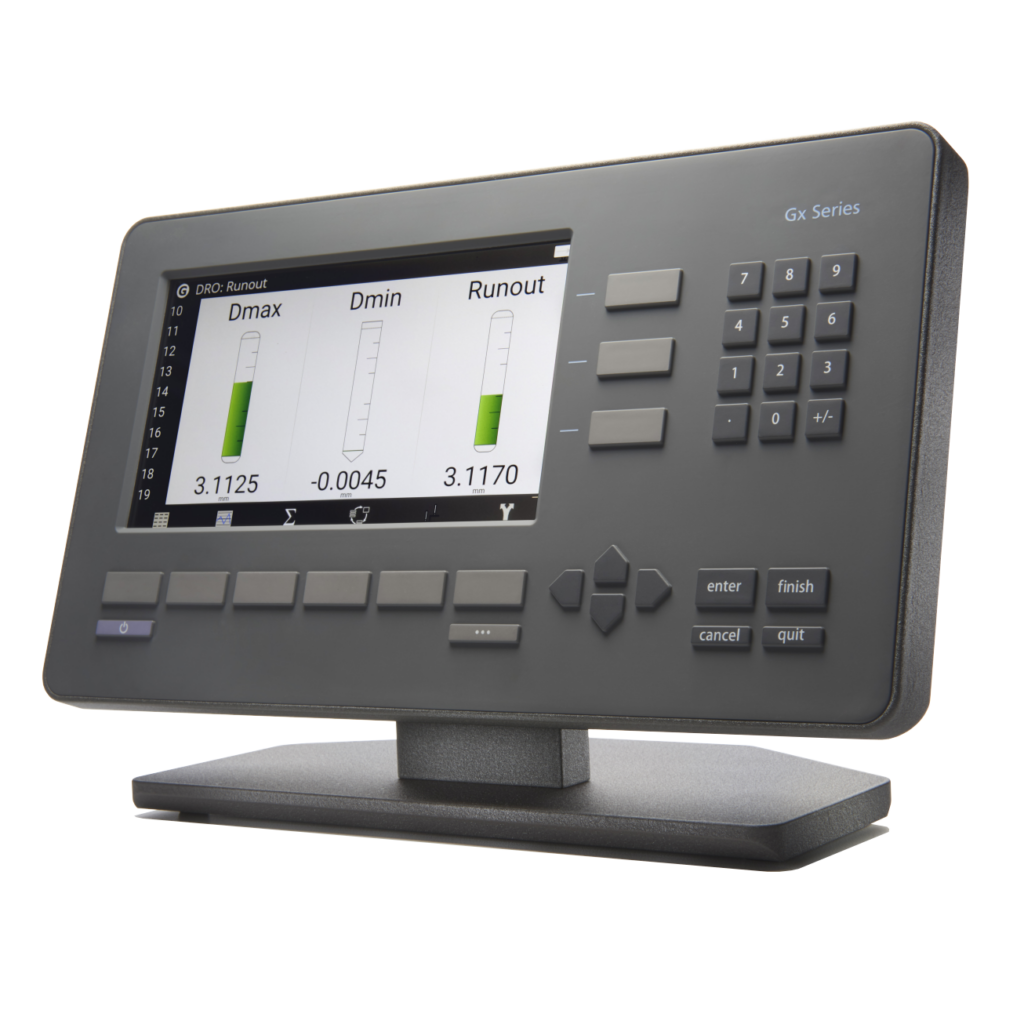

MetLogix GX200 Advanced Touchscreen Digital Gauge Readout with Formula Engine with MetLogix
Turn slow, error-prone gauging into instant, reliable data. This device is a digital readout that connects to analog or digital length gauges and shows the result on a clear touchscreen. It also includes a powerful formula engine so you can calculate derived values right on the screen. If you need precise measurements, quick pass/fail checks, and easy data export, this MetLogix system gives you exactly that.
Key Features
- Touchscreen interface with intuitive DRO views.
- Supports 2, 4, 8 or up to 16 input channels.
- Compatible with analog gauges, digital length gauges, LVDT probes, and Solartron Orbit network.
- Multiple data views: numeric, bar graph, dial gauge, statistical.
- Advanced formula engine for custom calculations and logic.
- Statistical functions include min, max, average, standard deviation, and 6.
- Tolerance display with upper and lower limits for quick pass/fail.
- Part records database stores measurements in a table.
- Data export options: USB storage, RS232, Wi-Fi printer, wireless app transfer.
- Communication interfaces include USB, RS232, GPIO, Wi-Fi, and footswitch input.
Specifications
| General Information |
|
| Manufacturer |
MetLogix |
| Product Name |
GX200 Digital Readout |
| Product Type |
Digital Gauge Readout / Measurement System |
| Display & Measurement |
|
| Display Type |
Touchscreen interface |
| Measurement Capability |
Single or multi-point gauge measurement |
| Input Channels |
2 / 4 / 8 channel configurations (depending on setup) |
| Max Channels (advanced interface) |
Up to 16 channels (Solartron Orbit interface) |
| Probe Compatibility |
Analog and digital length gauges, LVDT probes, air-to-electronic interface,
Solartron Orbit® network
|
| Data Views |
Numeric, bar graph, dial gauge, statistical view |
| Functions & Features |
|
| Statistical Functions |
Min, Max, Range, Average, Standard Deviation, 6σ |
| Formula Capability |
Advanced formula engine with logic and math functions |
| Part Records Database |
Yes (tabular measurement storage) |
| Tolerance Display |
Pass/Fail with upper & lower limits |
| Data & Communication |
|
| Data Export |
USB storage, RS232, Wi-Fi printer, wireless transfer via app |
| Communication Interfaces |
USB, RS232, GPIO, Wi-Fi, footswitch input |
| Programming Methods |
Internal formula builder, keyboard entry, external script upload |
| User Interface & Applications |
|
| User Interface |
Touchscreen with intuitive DRO views |
| Application Types |
Single & multi-point gauging systems |
