Tired of guessing measurements on the shop floor? The METRO M400 Digital Readout 45500 7 Multi-Channel Gauge Display Touch Screen gives you instant, reliable numbers right where you need them. It connects to many probe types and shows up to 32 characteristics at once, so you never have to pause and calculate by hand. If you need accurate data for quality control, this display solves the delay and error that slow down production.

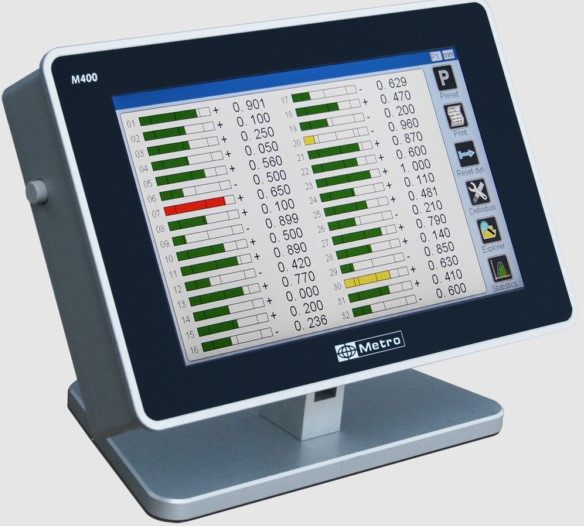

METRO M400 Digital Readout 45500 7 Multi-Channel Gauge Display Touch Screen
Many shops struggle with scattered gauge information and limited screen space. When data is hidden or hard to read, mistakes creep in and scrap rises. The M400 gathers up to 99 probe inputs and presents them on a clear 7-inch TFT touchscreen. You can watch several dimensions together, run SPC charts, and store up to 1,000 measurements per part. The result is faster decisions, fewer errors, and a smoother workflow.
Key Features
- 7-inch TFT touchscreen with touch control.
- Supports 1-99 probes or inputs.
- Displays up to 32 characteristics simultaneously.
- Compatible with inductive, air, digital, encoder, and capacitive sensors.
- Works with major probe brands such as Mahr, Mitutoyo, Heidenhain.
- SPC functions including histogram, Pareto, run chart.
- Stores up to 1,000 measurements per part reference.
- Memory for 128 part references.
- USB, RS232, Modbus RTU, optional Profinet connectivity.
- Optional Ethernet (MB-NET) and I/O (MB-IO) modules for automation.
- Internal scripting for simple PLC-like logic.
- Front panel resistant to oil and liquid splashes.
Specifications
| General Information |
|
| Manufacturer |
METRO (Metrology) |
| Product Name |
M400 Digital Readout for Gauging Probes |
| Reference / Art. No. |
45500 |
| Display & Measurement |
|
| Display Type |
7" TFT Touchscreen |
| Measurement Capacity |
1 to 99 probes / inputs |
| Simultaneous Display |
Up to 32 characteristics |
| Sensor Compatibility |
Inductive, air gages, digital probes, incremental encoders, capacitive sensors |
| Probe Brands Supported |
Mahr, Mitutoyo, Heidenhain, Tesa, Marposs, Solartron etc. |
| Functions & Data Processing |
|
| SPC Functions |
Yes |
| Statistical Functions |
Histogram, Pareto, run chart analysis |
| Data Storage |
Up to 1,000 measurements per part reference |
| Part Memory |
Up to 128 part references |
| Communication & Automation |
|
| Communication |
USB, RS232, Modbus RTU, Profinet (via module) |
| Network Module |
MB-NET Ethernet acquisition system available |
| Automation Interface |
MB-IO module with 8 I/O inputs/outputs |
| Programming Capability |
Internal scripting (automation / PLC-like logic) |
| Construction & Installation |
|
| Housing Material |
Machined aluminium housing |
| Protection |
Front panel resistant to oil/liquid projections |
| Mounting Options |
Table or panel mount |
| System Information |
|
| Operating System |
Proprietary Metro OS (not Windows-based) |
| Reference Code |
45500 (M400 display unit) |
