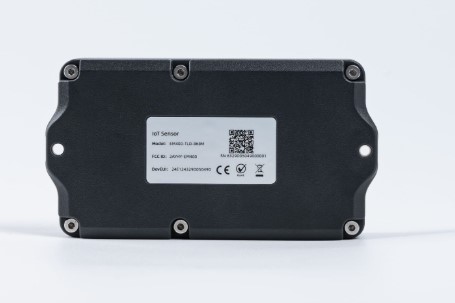

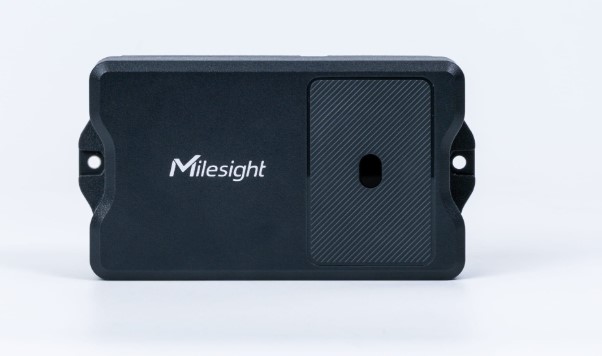

Milesight EM400-TLD LoRaWAN ToF Laser Distance Sensor

Keeping track of the level of a tank, bin or silo can be hard when the site is far away or hard to reach. If you cannot see the inside, you risk overflow, dry-run or wasted space. Traditional wired sensors need cables, power and regular maintenance, which adds cost and downtime. The Milesight EM400-TLD LoRaWAN ToF Laser Distance Sensor solves this by giving you accurate distance readings, wireless data and a battery that lasts years, so you can monitor remotely without hassle.

Milesight EM400-TLD LoRaWAN ToF Laser Distance Sensor with Milesight

Say goodbye to blind spots in your industrial sites. The EM400-TLD is a compact laser sensor that measures distance from 2 to 350 cm with 2 cm accuracy. It talks over LoRaWAN, so the data travels up to 15 km without any cables. You can mount it on a wall or a lid and let it run on two long-life batteries for up to ten years. If you need to know the level of a waste bin, the height of a water tank or whether a container has been tipped, this device gives you the numbers you need, instantly and reliably.

Key Features

• Detection range 2 - 350 cm with 1 mm resolution.
• 27 field of view covers a wide area.
• 3-axis accelerometer reports normal and tilt status.
• NTC temperature sensor works from -40 C to 125 C.
• Two 9000 mAh Li-SOCl batteries supply up to ten years.
• Class A LoRaWAN OTAA/ABP mode for secure network join.
• EU868 MHz frequency with 16 dBm transmit power.
• Up to 15 km line-of-sight connectivity.
• ABS + PC flame-retardant housing meets IP67 rating.
• Easy configuration via NFC or mobile app.

Note: This product is compatible with UK, Europe, and other EU868-supported countries. Not compatible with USA/Canada (US915), Australia (AU915), or other LoRaWAN frequency regions.
