Keeping an eye on temperature in remote or harsh locations can be hard. If the sensor fails or sends wrong data, you may lose product quality, waste energy, or miss a safety alarm. The Milesight EM500-PT100-868M-T050, 868MHz Platinum Temperature Sensor solves this by giving you precise, long-lasting readings over a secure LoRaWAN link. It works even when power is limited and the environment is extreme.

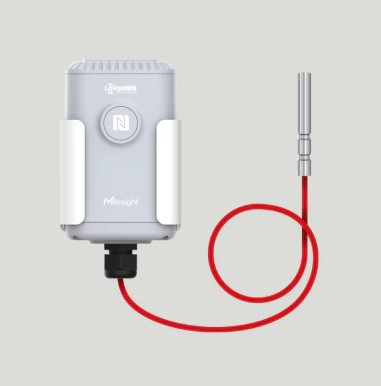

Milesight EM500-PT100-868M-T050, Platinum Temperature Sensor with Milesight
You need a sensor that never quits and tells you the exact temperature every few minutes. This device is a LoRaWAN PT100 temperature sensor built by Milesight. It sends data at 868 MHz, stores up to 1,000 readings, and can alert you when limits are crossed. If you have a cold-chain, a factory line, or an outdoor installation, this sensor gives you the confidence that temperature stays where it should.
Key Features
- 868 MHz EU frequency for reliable LoRaWAN communication.
- Internal antenna simplifies installation.
- Tx power 16 dBm and sensitivity -137 dBm for strong signal reach.
- Class A OTAA / ABP mode supports secure network join.
- Measurement range -200 C to 50 C (standard) and -200 C to 800 C (custom).
- Resolution 0.1 C with 0.5 C accuracy around 0 C.
- 3-wire PT100 connection and 1.5 m Teflon cable for harsh environments.
- Battery: 1 19000 mAh Li-SOCl, up to 10 years life.
- Data storage for 1,000 entries and automatic retransmission.
- Threshold and change alarms, plus Milesight D2D controller.
- Configuration via NFC, mobile app, USB-C, or PC software.
- CE, FCC, ISED, ICASA, Telec certifications for global use.
Note: This product is compatible with UK, Europe, and other EU868-supported countries. Not compatible with USA/Canada (US915), Australia (AU915), or other LoRaWAN frequency regions.
Specifications
| Manufacturer |
Milesight IoT |
| Model |
EM500-PT100-868M |
| Product Type |
LoRaWAN® PT100 Temperature Sensor |
| Wireless Transmission |
|
| Technology |
LoRaWAN®, Milesight D2D |
| Antenna |
Internal Antenna |
| Frequency |
EU868 MHz |
| Tx Power |
16 dBm (868 MHz) |
| Sensitivity |
-137 dBm @ 300 bps |
| Mode |
OTAA / ABP Class A |
| Measurement (PT100 Sensor) |
|
| Connection Type |
3-wire connection |
| Range |
T050: -200 °C ~ 50 °C |
| Custom Range |
-200 °C ~ 800 °C |
| Resolution |
0.1 °C |
| Physical Characteristics (Transceiver) |
|
| Power Supply |
1 × 19000 mAh Li-SOCl₂ battery |
| Battery Life |
Up to 10 years (10 min interval, 25 °C) |
| Operating Temperature |
-30 °C ~ 70 °C |
| Relative Humidity |
0% ~ 100% (non-condensing) |
| Ingress Protection |
IP67 |
| Housing & Color |
ABS + PC, Grey |
| Weight |
362.7 g (with battery, mounting bracket and probe) |
| Dimensions |
105.4 × 71 × 69.5 mm |
| Installation |
Pole / Wall / DIN rail mounting |
| Sensor Physical Characteristics |
|
Accuracy Class
|
B |
| Accuracy |
± 0.5°C (-40°C~40°C), ± 1°C (-140°C~50°C), ±1.5°C (-200 °C~-140 °C ) |
| Probe |
304 Stainless
Steel, Φ4*30 mm, IP30 |
| Cable Length |
1.5 m (customizable) |
| Cable |
Teflon, -200°C~290°C |
| Installation |
Contact |
| Features |
|
| Configuration |
NFC / Mobile App / USB Type-C / PC software / Downlink |
| Advanced Features |
Data storage (1,000 entries), data retransmission, data retrievability, threshold alarm, change alarm, Milesight D2D controller |
| Approvals |
|
| Regulatory |
CE, FCC, ISED, ICASA, Telec |
| Environmental |
RoHS |
