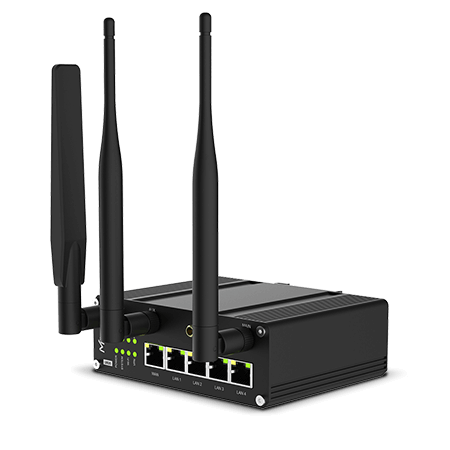

Milesight UR35 (Pro Series) Industrial Cellular Router
Milesight UR35 (Pro Series) Industrial Cellular Router

Milesight UR35 (Pro Series) Industrial Cellular Router

UK Free Shipping UK Free Shipping over £249

Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: RUEL-019

MPN #: UR35 (Pro Series)

Ultra-Reliable Protection System



  • Quick Network Backup
    Automated failover/failback backup among Ethernet, Cellular(dual SIM), and Wi-Fi
  • Embedded Watchdog
    Embedded with hardware watchdog to automatically recover from various failures
  • Security Protection
    Equipped with multiple security protection measures such as ACL, DMZ, SYN-Flood protection, and data filtering to ensure that the network is secured.



Features:



  • Industrial Grade Design for Harsh Environment
  • Rugged But Exquisite Design
  • Embedded Python SDK for Secondary Development
  • Ultra-High Protection System
  • Rich Interfaces for Multiple Applications
  • Stable Cellular, Ethernet and Wi-Fi Transmission
  • Open VPN Tunnel and Various Protocols (Including DLMS/Modbus)
  • Remote Management on MilesightVPN and DeviceHub

Hadware Specifications:
CPU ARM Cortex-A7,528 MHz
Memory 128 MB DDR3 RAM and 128MB Flash
Extendable Storage 1 × Micro SD Slot
Cellular Interface
Network 4G LTE (CAT 4)/WCDMA/GSM (Differ as regions)
Antenna Connector 2 × 50 Ω SMA Connectors (Center PIN: SMA Female)
SIM 2 × SIM Slot (Mini SIM-2FF), 1.8V/3V
Tx Power LTE: Class 3 (23 dBm ± 2 dB)
Ethernet Interface
Numbers 5 × RJ45 10/100 Mbps
Property 1 × WAN + 4 × LAN
Mode Full or half duplex (Auto-Sensing)
Ethernet Isolation 1.5 kV RMS
PoE (Optional) 4 × 802.3 af/at PoE PSE on LAN Ports
Wi-Fi Interface (Optional)
Antenna Connector 1 × 50 Ω SMA Connector (Center PIN: RP-SMA Female)
Standards IEEE 802.11 b/g/n,2.4GHz
Tx Power 802.11b: 16 dBm +/-1.5 dBm (11 Mbps)
Tx Power 802.11g: 14 dBm +/-1.5 dBm (54 Mbps)
Tx Power 802.11n: 13 dBm +/-1.5 dBm (65 Mbps, HT20/40 MCS7)
GNSS (Optional by Region)
Antenna Connector 1 × 50 Ω SMA Connector (Center PIN: SMA Female)
Technology GPS/GLONASS/BDS/Galileo/QZSS
Positioning Accuracy 2.5m CEP (Open Air)
Serial Port
Numbers 1 × RS232 + 1 × RS485
Connector 3.5mm Terminal Block
Baud Rate 300bps to 230400bps
DI/DO
Numbers 1 × DI + 1 × DO, Galvanic Isolation
Connector 3.5mm Terminal Block
Digital Input Dry Contact
Digital Output Wet Contact, maximum 0.3A@30VDC
Others
Reset Button 1 × RESET
LED Indicators 1 × POWER, 1 × SYSTEM, 1 × SIM, 1 × Wi-Fi, 1 × VPN, 3 × Signal strength
Power Connector 1 × 2-pin 5.08 mm Terminal Block, with Surge-Protection and Reverse Polarity Protection
Built-in Watchdog, Timer
Power Supply and Consumption
Power Input 9-48 VDC(48V is need for PoE)
Power Output (Optional) 4 × 802.3 af/at PoE PSE on LAN Ports
Power Output (Optional) Per Port 30W Max., Total 60W Max.
Power Consumption Typical 3.9 W, Max 4.6 W (In Non-PoE mode)
Physical Characteristics
Ingress Protection IP30
Housing & Color Metal, Black
Weight 485 g
Dimension 135 x 103 x 45 mm (5.31 x 4.06 x 1.77 in)
Installation Desktop, Wall Screw Mounting, DIN Rail Mounting
Environmental
Operating Temperature -40°C to +70°C (-40°F to +158°F)
Operating Temperature Reduced Cellular Performance Above 60°C
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Relative Humidity 0% to 95% (non-condensing) at 25°C/77℉
Approvals
Regulatory CE, FCC, RCM, JATE, Telec
Environmental RoHS
EMC EN 55032, EN 55035
EMS IEC 61000-4-2 Level 3
EMS IEC 61000-4-3 Level 2
EMS IEC 61000-4-4 Level 3
EMS IEC 61000-4-5 Level 3
EMS IEC 61000-4-6 Level 3
EMS IEC 61000-4-8 Level 4
EMS IEC 61000-4-11 Level 3
Radio Frequency

EN 301 489-1/17/19/52, EN 301 511,

EN 301 908-1/2/13, EN 303 413, EN300 328
Safety EN62368-1





Software Specifications:
Network
Network Protocols

IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2,

OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet,

VLAN, SSH, MQTT, MQTTS, TR069, etc.
Routing Static Routing, Priority Based Routing, RIP, OSPF
DDNS Supported >16 service providers, others can be configured manually
QoS Upload/Download Bandwidth Limit
IP Passthrough Support to assign WAN IP address to the device on LAN
Reliability VRRP, WAN Failover, Dual SIM Backup
Diagnostics Tools

Ping, Traceroute, TCPDUMP, QXDM, Log Server,

Cellular AT Command Debugger, Firewall iptables Debugger
Wi-Fi Interface (Optional)
Modes AP or Client mode
Security WEP/WPA-PSK/WPA2-PSK/WPA-EAP/WPA2-EAP authentication, TKIP/AES encryption
Wi-Fi Users Up to 15 simultaneous connections
MAC Filter Blacklist, Whitelist
GNSS (Optional by Region)
Protocol NMEA0183, PMTK
Mode Support reading by Serial Port, MQTT, TCP Client/Server, UDP Server
Security
Firewalls Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls,
Firewalls DoS&DDoS Protection, Filtering(IP&Domain)
VLAN Port and tag-based VLAN separation
AAA Radius, Tacacs+, LDAP, Local Authentication, 802.1x
Multilevel Authority Multiple Levels of User Authority
VPN
OpenVPN Multiple Clients and a Server Support
IPsec Multiple Clients and a Server Support
GRE GRE Tunnel Support
L2TP L2TP Client Support
PPTP PPTP Client Support
DMVPN DMVPN Spoke Support
WireGuard Support
ZeroTier Support
Others
Serial Mode

Transparent(TCP Client/Server, UDP Server, MQTT Client), Modbus Server/Client,

Modbus Gateway (Modbus RTU to Modbus TCP), DLMS Client
Digital Input Support reading by SMS, Email, CLI, Modbus TCP/RTU Server, MQTT
Digital Output Support triggering by DI, SMS, CLI, Modbus TCP/RTU Server, MQTT
App Python SDK
Management
Configuration

Web, CLI (SSH/Telnet), SMS, On-demand dial up, SNMP v1/v2c/v3,

TR069, DeviceHub, Milesight Development Platform, HTTP(s) API
Update Web, DeviceHub, Milesight Development Platform
Device Management DeviceHub, Milesight Development Platform, MilesightVPN
SNMP SNMP v1/v2/v3, Support SNMP Trap
TR069 Support
SMS Send/Receive SMS, SMS Control, SMS Configuration
Event Alarm System Restart/Reboot, Network Up/Down, Link Switch, etc.
