Many home offices and small teams struggle with slow file access, limited AI tools, and cramped workspaces. When data moves slowly, projects stall and creativity suffers. The Minisforum AI NAS N5 MAX, AMD Ryzen AI Max+ 395, 64GB LPDDR5 RAM+128GB SSD packs powerful compute and fast storage into a compact box, giving you instant access and AI support without a large server room.

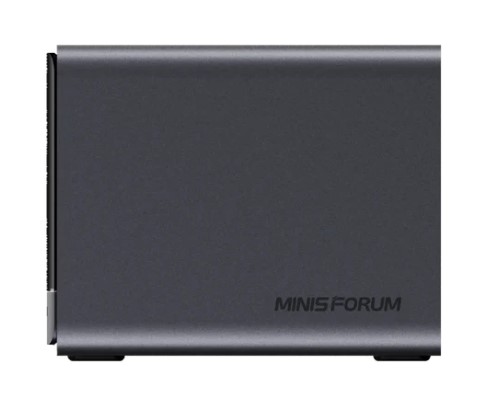

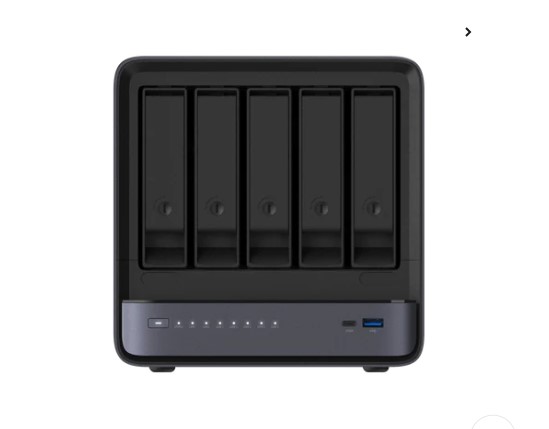

Minisforum AI NAS N5 MAX, AMD Ryzen AI Max+ 395, 64GB LPDDR5 RAM+128GB SSD with Minisforum
Imagine a tiny device that runs like a full-size server, stores all your files, and runs AI models in real time. This is the Minisforum AI NAS N5 MAX, a network-attached storage unit built for creators, developers, and small businesses. It solves the pain of laggy backups, missing AI power, and noisy equipment. With a Ryzen AI Max+ 395 CPU and 64 GB of LPDDR5 memory, you get desktop-grade speed in a 5-kg chassis.
Key Features
- AMD Ryzen AI Max+ 395 processor with up to 126 TOPS AI performance.
- AMD Radeon 8060S graphics, 40 cores, 2.9 GHz boost.
- 64 GB LPDDR5x unified memory, 8533 MT/s speed.
- 128 GB SSD for OS and quick cache.
- 5 heat pipes + PCM and dual turbo fans for efficient cooling.
- Two 10 GbE LAN ports for high-speed network storage.
- USB4 v2 ports supporting 80 Gbps and 15 W power delivery.
- HDMI 2.1 output up to 8K@60 Hz for direct display if needed.
- Supports MinisCloud OS, Windows 11 Pro, and Linux.
- Dimensions 199 202.4 252.3 mm, weight 5.8 kg - easy to place on a shelf.
Specifications
| CPU |
AMD Ryzen™ AI Max+ 395 |
| GPU |
AMD Radeon 8060S Graphics, 40 Graphics Cores, Graphics Frequency: 2900 MHz |
| AI Engine Capabilities |
AMD Ryzen™ AI Available, Overall AI Performance: Up to 126 TOPS, NPU Performance: Up to 50 TOPS |
| Memory |
LPDDR5x Unified Memory, Up to 64GB, Maximum Speed: 8533 MT/s |
| Storage |
128GB SSD |
| Cooling System |
CPU Cooling: 5 Heat Pipes + PCM (Phase Change Material),
CPU Fans: 2 × 80 × 15mm Turbo Fans (Up to 4700 RPM),
HDD Fans: 2 × 92 × 25mm Axial Fans (Up to 3700 RPM),
SSD Fan: 1 × 60 × 12mm Turbo Fan (Up to 5000 RPM),
Noise (Balance Mode): Max. 33 dB, Noise (Performance Mode): Max. 38 dB
|
| Wireless Connectivity |
N/A |
| Video Output |
1 × HDMI™ (Up to 8K@60Hz / 4K@144Hz), 1 × USB4 (Up to 8K@60Hz / 4K@144Hz),
2 × USB4 v2 (Up to 8K@60Hz / 4K@144Hz)
|
| Audio Output |
HDMI™ ×1, USB4 ×1, USB4 v2 ×2 |

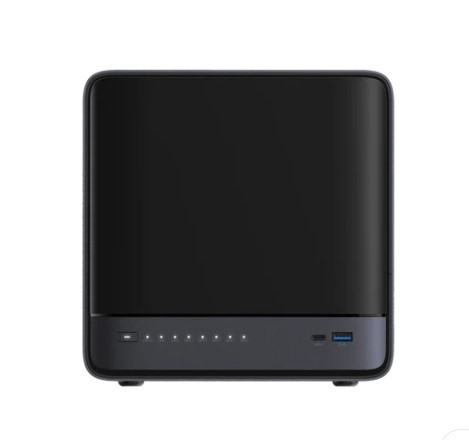

| Front I/O Ports |
1 × USB4 (40Gbps, Alt DP 2.0, PD Out 15W), 1 × USB 3.2 Gen2 |

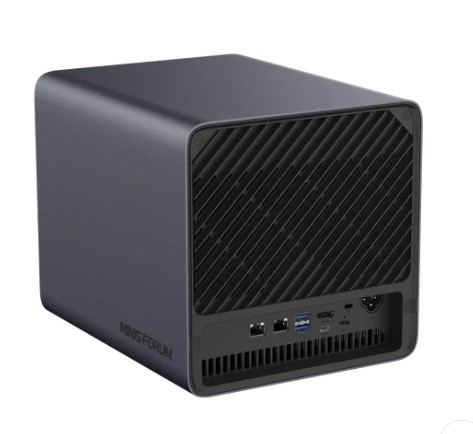

| Rear I/O Ports |
2 × 10GbE LAN (RTL8127), 2 × USB4 v2 (80Gbps, Alt DP 2.0, PD Out 15W),
1 × USB 3.2 Gen2, 1 × USB 2.0, 1 × HDMI™ 2.1 FRL, 1 × AC-IN
|
| Internal I/O Ports |
1 × USB 3.2 Gen2 |
| Other Features |
Power Button with LED ×1, Reset Hole ×1, Kensington Lock Hole ×1, Buzzer ×1, Status LED ×1, NIC LED ×2, HDD LED ×5 |
| Power Requirements |
100–240V AC, 50–60Hz, Single Phase, Maximum Power: 250W |
| Operating Temperature |
0°C to 35°C (32°F to 95°F) |
| Operating System |
MinisCloud OS, Windows 11 Pro, Linux |
| Dimensions |
199 × 202.4 × 252.3 mm |
| Weight |
5.8 kg |
