Imagine a workstation that fits on your desk but can still handle the toughest 3D render, AI model, or data set you throw at it. The Minisforum MS-S1 Max is a compact PC built for creators, engineers, and remote professionals who need raw power without a bulky tower. If you are tired of slow load times, dropped frames, or a machine that cant keep up with modern software, this mini workstation is the answer.

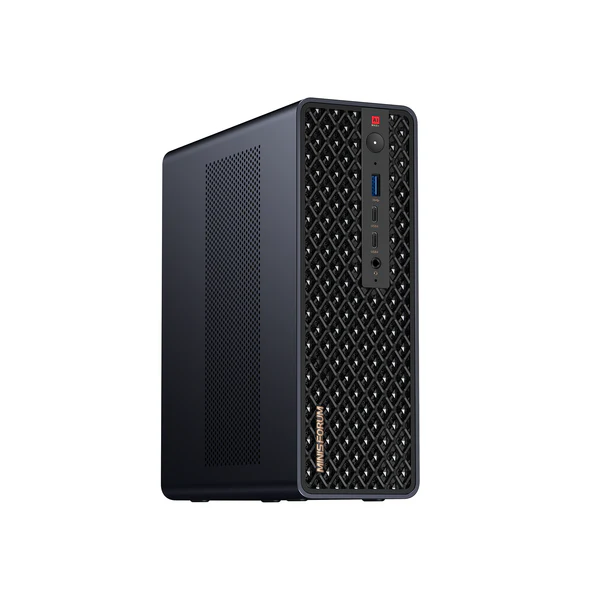

Minisforum MS-S1 Max, AMD Ryzen Al Max+ 395, 128GB/2TB Mini Workstation PC
Many users struggle with laptops that overheat or desktops that waste space. The problem matters because lost time and cramped work areas hurt productivity and creativity. This Minisforum model solves the issue with a 16-core Ryzen AI Max+ 395 CPU, up to 128 GB of LPDDR5x memory, and two fast 10 GbE ports, delivering desktop-class speed.
Key Features
- AMD Ryzen AI Max+ 395 processor, 16 cores / 32 threads, 5.1 GHz boost.
- AMD Radeon 8060S integrated graphics with up to 8K@60 Hz output.
- LPDDR5x-8000 MHz memory, expandable to 128 GB.
- Two M.2 2280 NVMe slots, PCIe 4.0 4, support up to 8 TB each.
- Wi-Fi 7 and Bluetooth 5.4 for fast wireless connections.
- Dual 10 GbE LAN ports (Realtek RTL8127) for wired networking.
- HDMI 2.1 with 8K@60 Hz / 4K@120 Hz support.
- Four USB-4 ports (including two USB-4 V2) delivering up to 80 Gbps.
- Power button, reset hole, and clear-CMOS for easy maintenance.
- Windows 11 Pro pre-installed, ready for professional software.
Specifications
| Processor |
|
| CPU |
AMD Ryzen™ AI Max+ 395, 16C/32T, Max. Turbo Frequency 5.1GHz |
| GPU |
AMD Radeon 8060S Graphics (Internal) |
| AI Engine Capabilities |
|
| AI Engine |
AMD Ryzen™ AI |
| AI Performance |
Up to 50 TOPS (NPU TOPS), Up to 126 TOPS (Overall TOPS) |
| Memory |
|
| Memory |
LPDDR5x-8000MHz 256-bit, Up to 128GB, Optional SKU DDR Capacity: 64G/128G |
| Storage |
|
| Storage |
1 × M.2 2280 NVMe SSD Slot (up to 8TB, PCIe 4.0 ×4), 1 × M.2 2280 NVMe SSD Slot (up to 8TB, PCIe 4.0 ×1)
|
| Networking |
|
| Wireless Connectivity |
WiFi 7 & Bluetooth 5.4 |
| Ethernet Controller |
2 × 10GbE LAN (RJ45), Module: Realtek RTL8127 |
| Video Output |
|
| Video Output |
1 × HDMI, 2 × USB4, 2 × USB4 V2, Up to 8K@60Hz/4K@120Hz |
| Audio Output |
|
| Audio Output |
HDMI × 1, 3.5mm Combo Jack (TRRS) × 1 |
| Audio Input |
|
| Audio Input |
DMIC × 2, 3.5mm Combo Jack (TRRS) × 1 |
| I/O Ports |
|
| Ports |
2 × 10GbE LAN (RJ45, Realtek RTL8127), 2 × USB 3.2 Gen2 (10Gbps), 2 × USB 2.0, 2 × USB4 (40Gbps, Alt DP2.0,
PD out 15W), 1 × HDMI 2.1 FRL (Up to 8K@60Hz/4K@120Hz), 2 × USB4 V2 (80Gbps, Alt DP2.0, PD out 15W),
1 × USB 3.2 Gen2 (10Gbps), 1 × 3.5mm Audio Combo Jack (TRRS), 2 × DMIC, Inside: PCIe x16 Slot (PCIe 4.0 ×4)
|
| Buttons |
|
| Button/Hole |
Power Button × 1, Reset Hole (Clear CMOS) × 1 |
| Mounting |
|
| VESA Mount |
100–178.5mm |
| Power |
|
| AC Input |
100-240V ~6A 50-60Hz, Internal DC 12V/26.7A, 320W MAX |
| Operating System |
|
| OS |
Windows 11 Pro, Compatible with Windows 11 24H2 Pro / Home |
| Physical |
|
| Dimensions |
222 × 206 × 77 mm (L × W × H) |
| Weight |
2.8 kg |
