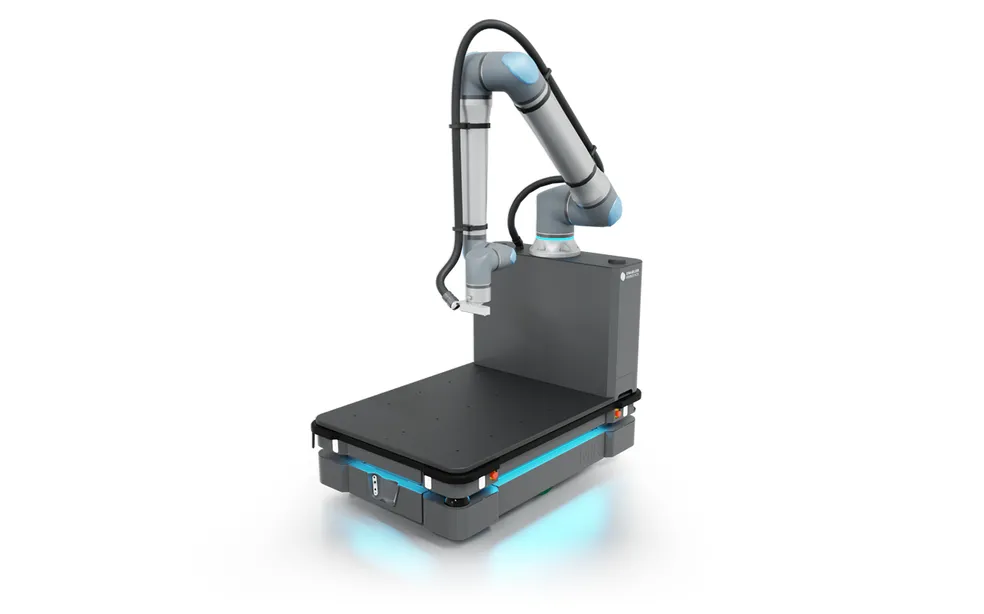

Name: MiR MC600 Autonomous Mobile Robot (AMR)
SKU: RBOT-010
Price: 1.8 USD
Availability: InStock

MiR MC600 Autonomous Mobile Robot (AMR)

UK Free Shipping

Description
Documents
Reviews

Product Information

The MC600 mobile cobot helps companies to automate internal logistics processes. The integrated software for developing smart applications means companies can use the MC600 for many different tasks, such as:

Machine tending in a loop sequence (24/7-365) to reduce downtime;
Line-site delivery
Transporting and handling materials to reduce the burden of repetitive tasks and ensure traceability; and
Replenishing supplies so employees can spend their valuable time solving other tasks.

As well as addressing the labor shortage and reducing the cost of automation for companies of any size, the MC600 enables a quick and easy switch between functions so that users who have no previous programming experience can put the robot to work in a matter of minutes.

Technical Information

Compatible with: MiR600
ER-ABILITY SOFTWARE
- User interface for scheduling
- Super-user interface for programming
- Block-based drag-and-drop programming
- Pre-programmed ‘blocks’ for ease of use
- Customizable ‘blocks’ are easy create
- Web-based interface that can be operated from your smartphone, tablet or computer

ER-VISION
- Calibration to markers (standard) – fast, reliable and precise calibration to 1 mm using markers, which are used on fixed positions, e.g., shelves, machines etc.
- 2D object detection and template matching (standard) – eliminates the need for markers, used for objects placed on flat surfaces, e.g., tables.

3D object detection and pose estimation (optional extra) – AI algorithms used to define the position of objects and how to grasp them without the need for markers

Specifications:

Arm Options
Arm model	UR20
Arm model	UR30
Arm payload	UR20: 20 kg
Arm payload	UR30: 30 kg
Arm reach (excluding tool)	UR20: 1750 mm
Arm reach (excluding tool)	UR30: 1300 mm
Physical
Footprint	1350 × 910 mm
Load space	1030 × 864 mm
Weight	460 kg
Transport payload	380 kg
Max driving speed	2 m/s
Power
Battery	34.2 Ah / 1.63 kWh
Operation	4 hours (100%–10%)
Utilization	18.5 hours per day
Environment
Humidity	10–95% non-condensing
Ambient temperature	5–40°C
Max ambient temperature	For 1 hour
IP rating	IP52
Arm and tower IP rating	IP54
Other
WiFi	Dual-band wireless b/a/g/n/ac
Vision precision	1 mm relative to markers
Safety
Laser scanners	Detects objects from afar, 360°
3D cameras	Detects objects taller than 40 cm
Proximity sensors	Scans floor surrounding robot
Protective stop	Arm enters protective stop in case of unexpected forces
