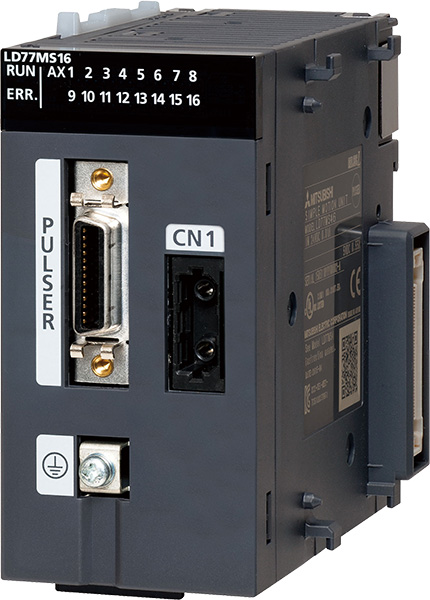

Mitsubishi Electric MELSEC-L Series LD77MS16 Motion Controller

Imagine a factory line that stops every time a motor loses sync. The Mitsubishi Electric MELSEC-L Series LD77MS16 Motion Controller keeps every axis moving together, so you never lose production. This controller is built for machines that need up to 16 axes of precise motion. If you have been fighting with jittery motion or missed steps, this unit gives you the reliability you need to keep your line running smoothly. With its compact size and low power draw, you can install it in tight cabinets and keep energy costs down.

Mitsubishi Electric MELSEC-L Series LD77MS16 Motion Controller

The main problem it solves is the difficulty of coordinating many servo axes on a single network. When axes are not synchronized, the product quality drops and downtime rises. This controller offers fast cycle times, built-in interpolation and a battery-less backup, so you can control up to sixteen axes with one compact module. The result is smoother motion, less wear on equipment and higher overall efficiency. The controller also supports SSCNET III/H networking, letting you link several modules over long distances without signal loss.

Benefits

• Reduces machine downtime by keeping all axes perfectly synchronized.
• Cuts programming effort with built-in linear and circular interpolation functions.
• Provides battery-less flash backup so settings stay safe after power loss.
• Offers both trapezoidal and S-curve acceleration for smoother starts and stops.
• Allows easy scaling from 2 to 16 axes without adding extra hardware.

Usages

Use this controller in packaging machines that need several rollers to turn together, in CNC equipment that cuts complex shapes, or in robotics where multiple joints must move in sync. It also fits assembly lines that require fast home positioning and precise speed control. Any application that demands reliable multi-axis motion can benefit from the LD77MS16. It works well in textile machines that need precise tension control and in printing presses where timing between rollers is critical.

Key Features

• Control up to 16 axes, including a virtual servo amplifier axis.
• Operation cycles of 0.88 ms or 1.77 ms for high speed.
• Linear interpolation for up to 4 axes and 2-axis circular interpolation.
• Positioning, path, speed, and speed-torque control modes.
• Trapezoidal and S-curve acceleration/deceleration processing.
• Backlash compensation, electronic gear and near-pass functions.
• Synchronous encoder input, cam and phase compensation.
• Flash ROM backup without battery for parameters and data.
• Home position return with multiple methods and fast retry.
• SSCNET III/H communication and 32 I/O points on two slots.
