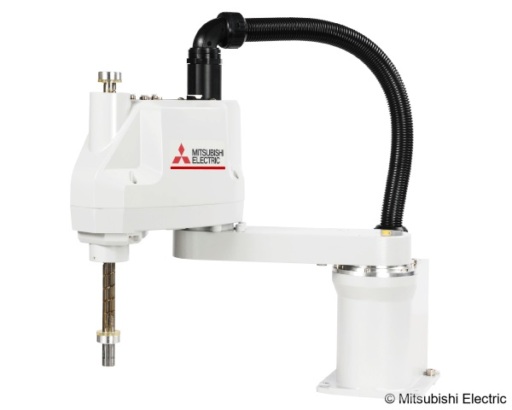

Mitsubishi Electric RH-3CRH4018-D-S15 SCARA Industrial Robot

Manufacturers often struggle with slow manual work, frequent mistakes, and rising labor costs. When a production line cannot keep up, orders are delayed and profit drops. The Mitsubishi Electric RH-3CRH4018-D-S15 SCARA Industrial Robot offers a fast, reliable way to automate small-part handling, so you can keep pace with demand while cutting errors.

Mitsubishi Electric RH-3CRH4018-D-S15 SCARA Industrial Robot with Mitsubishi

Imagine a robot that moves as quickly as a human hand but never tires. This SCARA robot from Mitsubishi is built for high-speed pick-and-place, assembly, and inspection tasks. It solves the common problem of inconsistent cycle times by delivering a repeatability of 0.01 mm and a cycle time of just 0.44 seconds. If your line needs steady output and lower scrap, this robot fits the bill.

Usages

The RH-3CRH4018-D-S15 works well on electronic-component assembly lines, where it can place tiny chips onto PCBs with precision. It is also ideal for packaging plants that need to sort and pack small items such as cosmetics or medical supplies. In automotive wiring harness production, the robot can feed wires into connectors quickly and accurately. Any operation that requires a 3 kg payload, a 400 mm reach, and a 180 mm vertical stroke can benefit from this SCARA unit.

Benefits

• Higher throughput reduces order lead time.
• Precise repeatability cuts scrap and rework.
• Fast cycle time saves energy and labor costs.
• Compact floor-mounted design frees up shop floor space.
• Easy integration with existing Mitsubishi controllers simplifies setup.

Key Features

• SCARA architecture for fast planar motion.
• 3 kg payload capacity.
• 400 mm maximum reach radius.
• 180 mm Z-axis stroke.
• 0.01 mm repeatability.
• 0.44 s cycle time.
• 7200 mm/s speed.
• CR800-CHD controller for smooth programming.
• IP20 protection suitable for standard factory environments.
• Floor installation for stable operation.
• Power supply 200-230 V, 500 VA consumption.
• CE and UKCA compliant for global markets.

Specifications
