Tired of writing down measurements by hand and worrying about mistakes? The Mitutoyo 264-505A, DP-1VA Digimatic Mini-Printer, 384 dots/line prints your data instantly, so you can focus on the job, not on paperwork. It connects directly to Mitutoyo gauges and records every reading with crystal-clear text. If you need reliable, fast printing on the shop floor, this mini-printer solves that problem.

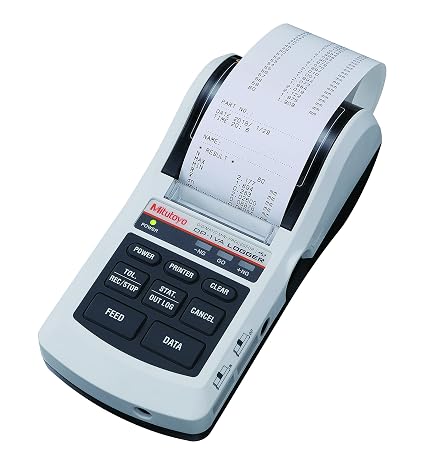

Mitutoyo 264-505A, DP-1VA Digimatic Mini-Printer, 384 dots/line
Many technicians lose time copying numbers from a digital gauge to a log book. That extra step creates errors and slows production. When a mistake slips through, parts may be rejected or re-worked, costing money and time. This printer attaches to the gauge, prints each reading in 0.8 seconds, and stores up to 1,000 points for later download. The result is a clean, auditable record that keeps your workflow smooth.
Key Features
- 384 dots per line for sharp, readable text.
- Thermal line printing eliminates ink cartridges.
- Normal (24 x 16) and large (36 x 24) fonts.
- Print capacity up to 10,000 lines on a single roll.
- USB and RS-232C outputs for easy data transfer.
- Five tolerance judgement sets (NG, GO, +NG).
- Timer input options from 0.25 s to 60 min.
- Runs on 4 AA batteries or 100 V AC adapter.
- Battery life supports about 10,000 lines at 20 C.
- Internal clock accuracy 2 min per month, 10-year battery.
Specifications
| General |
|
| Brand |
Mitutoyo |
| MPN |
264-505A |
| Model |
DP-1VA LOGGER |
| Product Type |
Digimatic Mini-Processor with Data Logging Function |
| Data Input |
|
| Data input |
Digimatic, Digimatic 2, RS-232C input (for KA Counter Only) |
| Printing |
|
| Printing method |
Thermal Line Printer |
| Character specifications |
Total dot number: 384 dots/line, Dot size: 8 dots/mm,
Normal font: 24 x 16 dots, Large font: 36 x 24 dots
|
| Print speed |
0.8 s/line when using AC adapter |
| Print capacity |
7,000 lines/roll with Large font, 10,000 lines/roll with Normal font |
| Printer paper |
High durability thermal paper, Width: 58mm, Roll length: 48m |
| Data Processing |
|
| Tolerance judgement |
5 sets |
| Measurement data logging (storage) |
Maximum 1,000 points |
| Timer input |
0.25s, 1s, 5s, 30s, 1 min, 30 min, 60 min |
| Output |
|
| Data Output |
USB Output, RS-232C output at TTL level, Tolerance judgement result output (-NG, GO, +NG) |
| Power Supply |
|
| Power supply |
100 V 50/60 Hz AC adapter (6 V, 2 A), AA alkaline batteries x4 |
| Battery life |
About 10,000 lines at 20 °C |
| Clock & Environmental |
|
| Clock precision |
+/-2 min max/month |
| Internal battery life |
10 years |
| Operating temperature range |
0 °C to 45 °C with AC adapter, 10 °C to 45 °C with batteries |
| Storage temperature |
-10 °C to 50 °C |
| Dimensions |
|
| External Dimensions |
94mm x 201mm x 75mm |
| Mass |
390g (main unit) |
