Tired of losing measurement data when you switch between tools? The Mitutoyo 64AAB386 Digimatic MIG-8USB Multiplexer lets you collect data from up to eight Digimatic gauges without missing a beat. It turns the gauge output into a clean RS-232C or USB signal that your computer can read instantly. If you need reliable, fast data capture for quality control, this unit is the missing link.

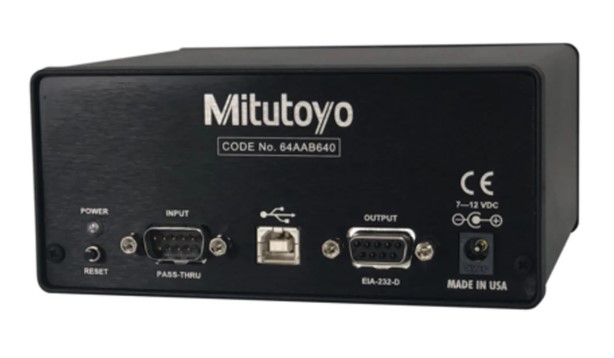

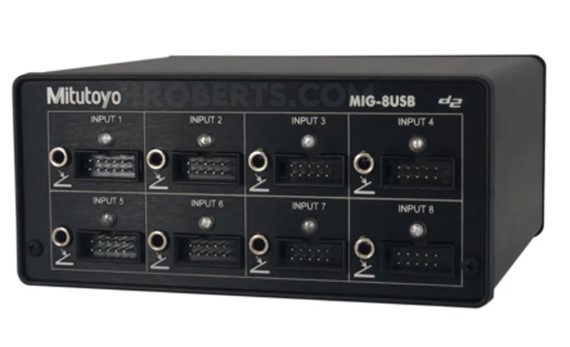

Mitutoyo 64AAB386 Digimatic MIG-8USB Multiplexer Digimatic RS232 Interface Unit
Many shops struggle with scattered measurement results because each gauge has its own output. The problem creates extra paperwork and the risk of errors. When you cannot trust the numbers, product quality suffers and re-work costs rise. This multiplexer solves the issue by gathering data from eight gauges and sending it to a PC in a single, uniform stream. You get accurate records, faster reporting, and a smoother workflow.
Key Features
- Supports up to eight Digimatic instruments.
- Data output via RS-232C or USB-HID.
- Standard 9600 baud rate, 8-N-1 format.
- Includes 1.5 m RS-232C cable and USB cable.
- Daisy-chain capability for flexible system size.
- Compact dimensions 146 x 150 x 70 mm.
- Lightweight at 710 g for easy placement.
- Supplied AC adapter (06AEG302JA) for stable power.
- Compatible with Mitutoyos measurement software.
- Optional foot switch (937179T) for hands-free operation.
Specifications
| General |
|
| Model |
MIG-8USB |
| Order No. |
64AAB386 |
| Product Type |
Digimatic/RS-232C Interface Unit |
| Gage Capacity |
8 |
| Data Output |
|
| Data output |
Via RS-232C interface / USB |
| Default Configuration |
|
| Data length |
8 bits |
| Start bit |
1 bit |
| Stop bit |
1 bit |
| Parity check |
None |
| Baud rate |
9600 |
| Features |
|
| Measurement data transfer |
Converts digimatic output measurement data to RS-232C or USB-HID and outputs it
to an external device such as PC
|
| Measuring instruments |
Up to eight measuring instruments with the digimatic output feature can be connected |
| Daisy-chain |
Units can be daisy-chained to meet any size needs |
| Standard Accessory |
|
| AC Adapter |
06AEG302JA |
| RS232C Cable |
1.5m / 5ft |
| USB Cable |
Included |
| Optional Accessories |
|
| Foot switch |
937179T |
| Physical |
|
| Dimension (mm) W × D × H |
146 × 150 × 70 |
| Mass (g) |
710 |
