Mitutoyo DMX-3-2 USB Digimatic Interface with 3 Digimatic & 2 RS232 Inputs

When you try to collect data from Mitutoyo measuring tools, you often need a reliable way to move the numbers from the instrument to your computer. Manual entry is slow, prone to mistakes, and can halt production. This problem hurts accuracy and wastes time in any workshop or lab. The Mitutoyo DMX-3-2 USB Digimatic Interface with 3 Digimatic & 2 RS232 Inputs gives you a fast, error-free link that turns instrument readings into digital data with a single click.

Mitutoyo DMX-3-2 USB Digimatic Interface with 3 Digimatic & 2 RS232 Inputs with Mitutoyo

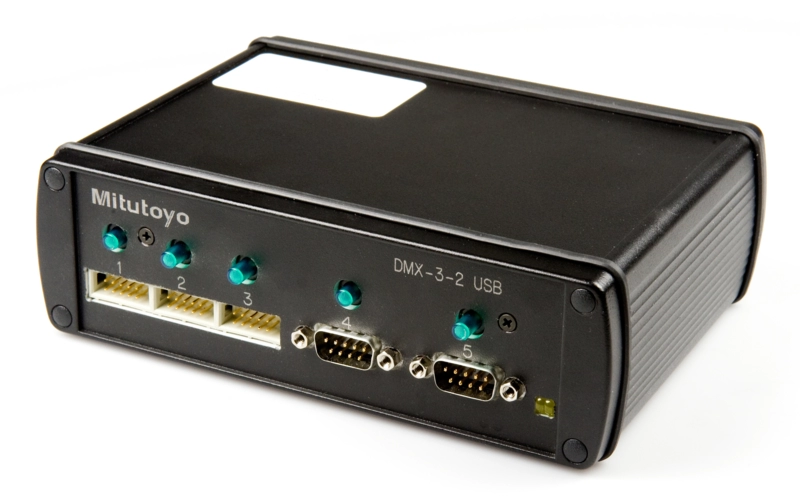

You need a bridge that talks to both old and new Mitutoyo devices. This USB interface does exactly that. It accepts three Digimatic signals and two RS-232 connections, then sends the data to your PC as a virtual COM port or keyboard input. If you are tired of typing measurements, this device eliminates that step and lets you focus on analysis instead of data entry. It works with Windows 2000 through 11, so you can use it on any modern PC.

Key Features

• Power from USB (5 V), no external adapter required.
• Three Digimatic inputs for direct connection to Mitutoyo sensors.
• Two RS-232C inputs for legacy devices.
• USB Type-B cable (1.8 m) included.

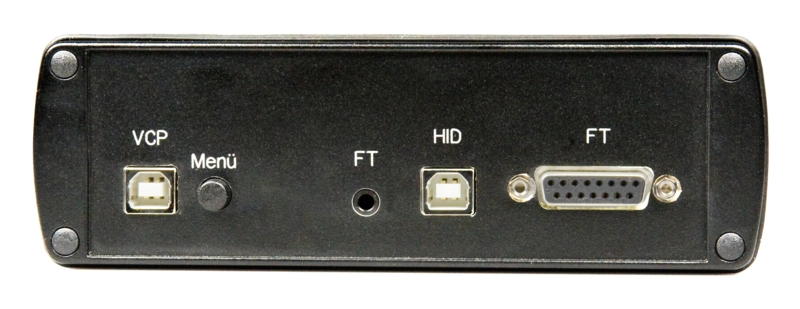

• Virtual COM-Port (VCP) and HID keyboard output options.
• Baud rate of 9600, 1 stop bit, no parity.
• Timer function with intervals from 0-99 seconds or minutes.
• Footswitch connector for hands-free triggering.
• Decimal mark selectable as point or comma.
• Driver software downloadable online for quick setup.

Specifications
