Tired of guessing measurements on the shop floor? The Mitutoyo EH-102Z Linear Gauge Counter Display Unit 542-073E gives you a clear digital readout of linear gauge data, so you can set, compare and record dimensions in seconds. If you have been struggling with manual dial gauges that are hard to read, this unit removes the guesswork and helps you keep production within tolerance.

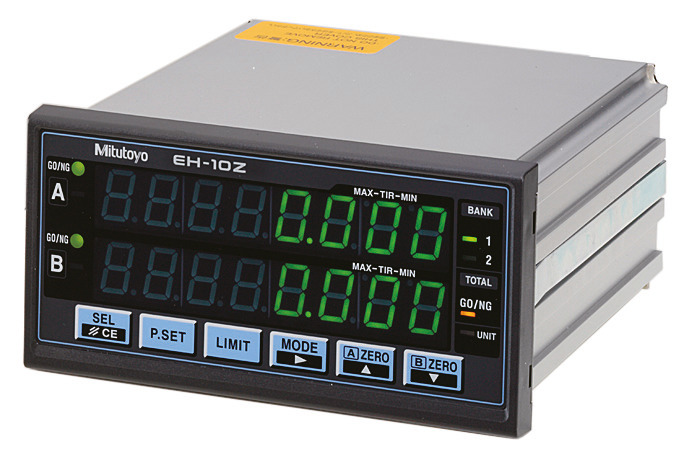

Mitutoyo EH-102Z Linear Gauge Counter Display Unit 542-073E Industrial Meter
Many workshops lose time because the gauge display is unclear or the data cannot be stored. That problem leads to scrap, re-work and missed deadlines. The EH-102Z solves this by providing an 8-digit LED display, zero-set and preset functions, and built-in tolerance judgment. You get instant, accurate numbers and the ability to log results directly to a PC or controller, keeping your process smooth and reliable.
Key Features
- 8-digit LED display for clear visibility.
- 2-axis display with sum and difference capability.
- Resolution selectable from 0.0001 to 0.01 mm.
- Differential square-wave input up to 2.5 MHz.
- Zero-set, preset and tolerance judgment functions.
- RS-232C, USB (SENSORPAK), and Digimatic interfaces.
- RS Link networking supports up to 10 units.
- Hold, preset, bank switch and peak mode control inputs.
- Open collector control output and 1-4 V analog output.
- Power via AC adapter or 12-24 V DC, 8.4 W max consumption.
Specifications
| General Information |
|
| Model |
EH-102Z |
| Order / Part No. |
542-073E |
| Manufacturer |
Mitutoyo |
| Display & Measurement |
|
| Display type |
8-digit LED display |
| Number of axes |
2-axis display (sum/difference capable) |
| Gauge input |
2 channels |
| Applicable gauge type |
LGF with reference point mark |
| Input type |
Differential square-wave |
| Max input frequency |
2.5 MHz |
| Resolution |
0.0001 to 0.01 mm (selectable) |
| Functions |
Zero-set, preset, tolerance judgment |
| Tolerance display |
3-step or 5-step LED indication |
| Interfaces & Communication |
|
| Interfaces |
RS-232C, USB (SENSORPAK only), Digimatic |
| Networking |
RS Link (multi-point system up to 10 units) |
| Control inputs |
Hold, preset, bank switching, peak mode |
| Output |
Open collector control output |
| Analog output |
1–4 V |
| Power & Electrical |
|
| Power supply |
AC adapter or 12–24 V DC |
| Power consumption |
8.4 W max |
| Environmental Conditions |
|
| Operating temperature |
0 to 40 °C |
| Storage temperature |
−10 to 50 °C |
| Humidity range |
20–80% RH (non-condensing) |
| Physical Characteristics |
|
| Dimensions |
144 × 72 × 156.7 mm |
| Weight |
800 g |
