Driving in busy streets or on highways can be stressful when you cannot see every hazard in time. Missing a sudden stop, a pedestrian crossing, or a vehicle drifting out of its lane can cause accidents that hurt you and others. The Mobileye 630 Collision Avoidance System with Eyewatch watches the road ahead and warns you before a crash, giving you extra time to react and keep everyone safe.

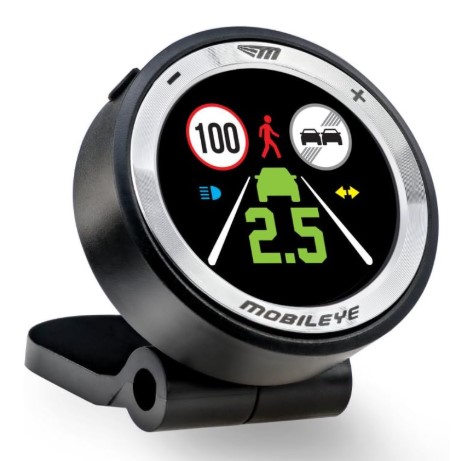

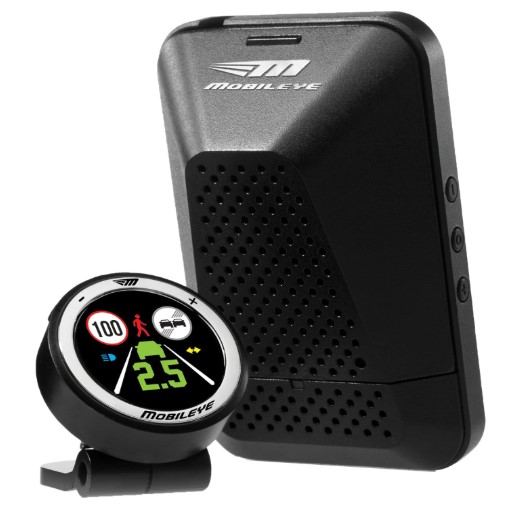

Mobileye 630 Collision Avoidance System with Eyewatch with Mobileye
Imagine a co-pilot that never sleeps and always looks ahead. The Mobileye 630 Collision Avoidance System with Eyewatch is a vision-based safety unit that fits on the windshield and talks to you through visual, sound and vibration alerts. It solves the problem of late reaction by detecting cars, pedestrians and lane drift early, so you can brake or steer before danger becomes a collision.
Key Features
- Forward-facing monocular camera mounted behind the rear-view mirror.
- Mobileye EyeQ chip processes video with AI-based computer vision.
- Forward Collision Warning (FCW) based on time-to-collision calculations.
- Urban Forward Collision Warning for low-speed city driving.
- Lane Departure Warning activates above 55 km/h (34 mph).
- Pedestrian Collision Warning works from 7 km/h to 50 km/h in daylight.
- Headway Monitoring and Warning to keep safe following distance.
- Visual alerts shown on EyeWatch display in the drivers line of sight.
- Integrated speaker delivers clear audio warnings.
- Optional steering-wheel or seat vibration adds haptic feedback.
Specifications
| Product |
|
| Product Name |
Mobileye 630 Collision Avoidance System with EyeWatch |
| Product Type |
Vision-based Collision Avoidance System |
| Display |
EyeWatch™ visual display |
| Camera |
Forward-facing windshield-mounted camera |
| Processing |
Mobileye® EyeQ® chip |
| Collision Warning Functions |
|
| Forward Collision Warning (FCW) |
Yes |
| Urban Forward Collision Warning (UFCW) |
Yes |
| Lane Departure Warning (LDW) |
Yes |
| Pedestrian Collision Warning (PCW) |
Yes |
| Headway Monitoring & Warning (HMW) |
Yes |
| Detection |
|
| Vehicles |
Yes |
| Pedestrians |
Yes |
| Lane Markings |
Yes |
| Operating Specifications |
|
| Lane Departure Warning Activation Speed |
Above 55 km/h (34 mph) |
| Pedestrian Collision Warning Operating Speed |
7 km/h to 50 km/h (4 mph to 31 mph) |
| Pedestrian Collision Warning Operating Condition |
Daylight hours only |
| Forward Collision Warning |
Time-to-collision based warning |
| Alerts |
|
| Visual Alerts |
EyeWatch™ display |
| Audio Alerts |
Integrated speaker |
| Haptic Alerts |
Optional steering wheel or driver seat vibration |
| Installation |
|
| Camera Mounting |
Inside windshield behind rear-view mirror |
| EyeWatch Mounting |
Bottom corner of windshield |
| Technology |
|
| Sensor Type |
Monocular vision camera |
| Processing Technology |
AI-based computer vision using EyeQ® |
| Application |
|
| Target Application |
Commercial fleets, buses, trucks, passenger vehicles |
