In many factories and remote sites the network must stay up even when power is shaky or the environment is harsh. A broken link can stop a production line, cause data loss, and cost money. You also need to power cameras, sensors, and other devices without adding extra adapters. The MOXA EDS-4008-4P-2GT-2GS-LVB Managed 8 Port Ethernet Switch gives you a single, sturdy box that keeps the network alive and supplies power where it is needed.

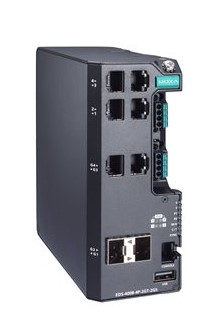

MOXA EDS-4008-4P-2GT-2GS-LVB Managed 8 Port Ethernet Switch with MOXA
Get a fast, secure, and easy-to-manage connection for every device on your shop floor. This is a managed Ethernet switch that supports Power over Ethernet, VLAN tagging, and redundant power inputs. If you are tired of adding separate power supplies or dealing with unreliable links, this switch solves those issues in one compact metal case.
Key Features
- 4 PoE ports (10/100 Base-T) with 90 W per port.
- 2 Gigabit Ethernet ports (10/100/1000 Base-T).
- 2 removable 100/1000 Base-SFP slots for fiber links.
- Supports IEEE 802.1Q VLAN tagging for up to 256 VLANs.
- LACP (IEEE 802.3ad) for link aggregation.
- IEEE 802.1X authentication for secure network access.
- 4 priority queues and 1 MB packet buffer for smooth traffic flow.
- 16 K MAC table size for large device counts.
- Redundant dual power inputs (12/24/48 VDC) with overload and reverse polarity protection.
- DIN-rail and optional wall-mounting for flexible installation.
- Metal housing with IP40 rating for industrial durability.
Specifications
| Ethernet Interface |
|
| PoE Ports (10/100BaseT(X), RJ45 connector) |
4 |
| 10/100/1000BaseT(X) Ports (RJ45 connector) |
2 |
| 100/1000BaseSFP Slots |
2 |
| Standards |
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1X for authentication |
| Ethernet Software Features |
|
| Industrial Protocols |
EtherNet/IP
Modbus TCP
PROFINET IO Device |
| Switch Properties |
|
| MAC Table Size |
16 K |
| Jumbo Frame Size |
9.216 KB |
| Max. No. of VLANs |
256 |
| VLAN ID Range |
VID 1 to 4094 |
| IGMP Groups |
512 |
| Priority Queues |
4 |
| Packet Buffer Size |
1 MB |
| LED Interface |
|
| LED Indicators |
PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC |
| Serial Interface |
|
| Console Port |
RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
| USB Interface |
|
| USB Connector |
USB Type A (Reserved) |
| Input/Output Interface |
|
| Alarm Contact Channels |
1, Relay output with current carrying capacity of 1 A @ 24 VDC |
| Digital Input Channels |
1 |
| Digital Inputs |
+13 to +30 V for state 1-30 to +3 V for state 0Max. input current: 8 mA |
| Buttons |
|
| Reset button |
|
| DIP Switch Configuration |
|
| DIP Switches |
Turbo Ring, Master, Coupler, Reserve |
| Power Parameters |
|
| Connection |
2 removable 4-contact terminal block(s) |
| Pre-installed Power Module |
PWR-103-LV-VB-I |
| Input Voltage |
12/24/48 VDCRedundant dual inputs |
| Operating Voltage |
12 to 57 VDC (> 52 VDC for PoE+ output recommended) |
| Input Current |
12/48 VDC, 7.46/4.27 A or 24 VDC, 7.26 A |
| Power Consumption (Max.) |
Without PoE: 15.84 WWith PoE:Max. 180 W for total PD power consumption @ 48 VDC input;Max. 150 W for total PD power consumption @ 24 VDC input;Max. 62 W for total PD power consumption @ 12 VDC input |
| Max. PoE Power Output per Port |
90 W |
| Overload Current Protection |
Supported |
| Reverse Polarity Protection |
Supported |
| Physical Characteristics |
|
| IP Rating |
IP40 |
| Dimensions |
55 x 140 x 122.5 mm (2.17 x 5.51 x 4.82 in) |
| Weight |
840 g (1.85 lb) |
| Installation |
DIN-rail mountingWall mounting (with optional kit) |
| Housing |
Metal |
| Environmental Limits |
|
| Operating Temperature |
-10 to 60°C (14 to 140°F) |
| Storage Temperature (package included) |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
