Imagine a network that never drops, never slows, and can grow with your factory or data center. The Moxa ICS-G7852A-4XG-HV-HV, 52 Ports, Layer 3 Ethernet Rackmount Switch is built for exactly that. It connects dozens of devices, handles heavy traffic, and keeps everything running smoothly. If you have been fighting unreliable switches, limited ports, or lack of advanced routing, this unit solves those problems and lets you focus on production instead of networking.

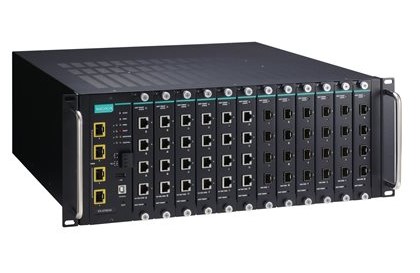

Moxa ICS-G7852A-4XG-HV-HV, 52 Ports, Layer 3 Ethernet Rackmount Switch
Many industrial networks suffer from congestion, single-point failures, and outdated hardware. When a switch cannot keep up, machines stop, data is lost, and downtime costs rise. This switch removes those risks by offering high-speed 10 GbE uplinks, redundant power inputs, and full Layer 3 routing. It gives you a reliable backbone that scales as your plant expands, so you avoid costly upgrades later.
Key Features
- 52 configurable Ethernet ports with modular 4-port interface options.
- Four 10 GbE SFP+ slots for uplink aggregation.
- Supports IEEE 802.1Q VLAN tagging, 802.1X authentication, and multiple spanning-tree protocols.
- 802.3af/at PoE+ budget up to 1,440 W when paired with IM-G7000A-4PoE module.
- 12 Mbits packet buffer for burst traffic handling.
- 4096 IGMP groups for efficient multicast traffic.
- 256 VLAN IDs, 16 K MAC table, and 8 priority queues for traffic shaping.
- USB Type-A storage port and USB-serial console for easy management.
- Redundant dual AC inputs (110-220 V) with overload and reverse-polarity protection.
Specifications
| Input/Output Interface |
|
| Alarm Contact Channels |
Relay output with current carrying capacity of 2 A @ 30 VDC |
| Digital Inputs |
+13 to +30 V for state 1, -30 to +1 V for state 0, Max. input current: 8 mA |
| Ethernet Interface |
|
| 10GbE SFP+ Slots |
4 |
| Slot Combination |
12 slots for 4-port interface modules (10/100/1000BaseT(X), or PoE+ 10/100/1000BaseT(X), or 100/1000BaseSFP slots) |
| Standards |
|
| Supported Standards |
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3af/at for PoE/PoE+ output
IEEE 802.3ae for 10 Gigabit Ethernet |
| Switch Properties |
|
| DRAM |
128 MB |
| Flash |
16 MB |
| IGMP Groups |
4096 |
| Jumbo Frame Size |
9.6 KB |
| MAC Table Size |
16 K |
| Max. No. of VLANs |
256 |
| Packet Buffer Size |
12 Mbits |
| VLAN ID Range |
VID 1 to 4094 |
| Priority Queues |
8 |
| USB Interface |
|
| Storage Port |
USB Type A |
| Serial Interface |
|
| Console Port |
USB-serial console (Type B connector) |
| Power Parameters |
|
| Input Voltage |
110 to 220 VAC, Redundant dual inputs |
| Operating Voltage |
85 to 264 VAC |
| Input Current |
1.31/0.83 A @ 110/220 VAC, Note: These are the input current ratings for the device with the maximum number of modules installed. |
| Power Consumption (Max.) |
120.38/138.34 W @ 110/220 VAC, Note: These are the power consumption ratings for the device with the maximum number of modules installed. |
| Total PoE Power Budget |
Installed with IM-G7000A-4PoE Module: Maximum 1,440 W @ 48 VDC |
| Overload Current Protection |
Supported |
| Reverse Polarity Protection |
Supported |
| Physical Characteristics |
|
| IP Rating |
IP30 |
| Dimensions |
440 x 176 x 523.8 mm (17.32 x 6.93 x 20.62 in) |
| Weight |
12,900 g (28.5 lb) |
| Installation |
Rack mounting |
| Environmental Limits |
|
| Operating Temperature |
-10 to 60°C (14 to 140°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
