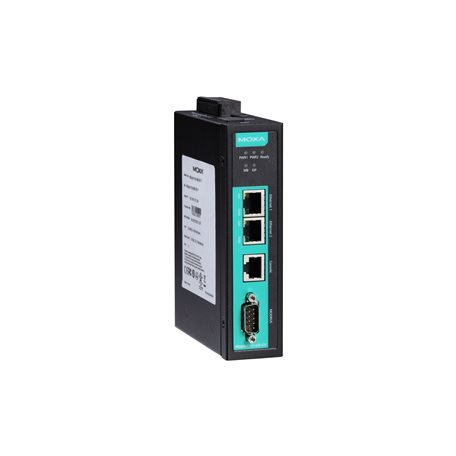

| 10/100BaseT(X) Ports (RJ45 Connector) |
2 |
| Auto MDI/MDI-X Connection |
Yes |
| Magnetic Isolation Protection |
1.5 kV (built-in) |
| Industrial Protocols |
Modbus TCP Client (Master)
Modbus TCP Server (Slave)
EtherNet/IP Scanner
EtherNet/IP Adapter
MQTT |
| Configuration Options |
Web Console (HTTP/HTTPS), Device Search Utility (DSU), MGate Manager, Telnet Console |
| Management |
ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client, MIB |
| MIB |
RFC1213, RFC1317 |
| Time Management |
NTP Client |
| Authentication |
Local database |
| Encryption |
HTTPS, AES-128, AES-256, SHA-256 |
| Security Protocols |
SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3) |
| Console Port |
RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
| No. of Serial Ports |
1 |
| Connector |
DB9 male |
| Serial Standards |
RS-232/422/485 |
| Baudrate |
50 bps to 921.6 kbps |
| Data Bits |
7, 8 |
| Parity |
None, Even, Odd, Space, Mark |
| Stop Bits |
1, 2 |
| Flow Control |
RTS Toggle (RS-232 only), RTS/CTS |
| RS-485 Data Direction Control |
Automatic Data Direction Control (ADDC) |
| Pull High/Low Resistor for RS-485 |
1 kilo-ohm, 150 kilo-ohms |
| Terminator for RS-485 |
120 ohms |
| Serial Isolation |
2 kV (built-in) |
| RS-232 Signals |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 Signals |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2W Signals |
Data+, Data-, GND |
| RS-485-4W Signals |
Tx+, Tx-, Rx+, Rx-, GND |
| Serial Configuration Options |
Serial Console |
| Modbus RTU/ASCII Mode |
Master, Slave |
| Modbus RTU/ASCII Functions Supported |
1, 2, 3, 4, 5, 6, 15, 16, 23 |
| Modbus RTU/ASCII Max. No. of Commands |
100 |
| Modbus RTU/ASCII Input Data Size |
2048 bytes |
| Modbus RTU/ASCII Output Data Size |
2048 bytes |
| Modbus TCP Mode |
Client (Master), Server (Slave) |
| Modbus TCP Functions Supported |
1, 2, 3, 4, 5, 6, 15, 16, 23 |
| Modbus TCP Max. No. of Client Connections |
16 |
| Modbus TCP Max. No. of Server Connections |
32 |
| Modbus TCP Max. No. of Commands |
100 |
| Modbus TCP Input Data Size |
2048 bytes |
| Modbus TCP Output Data Size |
2048 bytes |
| EtherNet/IP Mode |
Scanner, Adapter |
| CIP Objects Supported |
Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link |
| Max. No. of Scanner Connections |
16 (for read-only), 1 (for read/write) |
| Max. No. of Adapter Connections |
100 |
| EtherNet/IP Input Data Size |
496 bytes |
| EtherNet/IP Output Data Size |
496 bytes |
| MQTT Mode |
Publisher/Subscriber of MQTT, Azure IoT Hub Device, Alibaba IoT Platform Device |
| MQTT Version Supported |
v3.1.1 |
| QoS Level |
QoS 0, 1, 2 |
| MQTT Secure Transmission |
TLS (1.0, 1.1, 1.2) encryption with user's root CA, Client certificate, Private key |
| Max. No. of Data Tags |
300 data tags |
| Max. No. of Messages |
20 messages |
| MQTT General Features |
Keep Alive, Retain Message, Last Will Message, Clean Session |
| microSD Slot |
Up to 32 GB (SD 2.0 compatible; Data buffering up to 2 GB) |
| Input Voltage |
12 to 48 VDC |
| Input Current |
455 mA @ 12 VDC |
| Power Connector |
Screw-fastened Euroblock terminal |
| Contact Current Rating |
Resistive load: 2 A @ 30 VDC |
| Housing |
Metal |
| IP Rating |
IP30 |
| Dimensions |
36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in) |
| Weight |
507 g (1.12 lb) |
| Operating Temperature |
0 to 60°C (32 to 140°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| EMC |
EN 55032/35 |
| EMI |
CISPR 32, FCC Part 15B Class B |
| Safety |
EN 62368-1, UL 508 |
| Hazardous Locations |
ATEX, Class I Division 2, IECEx |
| Freefall |
IEC 60068-2-32 |
| Shock |
IEC 60068-2-27 |
| Vibration |
IEC 60068-2-6, IEC 60068-2-64 |
