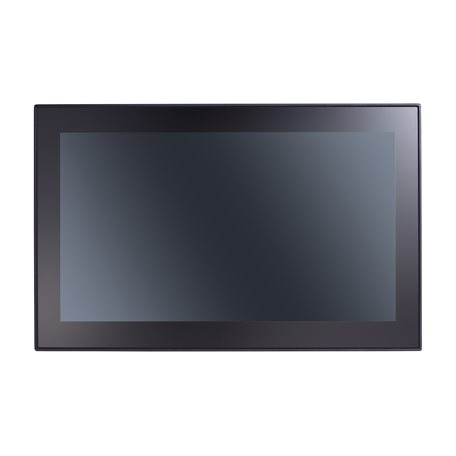

Moxa MPC-3150W-E2-T 15.6" Intel Atom x6211E 8GB RAM Touch Panel PC
The MPC-3150W 15.6-inch panel computers with Intel Atom® x6000E dual-core/quad-core processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two software selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC3150W panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy. The MPC-3150W panel computers are designed for the -30 to 60°C temperature range, and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation. This makes the computers reliable industrial platforms for harsh, hot, outdoor environments like oil and gas fields and drilling platforms. The MPC-3150W also features a 400–nit or 1000–nit LCD panel offering a sunlight-readable, projected-capacitive, glove-friendly, multi-touch screen for an excellent user experience in outdoor applications.
Features and Benefits
• 15.6-inch panel computers
• Intel Atom® x6211E dual-core
• -30 to 60°C operating temperature, fanless design, no heater required
• 1000-nit sunlight-readable LCD
• Glove-friendly, multi-touch screen
• DNV, CID2, ATEX Zone 2, and IECEx compliant1
• 12/24 VDC power input
Specifications
| Model Name |
MPC-3150W-E2-T |
| Panel |
15.6" (16:9), 1000 nits |
| CPU |
Intel Atom® x6211E |
| RAM |
8 GB |
| Touchscreen |
PCAP |
| LAN |
2 |
| Serial |
2 |
| DI/DO |
4/4 |
| Power Input |
12/24 VDC |
| IP Rating |
IP66 (front), IP20 (rear) |
| Operating Temperature |
-30 to 60°C |
