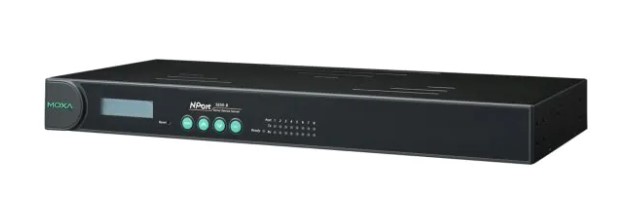

Moxa NPort 5650-8, 8-Port RS-232/422/485 Rackmount Device Server
The Moxa NPort 5650-8 is an 8-port serial device server designed to connect RS-232, RS-422, and RS-485 serial equipment to Ethernet networks. It provides eight RJ45 serial ports and one 10/100BaseT(X) Ethernet port with built-in 1.5 kV magnetic isolation protection.
The serial interface supports standard baud rates from 50 bps up to 921.6 kbps, with configurable data bits, stop bits, parity, and flow control. RS-485 communication includes automatic data direction control, selectable pull high/low resistors, and a 120-ohm terminator.
The NPort 5650-8 supports Real COM, TCP Client, TCP Server, UDP, Ethernet Modem, Pair Connection, Reverse Telnet, RFC2217, and Disabled operation modes. Management options include Telnet Console, Web Console through HTTP/HTTPS, and Windows Utility.
Security features include HTTPS with TLS 1.2, SNMPv3, AES-128, RSA-1024, SHA-1, SHA-256, and local database authentication. The device also supports IPv4, SNMP, DHCP, DNS, LLDP, SMTP, TCP/IP, UDP, and other network protocols.
Designed for rack-based deployments, the unit has a metal housing and supports 19-inch rack mounting. It includes an LCD panel and push buttons for configuration, built-in WDT for automatic reboot, and operates from 0 to 60°C.
Key Features
-
8 x RJ45 serial ports supporting RS-232, RS-422 and RS-485
-
1 x 10/100BaseT(X) RJ45 Ethernet port with 1.5 kV isolation
-
Baud rates from 50 bps to 921.6 kbps
-
Supports Real COM, TCP/UDP, RFC2217 and Pair Connection modes
-
RS-485 automatic data direction control with 120-ohm termination
-
HTTPS TLS 1.2, SNMPv3 and multiple encryption options
-
19-inch rack-mount metal housing with LCD and push-button configuration
-
Built-in WDT with 0 to 60°C operating temperature range
Specifications
| Ethernet Interface |
|
| 10/100BaseT(X) Ports (RJ45 Connector) |
1 |
| Magnetic Isolation Protection |
1.5 kV (built-in) |
| Ethernet Software Features |
|
| Configuration Options |
Telnet Console; Web Console (HTTP/HTTPS); Windows Utility |
| Management |
ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, RFC2217, Rtelnet, PPP, SLIP, SMTP,
SNMPv1/v2c, TCP/IP, Telnet, UDP
|
| Filter |
IGMP v1/v2c |
| Windows Real COM Drivers |
Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, 95; Windows Server 2025, 2022, 2019, 2016, 2012 R2, 2012,
2008 R2, 2008, 2003, 2000, NT; Windows Embedded CE 6.0 and 5.0; Windows XP Embedded
|
| Linux Real TTY Drivers |
Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x |
| Fixed TTY Drivers |
macOS versions: 26, 15, 14, 13, 12, 11, and 10.1x |
| Arm®-based Platform Support |
Windows 11; Linux Kernel 6.x, 5.x, and 4.x; macOS 11 and higher |
| Virtual Machine |
VMWare ESXi (Windows 11/10); VMware Fusion (Windows on macOS 10.1x and higher); Parallels Desktop
(Windows on macOS 10.1x and higher)
|
| Android API |
Android 3.1.x and later |
| Time Management |
SNTP |
| Security Functions |
|
| Authentication |
Local database |
| Encryption |
HTTPS; AES-128; RSA-1024; SHA-1; SHA-256 |
| Security Protocols |
HTTPS (TLS 1.2); SNMPv3 |
| Serial Interface |
|
| Connector |
8-pin RJ45 |
| No. of Ports |
8 |
| Serial Standards |
RS-232; RS-422; RS-485 |
| Baudrate |
50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200,
230.4k, 460.8k, 921.6k bps
|
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
None; RTS/CTS (RS-232 only); DTR/DSR (RS-232 only); XON/XOFF |
| Pull High/Low Resistor for RS-485 |
1 kilo-ohm, 150 kilo-ohms |
| Terminator for RS-485 |
120 ohms |
| RS-485 Data Direction Control |
Automatic Data Direction Control (ADDC) |
| Operation Modes |
Real COM, TCP Client, TCP Server, UDP, Ethernet Modem, Pair Connection, Reverse Telnet, RFC2217, Disabled |
| Serial Signals |
|
| RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4W |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2W |
Data+, Data-, GND |
| Power Parameters |
|
| Input Current |
158 mA @ 100 VAC |
| Input Voltage |
100 to 240 VAC, 47 to 63 Hz |
| Reliability |
|
| Automatic Reboot Trigger |
Built-in WDT |
| Physical Characteristics |
|
| Housing |
Metal |
| Dimensions (with Ears) |
482.60 x 43.65 x 198.25 mm (19.00 x 1.72 x 7.80 in) |
| Dimensions (without Ears) |
440 x 43.65 x 198.25 mm (17.32 x 1.72 x 7.80 in) |
| Weight |
2,430 g (5.09 lb) |
| Installation |
19-inch rack mounting |
| Interactive Interface |
LCD panel display; Push buttons for configuration |
| Environmental Limits |
|
| Operating Temperature |
0 to 60°C (32 to 140°F) |
| Storage Temperature (Package Included) |
-20 to 70°C (-4 to 158°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Standards and Certifications |
|
| EMC |
EN 55032/35 |
| EMI |
CISPR 32, FCC Part 15B Class A |
| Safety |
UL 62368-1 |
| Medical |
EN 55011: 2007+A2: 2007 Class A (Group 1) compliant; EN 60601-1-2: 2007 compliant |
| MTBF |
|
| Time |
754,927 hrs |
| Standards |
MIL-HDBK-217F |
