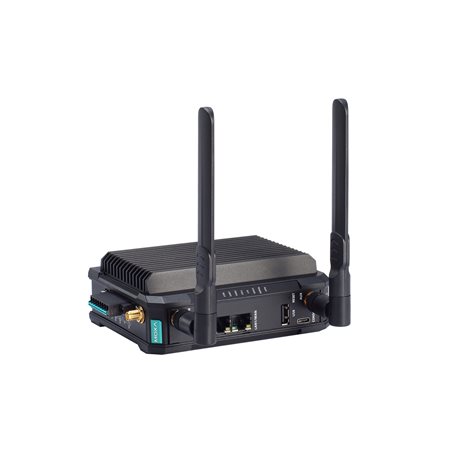

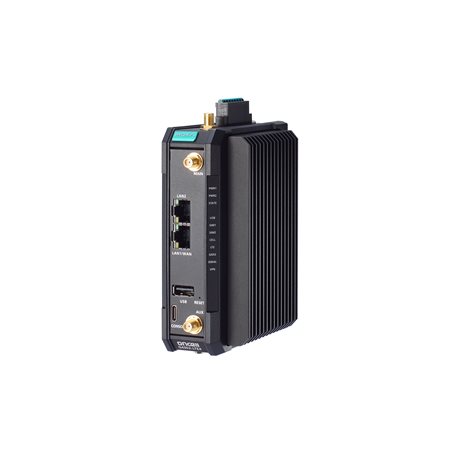

Moxa OnCell G4302-LTE4-US-T Industrial LTE Cat. 4 Cellular Secure Router
The Moxa OnCell G4302-LTE4-US-T is an industrial LTE Cat. 4 cellular secure router designed for reliable cellular and Ethernet connectivity. It supports LTE CAT 4 along with HSPA, UMTS, EDGE, GPRS, and GSM cellular standards.
The router provides up to 150 Mbps download and 50 Mbps upload data rates with 20 MHz bandwidth. It supports two Nano SIM cards with push-eject trays and includes two SMA female cellular antenna connectors for flexible cellular deployment.
For wired connectivity, the OnCell G4302-LTE4-US-T provides two 10/100/1000BaseT(X) RJ45 Ethernet ports. It also includes one RS-232/422/485 serial port, one USB 2.0 Type-A port, one digital input, and one relay output for industrial device connectivity.
Security features include Secure Boot, user-level password protection, RADIUS, access control lists, firewall filtering, DDoS protection, deep packet inspection, IPsec VPN, and OpenVPN. The router supports up to 15 concurrent IPsec VPN tunnels and multiple encryption and authentication methods.
The metal housing is designed for industrial environments with DIN-rail or optional wall mounting. It supports 12 to 48 VDC redundant dual inputs, reverse polarity protection, an IP40 rating, and an operating temperature range of -30 to 70°C.
Key Features
-
LTE Cat. 4 industrial cellular secure router
-
150 Mbps DL and 50 Mbps UL at 20 MHz bandwidth
-
2 x Nano SIM push-eject tray type
-
2 x 10/100/1000BaseT(X) RJ45 Ethernet ports
-
RS-232/422/485 serial interface
-
GPS, GLONASS, Galileo and BeiDou GNSS support
-
1 digital input and 1 relay output
-
USB 2.0 Type-A port
-
IPsec and OpenVPN support
-
Maximum 15 IPsec VPN tunnels
-
Deep Packet Inspection for industrial protocols
-
Secure Boot hardware-based security
-
12 to 48 VDC redundant dual inputs
-
DIN-rail and optional wall mounting
-
Operating temperature: -30 to 70°C
Specifications
| Cellular Interface |
|
| Cellular Standards |
LTE CAT 4, HSPA, UMTS, EDGE, GPRS, GSM |
| Data Rate |
20 MHz bandwidth: 150 Mbps DL, 50 Mbps UL |
| Frequency Bands Supported |
LTE B2 (1900 MHz) / B4 (1700/2100 MHz (AWS)) / B5 (850 MHz) / B12 (700 MHz) / B13 (700 MHz) /
B14 (700 MHz) / B66 (1700 MHz) / B25 (1900 MHz) /B26 (850 MHz) /B71 (600 MHz)UMTS/
HSPA B2 (1900 MHz) / B4 (1700 MHz (AWS)) / B5 (850 MHz)
|
| No. of SIMs |
2 Push-eject tray type |
| SIM Format |
Nano SIM |
| Cellular Antenna Connectors |
2 x SMA female |
| Ethernet Interface |
|
| 10/100/1000BaseT(X) Ports (RJ45 connector) |
2 |
| Standards |
IEEE 802.3 for 10BaseTIEEE 802.3u for 100BaseT(X)IEEE 802.3ab for 1000BaseT(X) |
| GNSS Interface |
|
| GNSS Bands |
GPS (1575.42 MHz)GLONASS (1597.52 MHz)Galileo (1575.42 MHz)BeiDou (1561.098 MHz) |
| GNSS Antenna Connectors |
1 x SMA female |
| Input/Output Interface |
|
| Digital Output Channels |
1Relay output with current carrying capacity of 1 A @ 24 VDC |
| Digital Input Channels |
1 |
| Digital Inputs |
-30 to +3 V for state 0+13 to +30 V for state 1 |
| Buttons |
Reset button |
| USB Interface |
|
| No. of USB Ports |
1 |
| USB Connector |
USB Type A |
| USB Standards |
USB 2.0 |
| Serial Interface |
|
| No. of Ports |
1 |
| Connector |
DB9 male |
| Serial Standards |
RS-232/422/485 |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
NoneEvenOdd |
| Baudrate |
300 bps to 921.6 kbps |
| Console Port |
RS-232 (TxD, RxD, GND), USB type-C (115200, n, 8, 1) |
| Serial Signals |
|
| RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w |
Data+, Data-, GND |
| RS-485-4w |
Tx+, Tx-, Rx+, Rx-, GND |
| Operation Modes |
|
| Standards |
Real COM modeRFC2217 modeTCP Client modeTCP Server modeUDP modeSCATS |
| LED Interface |
|
| LED Indicators |
PWR1, PWR2, STATE, USB, SIM1, SIM2, CELL, LTE, GNSS, SERIAL, VPN |
| Wireless Software Features |
|
| Management |
GuaranLinkSend SMSSMS Remote ControlMoxa Remote Connect (MRC) |
| Ethernet Software Features |
|
| Management |
DHCP Server/ClientDNSSyslogMXview OneMXconfigMXsecurityPower Management |
| Broadcast Forwarding |
IP directed broadcast, broadcast forwarding |
| Configuration Options |
Serial ConsoleWeb Console (HTTP/HTTPS)Command Line Interface (CLI) through Serial/Telnet/SSH |
| Network Protocols |
LLDPSMTPSNMPv1/v2c/v3TFTPTCP/IPUDPIPv4ARPHTTP/HTTPSTelnetSSH |
| Filter |
802.1Q VLANPort-based VLAN |
| Unicast Routing |
OSPFRIPV1/V2Static Route |
| Multicast Routing |
Static Route |
| Routing Redundancy |
VRRP |
| Time Management |
NTP Server/ClientSNTP |
| Tunneling |
GRE |
| VPN |
IPsecOpenVPN |
| Security Functions |
|
| Hardware-based Security |
Secure Boot |
| Password |
User-level password protection |
| Authentication |
Local databaseRADIUSAccess Control List |
| Firewall |
|
| Filter |
DDoSEthernet protocolsICMPIP addressMAC addressPorts |
| NAT |
|
| Features |
1-to-1N-to-1PATNAT loopbackDouble NAT |
| IPsec VPN |
|
| Authentication |
MD5 and SHA (SHA-256)RSA (key size: 1024-bit, 2048-bit)Pre-shared Key or X.509 v3 certificate |
| Encryption |
DES3DESAES-128AES-192AES-256AES-256-GCM |
| Concurrent VPN Tunnels |
Max. 15 IPsec VPN tunnels |
| OpenVPN |
|
| OpenVPN |
OpenVPN (client) |
| Encryption |
AES-128/192/256 CBCAES-128/192/256 GCMCHACHA20-POLY1305 |
| Power Parameters |
|
| Input Current |
0.96 A @ 12 VDC (max.), 0.63 A @ 12 VDC (average), 0.33 A @ 24 VDC (average)
0.18 A @ 48 VDC (average)
|
| Input Voltage |
12 to 48 VDCRedundant dual inputs |
| Power Consumption |
170 mW (idle) 7.6 W (typ.) 11.52 W (max.) |
| Power Connector |
Screw-locked terminal block |
| Reverse Polarity Protection |
Supported |
| Physical Characteristics |
|
| Housing |
Metal |
| Dimensions |
125 x 46.2 x 100 mm (4.92 x 1.82 x 3.94 in) |
| Weight |
610 g (1.34 lb) |
| Installation |
DIN-rail mounting Wall mounting (with optional kit) |
| IP Rating |
IP40 |
| Environmental Limits |
|
| Operating Temperature |
-30 to 70°C (-22 to 158°F) |
| Storage Temperature (package included) |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
