When a machine needs to control a motor through a compact electronic module while also receiving a sensor signal and communicating over a CAN network, a larger controller can add unnecessary complexity. The MRS Electronics 1.117.900.0000 provides a compact motor-control solution with a fullbridge output, analog input, and CAN communication.

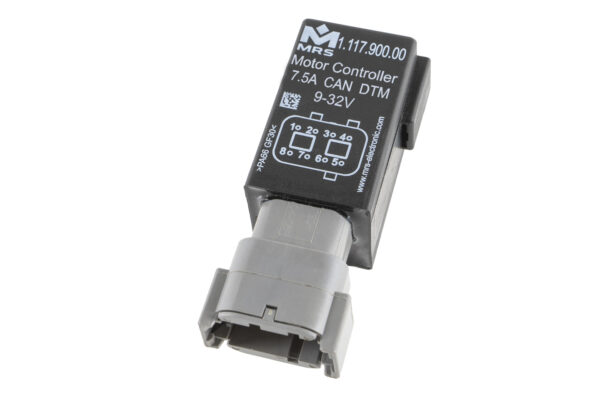

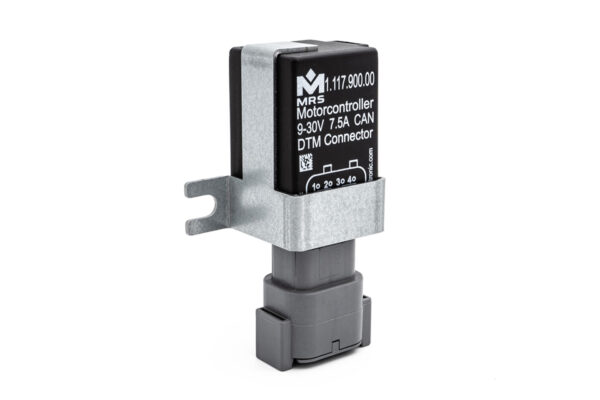

Mrs Electronics 1.117.900.0000, 7.5A CAN DTM, Motor Controller
The 1.117.900.0000 is a compact motor controller designed for applications requiring direct motor control from a CAN-connected control system. It provides one fullbridge output, allowing the connected motor to be controlled through the controller's dedicated output stage.
The controller includes one analog input for receiving an analog sensor or control signal. With two total I/Os, including one input and one output, it provides a simple interface for applications where only a small number of signals need to be processed locally.
Communication with the wider control system is provided through one CAN interface. This allows the motor controller to operate as part of a distributed machine or vehicle control architecture, receiving commands and exchanging operating information over the CAN network.
The fullbridge configuration is suitable for motor-control applications where bidirectional motor operation is required. The controller supports a switching current of 7.5 A, providing the output capability needed for connected motor loads within the specified operating conditions.
Its PA66GF30 housing and protection up to IP6K8 provide a rugged enclosure for demanding applications. The compact I/O and CAN-based design makes the controller suitable for embedded motor-control systems where space, network communication, and environmental protection are important.
Key features
- 7.5 A switching current
- 1 fullbridge output
- 1 analog input
- 1 CAN interface

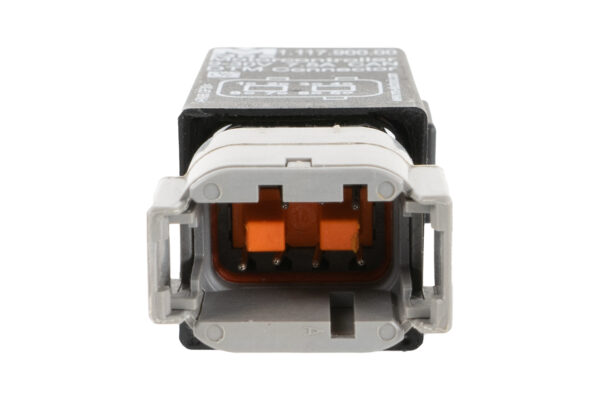

- 8-pin connection
- PA66GF30 housing
- Protection up to IP6K8
- Compact motor-control design
Specifications
| Inputs and Outputs |
|
| Number of pins |
8 |
| In-/Outputs (total) |
2 |
| Inputs (total) |
1 |
| Inputs (analog) |
1 |
| Outputs (total) |
1 |
| Fullbridge |
1 |
| Switching current |
7.5 A |
| Interfaces |
|
| CAN interface(s) |
1 |
| Mechanical Properties |
|
| IP rating |
up to IP6K8 |
| Housing material |
PA66GF30 |
