When a compact machine needs basic sensor monitoring and low-current output control without the size of a larger PLC, a small CAN-based controller can simplify the control architecture. The MRS Electronics Micro PLC CAN 4-ANA DTM provides four analog inputs, four I/O channels, and CAN communication in a compact controller designed for embedded industrial applications.

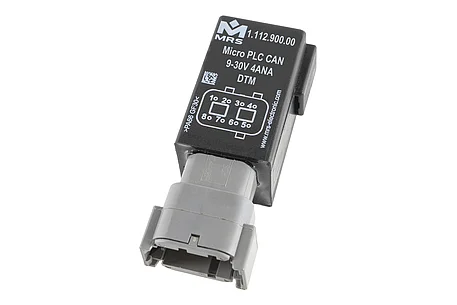

Mrs Electronics Micro PLC CAN 4-ANA DTM Industrial Controller
The Micro PLC CAN 4-ANA DTM combines input monitoring and output control in a small controller. It provides 4 inputs and 4 I/Os with analog input capability, allowing connected sensors and control signals to be handled within the same compact device.
Its four high-side outputs support a switching current of 25 mA, making the controller suitable for low-current control signals and connected electronic loads. The combination of analog inputs and configurable I/O allows the controller to interface with different machine signals without requiring a larger control unit.
For communication with other control components, the controller provides one CAN interface. This allows it to participate in a CAN-based control network and exchange information with other electronic controllers and devices in the system.
Programming is handled through MRS Applics Studio, providing the software environment for configuring and programming the controller. Its compact embedded-controller architecture makes it suitable for applications where local control and I/O processing are required within a distributed CAN network.
The controller is designed for demanding operating conditions, with an operating temperature range of -40 °C to +85 °C and operating voltage of 9-32 V. Its PA66GF30 housing and protection up to IP6K8 provide a rugged platform for embedded industrial installations where space, environmental protection, and CAN connectivity are important.
Key features
- 4 inputs and 4 I/Os with analog input capability
- 4 high-side output channels
- 25 mA switching current
- 1 CAN interface
- MRS Applics Studio programming software
- PA66GF30 housing
- Protection up to IP6K8
- -40 °C to +85 °C operating temperature range
Specifications
| Inputs & Outputs |
|
| Number of pins |
8 |
| Inputs (total) |
4 |
| In-/Outputs (total) |
4 |
| I/Os (total) |
4 |
| I/Os (Input analog) |
4 |
| Output type high side |
4 |
| Switching current |
25 mA |
| Interfaces |
|
| CAN interface(s) |
1 |
| Programming |
|
| Programming software |
MRS Applics Studio |
| Mechanical properties |
|
| IP rating |
up to IP6K8 |
| Housing material |
PA66GF30 |
| General information |
|
| Temperature range |
-40 °C to +85 °C |
| Operating voltage |
9-32 V |
| Current consumption |
35 mA |
| Quiescent current (12V) |
20 µA |
| Quiescent current (24V) |
20 µA |
| Processor architecture |
8 bit |
