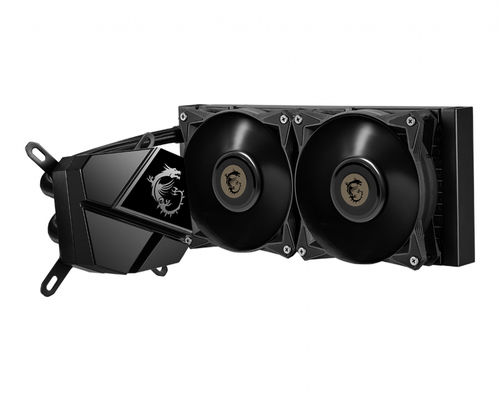

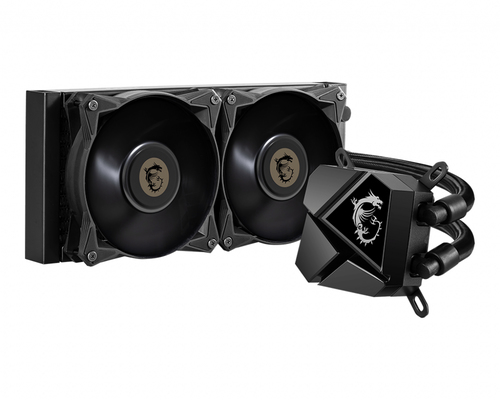

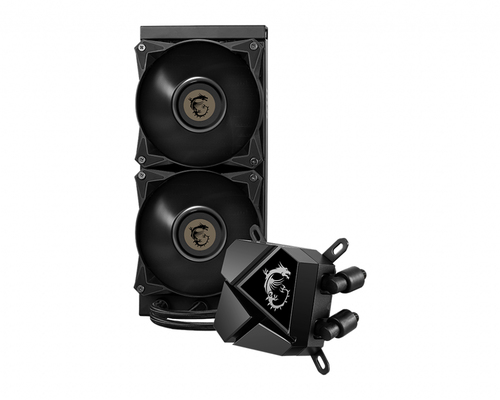

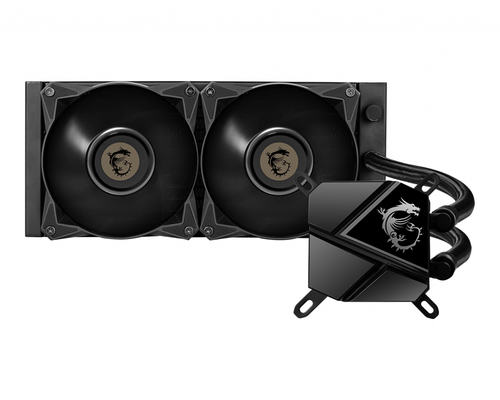

REBELLIOUS AND DISCREET
The MAG CORELIQUID P Series liquid coolers' water block is not the typical design you frequently see in the market today. It is modest and discreet, but with great quality. It is split into four pieces of unique diamond-cut areas, with three constructed in piano black and the last one featuring our proud MSI logo emblem.
LGA 1700 COMPATIBLE
The MAG CORELIQUID P Series liquid cooler provides out of box support for LGA 1700.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
EXTENSIVE COMPATIBILITY
Stylish yet built for flexibility, the MAG CORELIQUID P Series has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
Specifications
| Performance |
| Fan's mean time to failure (MTTF) |
70000 h |
| Pump's mean time to failure (MTTF) |
100000 h |
| Fan static pressure |
2.39 mmH2O |
| Pump motor speed |
4200 RPM |
| Fan bearing technology |
Double ball bearing |
| Fan noise level (max) |
34.3 dB |
| Fan noise level (min) |
14.3 dB |
| Bearing type |
Dual ball bearing |
| Pulse-width modulation (PWM) support |
Yes |
| Maximum airflow |
78.73 cfm |
| Noise level |
14.3 dB |
| Noise level (high speed) |
34.3 dB |
| Noise level (low speed) |
14.3 dB |
| Rotational speed (max) |
2000 RPM |
| Rotational speed (min) |
500 RPM |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Fan diameter |
12 cm |
| Type |
All-in-one liquid cooler |
| Suitable location |
Processor |
| Design |
| Fan connector |
4-pin |
| Illumination LED |
No |
| Number of fans |
2 fan(s) |
| Radiator material |
Aluminum |
| Product colour |
Black |
| Power |
| Fan current |
0.15 A |
| Fan voltage |
12 V |
| Pump current |
0.34 mA |
| Pump voltage |
12 V |
| Pump power consumption |
4.08 W |
| Fan power consumption |
1.8 W |
| Weight & dimensions |
| Fan 2 dimensions (W x D x H) |
120 x 120 x 25 mm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Waterblock height |
5.2 cm |
| Waterblock depth |
7.05 cm |
| Waterblock width |
7.05 cm |
| Tube length |
40 cm |
| Radiator height |
2.7 cm |
| Radiator depth |
12 cm |
| Radiator width |
27.6 cm |
| Other features |
| Noise level |
14.3 dB |
