Specification Table:
|
Marketing Name |

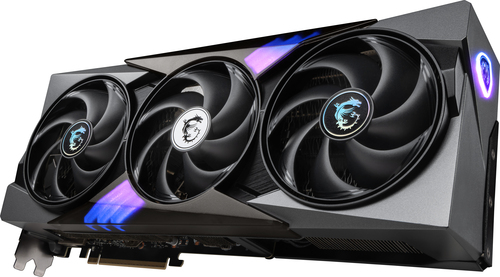

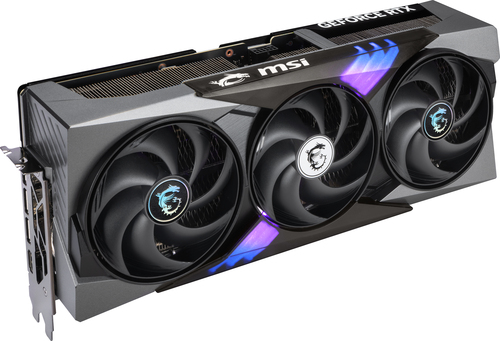

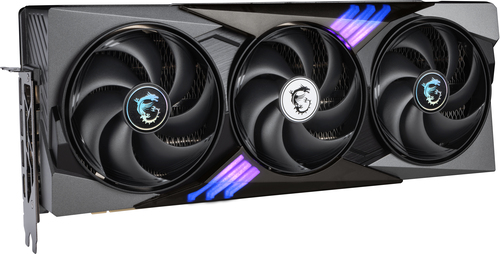

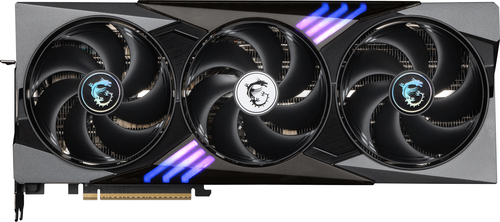

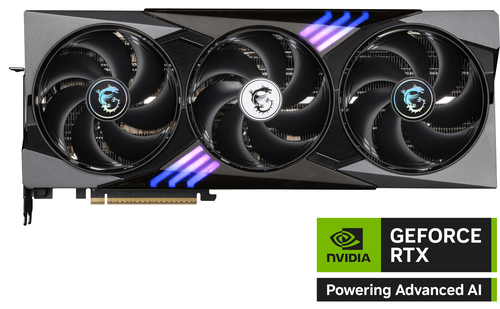

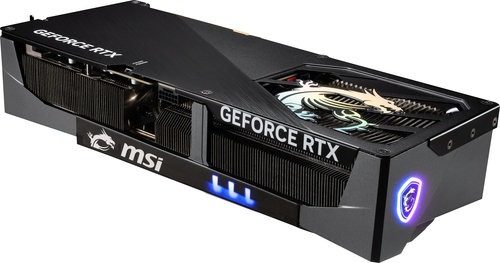

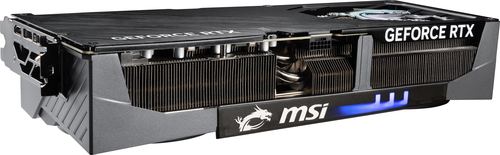

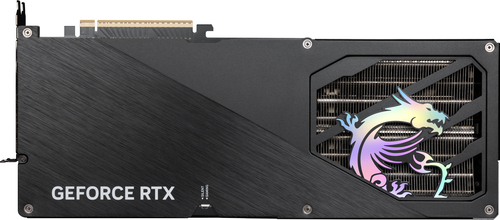

GeForce RTX 5090 32G GAMING TRIO OC |
|
Model Name |
G5090-32GTC |
|
Graphics Processing Unit |
NVIDIA GeForce RTX 5090 |
|
Interface |
PCI Express Gen 5.0 |
|
Core Clocks |
Base: 2017 MHz, Boost: 2497 MHz |
|
CUDA Cores |
21760 Units |
|
Memory Speed |
28 Gbps |
|
Memory |
32GB GDDR7 |
|
Memory Bus |
512-bit |
|
Memory Bandwidth |
1792 GB/s |
|
Effective Memory Clock |
28000 MHz |
|
GPU Model |
GB202-300 |
|
Tensor Cores |
680 |
|
Ray Tracing Cores |
170 |
|
Output Ports |

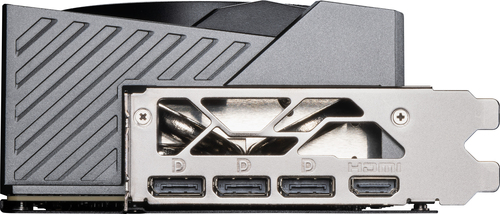

3x DisplayPort 2.1b, 1x HDMI 2.1b |
|
Digital Max Resolution |
7680 x 4320 (8K) |
|
Maximum Displays |
4 |
|
HDCP Support |
Yes |
|
G-SYNC Support |
Yes |
|
VR Ready |
Yes |
|
AI Acceleration |
Yes, via Tensor Cores |
|
Security |
HDCP Support |
|
Power Connectors |
1x 16-pin PCIe 5.0 - 12v-2x6 |
|
Recommended PSU |
1000 W |
|
Power Consumption |
575 W |
|
Card Dimensions (mm) |
359 x 149 x 70 mm |
|
Colour |
Black and Anthracite |
|
Lighting |
RGB |
|
Cooling |
Triple Fan |
|
Expansion Slots Required |
3.5 Slots |
|
DirectX Version Support |
12 Ultimate |
|
OpenGL Version Support |
4.6 |
|
Manufacturing Process |
5nm |
|
Slot Type |
PCIe 5.0 |
|
Component For |
PC |
|
Software Support |
NVIDIA Studio, DLSS 4, PhysX, CUDA |
|
Other Technologies |
NVIDIA Blackwell Architecture, Real-Time Ray Tracing |
