| Processor |
| Supported processor sockets |
Socket AM4 |
| Maximum number of SMP processors |
1 |
| Compatible processor series |
AMD Ryzen 3000 Series |
| Processor socket |
Socket AM4 |
| Processor manufacturer |
AMD |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
128 GB |
| Supported memory clock speeds |
1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4533,4600,4733,5100 MHz |
| ECC сompatibility |
ECC & Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR4-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 10 |
| Supported storage drive interfaces |
SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| Maximum resolution |
4096 x 2160 pixels |
| Parallel processing technology support |
2-Way CrossFireX |
| Maximum graphics card memory |
16000 MB |
| Internal I/O |
| RGB LED pin header |
Yes |
| 12V power connector |
Yes |
| TPM connector |
Yes |
| Chassis intrusion connector |
Yes |
| Number of chassis fan connectors |
6 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of Parallel ATA connectors |
0 |
| Number of SATA II connectors |
0 |
| Number of SATA III connectors |
6 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |

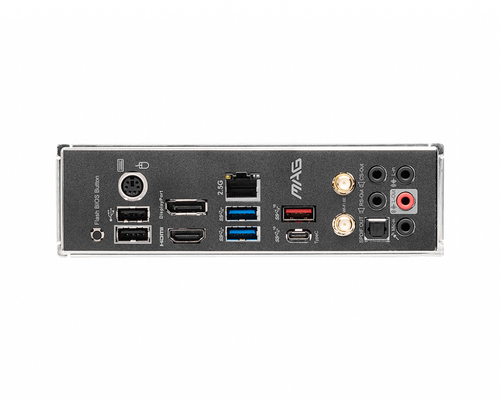

| Rear panel I/O ports |
| Digital audio optical out |
1 |
| S/PDIF out port |
Yes |
| DisplayPorts quantity |
1 |
| DVI-D ports quantity |
0 |
| HDMI ports quantity |
1 |
| Firewire (IEEE 1394) ports |
0 |
| VGA (D-Sub) ports quantity |
0 |
| PS/2 ports quantity |
1 |
| eSATA ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| Network |
| Wi-Fi |
No |
| LAN controller |
Realtek RTL8111H, Realtek RTL8125B |
| Ethernet interface type |
2.5 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 10 x64 |
| Number of mounting holes |
9 |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC1200 |
| Motherboard chipset |
AMD B550 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
2 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
2 |
| BIOS |
| Clear CMOS jumper |
Yes |
| Weight & dimensions |
| Depth |
244 mm |
| Width |
305 mm |
| Packaging content |
| Drivers included |
Yes |
| Cables included |
SATA |
| Other features |
| Maximum internal memory |
128 GB |
