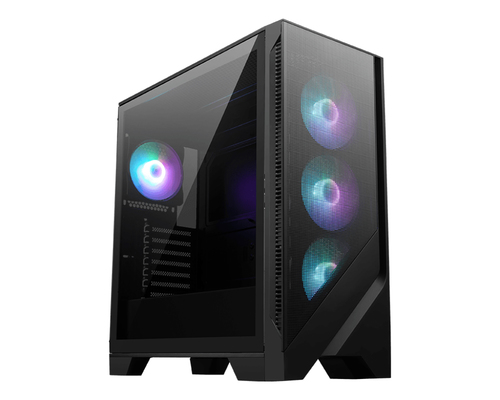

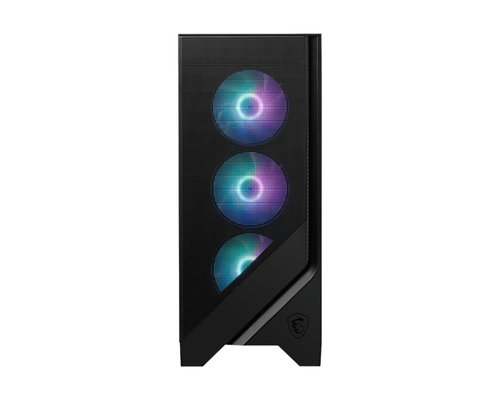

The MSI MAG Forge 320R Airflow is a Mid‑Tower gaming PC case designed to balance airflow, style, and compactness. It supports ATX, Micro‑ATX, and Mini‑ITX motherboards. The case includes 4 pre-installed 120 mm ARGB fans (3 front + 1 rear) for strong cooling and lighting effects. Featuring a mesh front panel for optimized ventilation and a tempered glass side panel to showcase your components, it also has magnetic dust filters on top for easy cleaning. It supports up to 11 system fans, GPUs up to 390 mm, and CPU coolers up to 160 mm. Radiator support includes front (120/140/240 mm), top (120/240/280/360 mm), and rear (120 mm). The I/O panel offers 2 × USB 3.2 Gen 1 Type‑A, audio in/out, and an LED switch.
UNITE AS ONE
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
MESH CERTIFIED MAKES IT WORK
The front mesh panel allows air to flow into the case easily without obstruction, providing the best system cooling performance. The micro-atx chassis provide small footprint but big perfromance.
HEAT DISSIPATION
You don't need to worry about system cooling with the help of the gaming cases.
HARDWARE COMPATIBILITY
The gaming cases offers extensive support for the installation of your hardware components.
EASY TO INSTALL
The gaming case has many features that make the installation process all the easier.
FANCY APPEARANCE
Build and display the coolest PC with controllable ARGB lighting.
Specifications
| Design |
| LED indicators |
Yes |
| On/off button |
Yes |
| Reset button |
Yes |
| Anti-dust filter |
Yes |
| Tempered glass panel(s) |
Yes |
| Illumination location |
Case fans |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Suitable for |
Gaming |
| Side window |
Yes |
| Number of 2.5" bays |
2 |
| Number of 3.5" bays |
1 |
| Number of 5.25" bays |
0 |
| Supported motherboard form factors |
micro ATX, Mini-ITX |
| Product colour |
Black, Transparent |
| Material |
Mesh, Plastic |
| Type |
PC |
| Form factor |
Micro Tower |
| Power supply |
| Power supply location |
Bottom |
| Power supply included |
No |
| Ports & interfaces |
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
0 |
| Cooling |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans installed |
1x 120 mm |
| Side fans diameters supported |
120 mm |
| Number of side fans supported (max) |
2 |
| Front fans diameters supported |
120,140 mm |
| Number of front fans supported (max) |
3 |
| Front fans installed |
3x 120 mm |
| Storage |
| HDD/SSD combo cage |
Yes |
| Supported HDD sizes |
2.5,3.5" |
| Weight & dimensions |
| Weight |
7.05 kg |
| Height |
498 mm |
| Depth |
210 mm |
| Width |
472.5 mm |
| Packaging data |
| Package weight |
8.35 kg |
