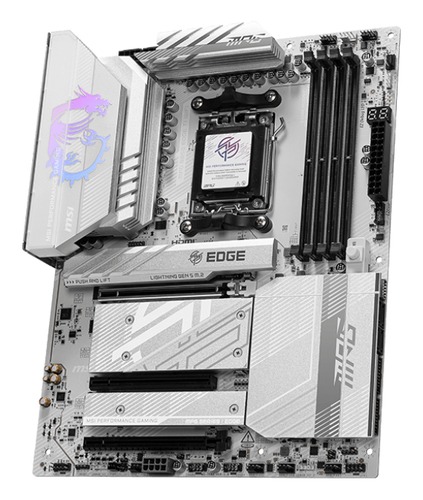

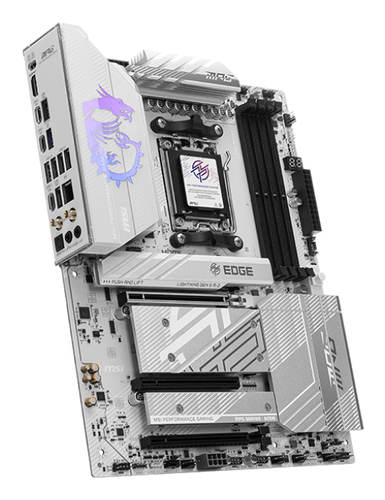

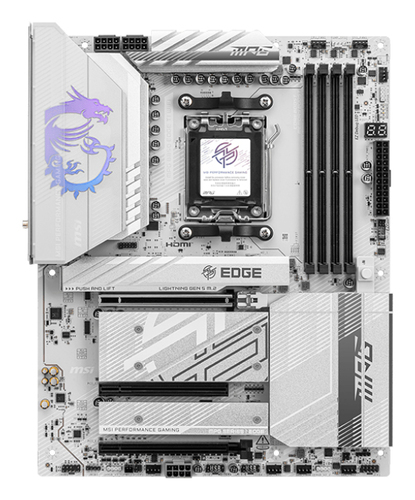

MPG B850 EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme B850 ATX motherboard for AMD Ryzen™ 9000 series processors.
MSI's premium MPG series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
EZ PCIe Release
An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.
14+2+1 DUET RAIL POWER SYSTEM
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 Duet Rail Power System. Combining dual power connectors and 80A Smart Power Stage, MPG B850 EDGE TI WIFI is ready for the challenge of high-end processors.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
Specifications
| Processor |
| Maximum internal memory supported by processor |
256 GB |
| Supported processor sockets |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket |
Socket AM5 |
| Processor manufacturer |
AMD |
| Memory |
| Maximum internal memory |
256 GB |
| Supported memory clock speed (max) |
8400 MHz |
| Supported memory clock speeds |
4800,5600,8400 MHz |
| ECC сompatibility |
Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 10 |
| RAID support |
Yes |
| Number of HDDs supported |
4 |
| Number of storage drives supported |
8 |
| Supported storage drive interfaces |
M.2, Micro SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| On-board graphics card |
No |
| Internal I/O |
| Number of RGB LED pin headers |
3 |
| RGB LED pin header |
Yes |
| Number of water pump connectors |
1 |
| Number of CPU fan connectors |
6 |
| CPU fan connector |
Yes |
| Total number of SATA connectors |
4 |
| Number of SATA Express connectors |
0 |
| Number of SATA connectors |
0 |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
4 |
| USB 2.0 connectors |
4 |

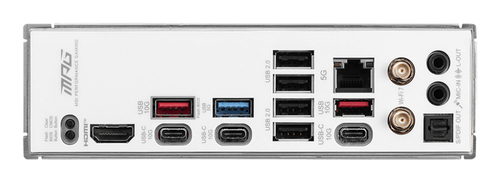

| Rear panel I/O ports |
| DVI-D ports quantity |
0 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 2.0 ports quantity |
4 |
| Network |
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 11 x64 |
| Product colour |
White |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC4080 |
| Motherboard chipset |
AMD B850 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Expansion slots |
| 4th M.2 highest PCI Express generation |
4.0 |
| 4th M.2 largest key size |
2280 |
| 3rd M.2 highest PCI Express generation |
4.0 |
| 3rd M.2 largest key size |
2280 |
| 2nd M.2 highest PCI Express generation |
5.0 |
| 2nd M.2 largest key size |
2280 |
| 1st M.2 highest PCI Express generation |
5.0 |
| 1st M.2 largest key size |
22110 |
| Number of M.2 (M) slots |
4 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Weight & dimensions |
| Depth |
243.8 mm |
| Width |
304.8 mm |
| Other features |
| Maximum internal memory |
256 GB |
| mSATA ports quantity |
0 |
